Main Relay (Computer/Fuel System): Locations

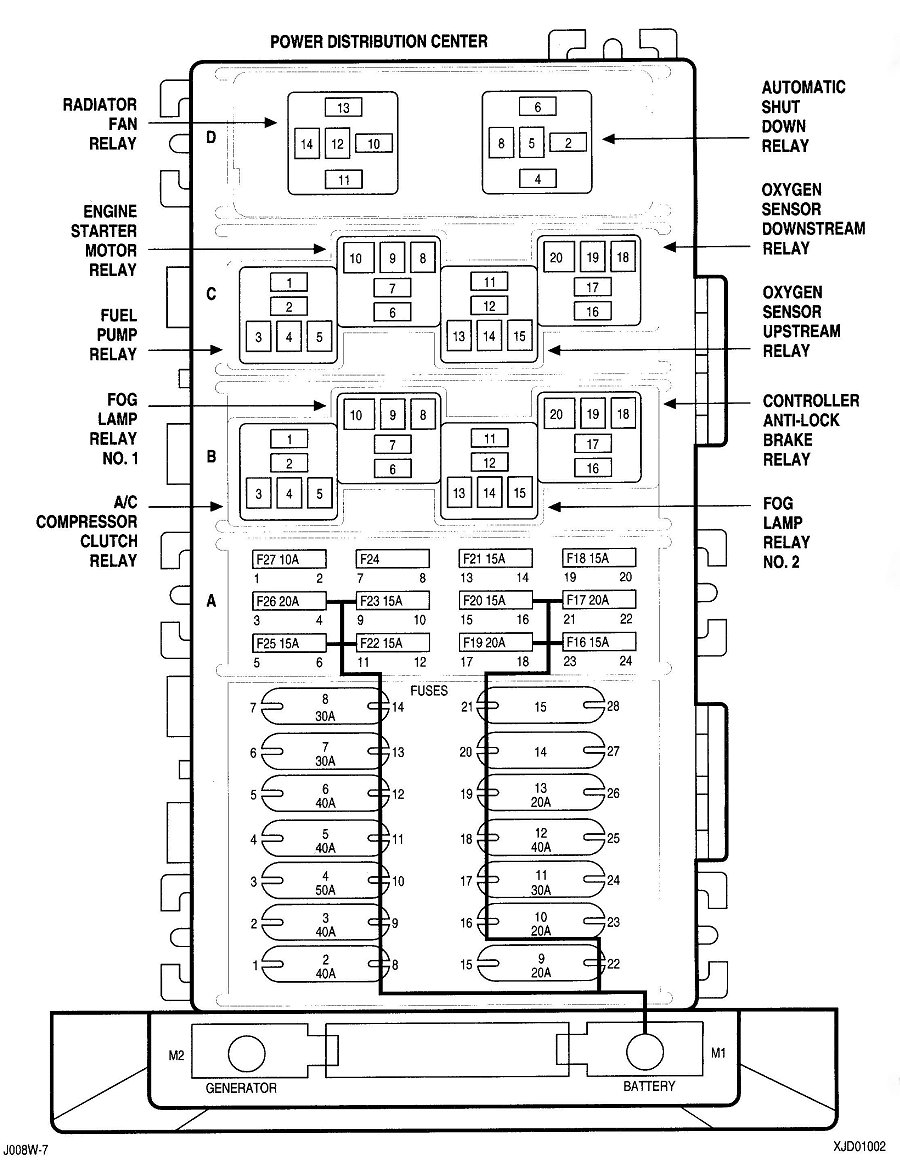

Automatic Shut Down Relay is located in the Power Distribution Center (PDC).
