Rear Power Window Switch

Remove rear power window switch from door trim panel. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION. With switch in specified position, check switch continuity.

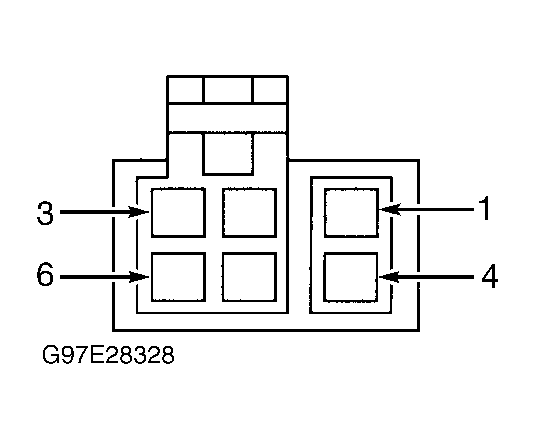

Continuity should exist between terminals being tested. See REAR POWER WINDOW SWITCH CONTINUITY table. See Figure . If continuity is as specified, go to POWER WINDOW MOTOR . If continuity is not as specified, replace faulty switch.

DRIVER DOOR MODULE POWER WINDOW SWITCH CONTINUITY

Switch Position

Check Continuity Between Terminals No.

Power Windows ⁽¹⁾

Off

1 & 8; 2 & 8; 3 & 8; 4 & 8; 5 & 8; 6 & 8; 8 & 10; 8 & 12

Right Rear Down

1 & 9; 2 & 8

Right Rear Up

2 & 9; 1 & 8

Right Front Up

3 & 9; 6 & 8

Left Rear Up

4 & 9; 8 & 10

Left Front Up

5 & 9; 8 & 12

Right Front Down

6 & 9; 3 & 8

Left Rear Down

9 & 10; 4 & 8

Left Front Down

9 & 1; 5 & 8

Lock-Out Switch ⁽²⁾

⁽¹⁾	Check continuity at Driver Door Module (DDM) 12-pin cavity. See Figure .

⁽²⁾	Check for continuity between terminal No. 8 at DDM 8-pin cavity and terminal No. 9 at DDM 12-pin cavity. See Figure and Figure . With lockout switch off (up position), continuity should exist. With lockout switch on (down position), continuity should not exist.

PASSENGER DOOR MODULE POWER WINDOW SWITCH CONTINUITY

Switch Position

⁽¹⁾ Check Continuity Between Terminals No.

Off

2 & 3; 4 & 9

2 & 3; 9 & 10

Down

2 & 10; 4 & 9

⁽¹⁾	Check continuity at Passenger Door Module (PDM) 12-pin Blue connector. See Figure .

REAR POWER WINDOW SWITCH CONTINUITY

Switch Position	Check Continuity Between Terminals No.
Off	1 & 4; 2 & 5
Up	1 & 6; 2 & 5
Down	1 & 4; 5 & 6
