Circuit Protection Devices

CIRCUIT PROTECTION DEVICE

Component Component Location

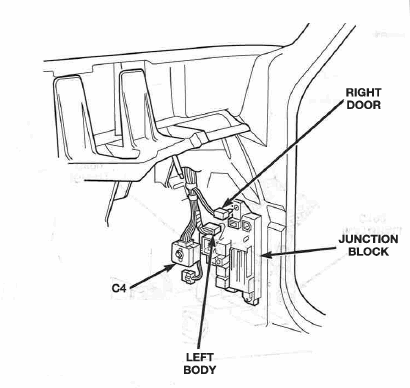

Junction Block Behind right kick panel. See Figure.

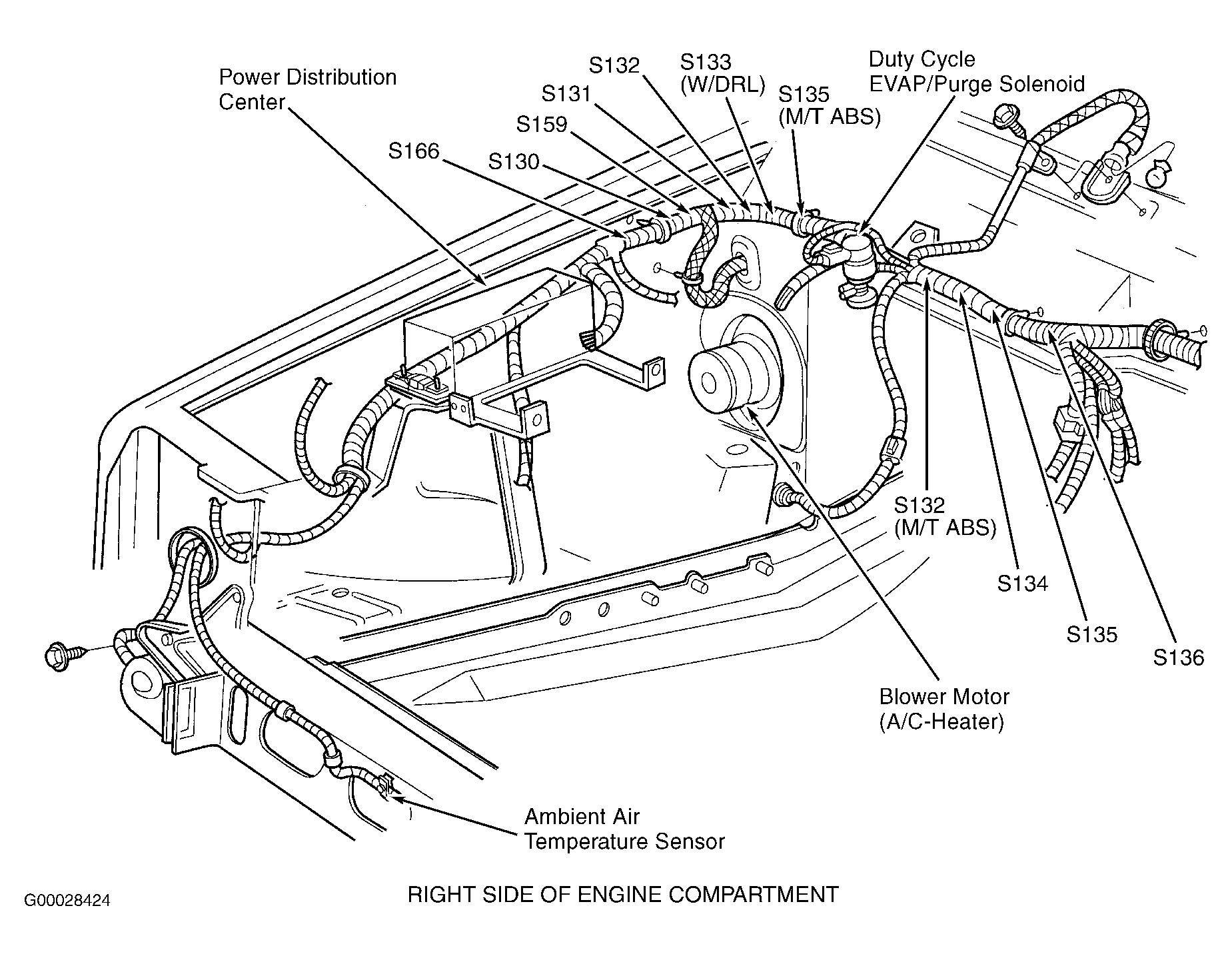

Power Distribution Center On right side of engine compartment, on inner fender panel. See Figure.
Power Seat Circuit Breaker On junction block.
Power Window Circuit Breaker On junction block.
Windshield Wiper Circuit Breaker On junction block.
