Jeep Introduction

2000 MODEL COVERAGE

MODEL

BODY CODE

ENGINE

ENGINE ID ⁽¹⁾

FUEL SYSTEM

IGNITION SYSTEM

Cherokee

2.5L

SFI

Hall Effect

.....

4.0L

SFI

DIS

Grand Cherokee

4.0L

SFI

DIS

.....

4.7L

SFI

DIS

Wrangler

2.5L

SFI

Hall Effect

.....

4.0L

SFI

DIS

⁽¹⁾	Engine is identified by 8th character of Vehicle Identification Number (VIN).

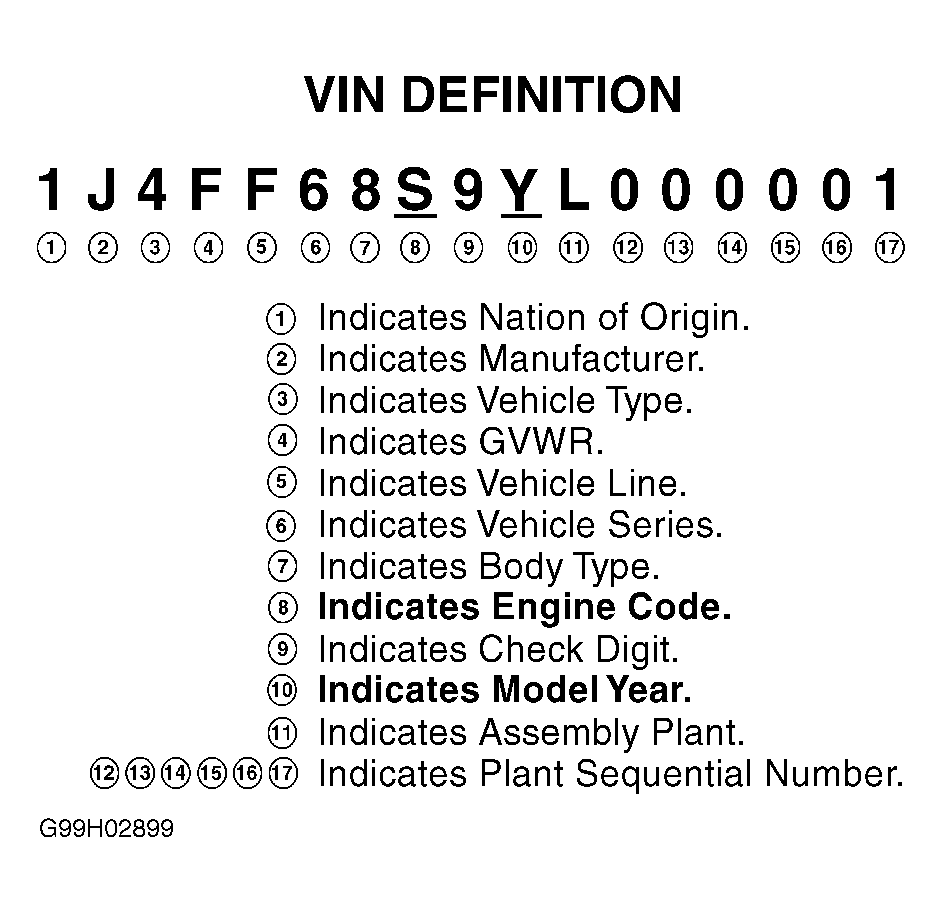

Fig 1: VIN Definition
