Body Control Module

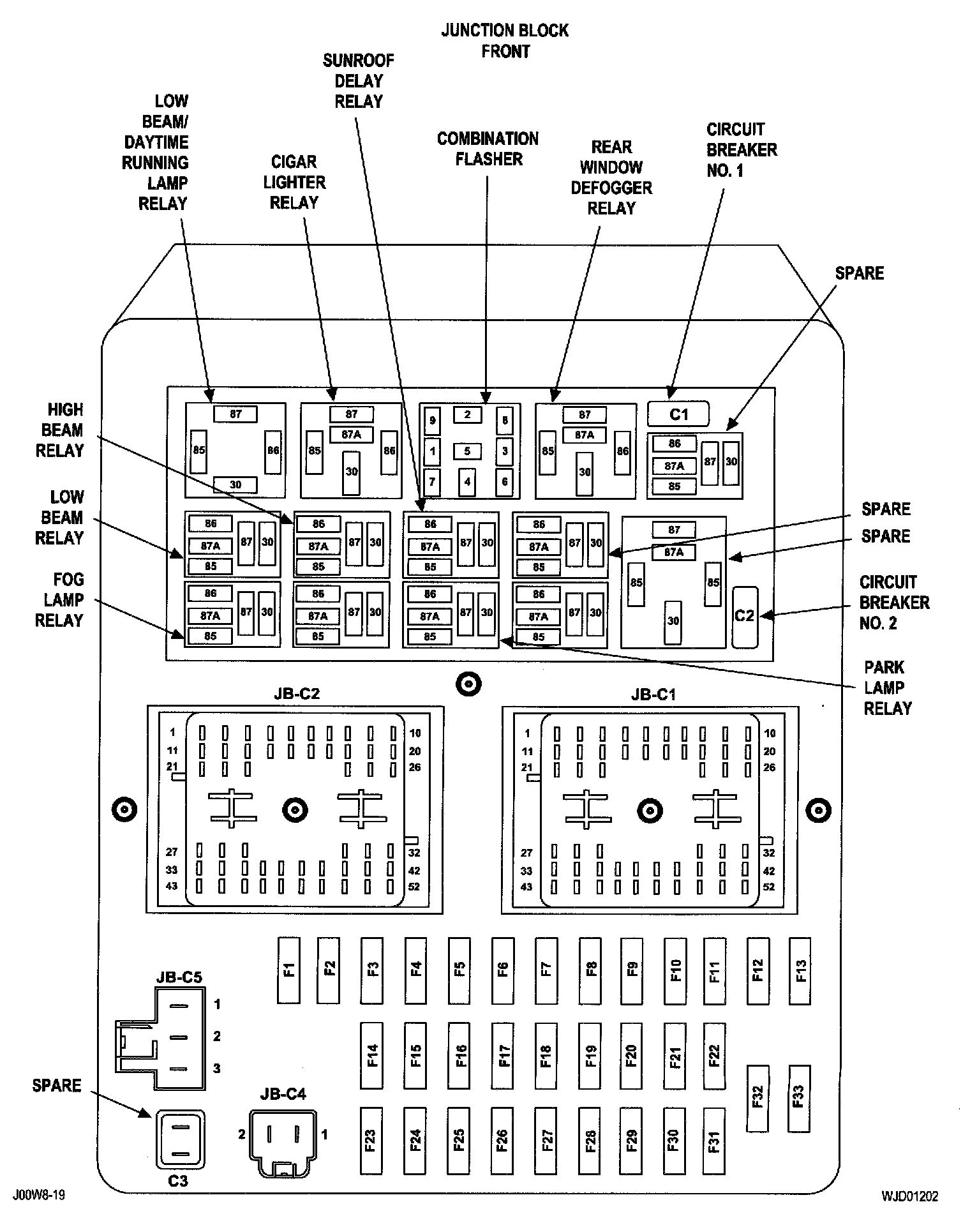

8W-12-2:

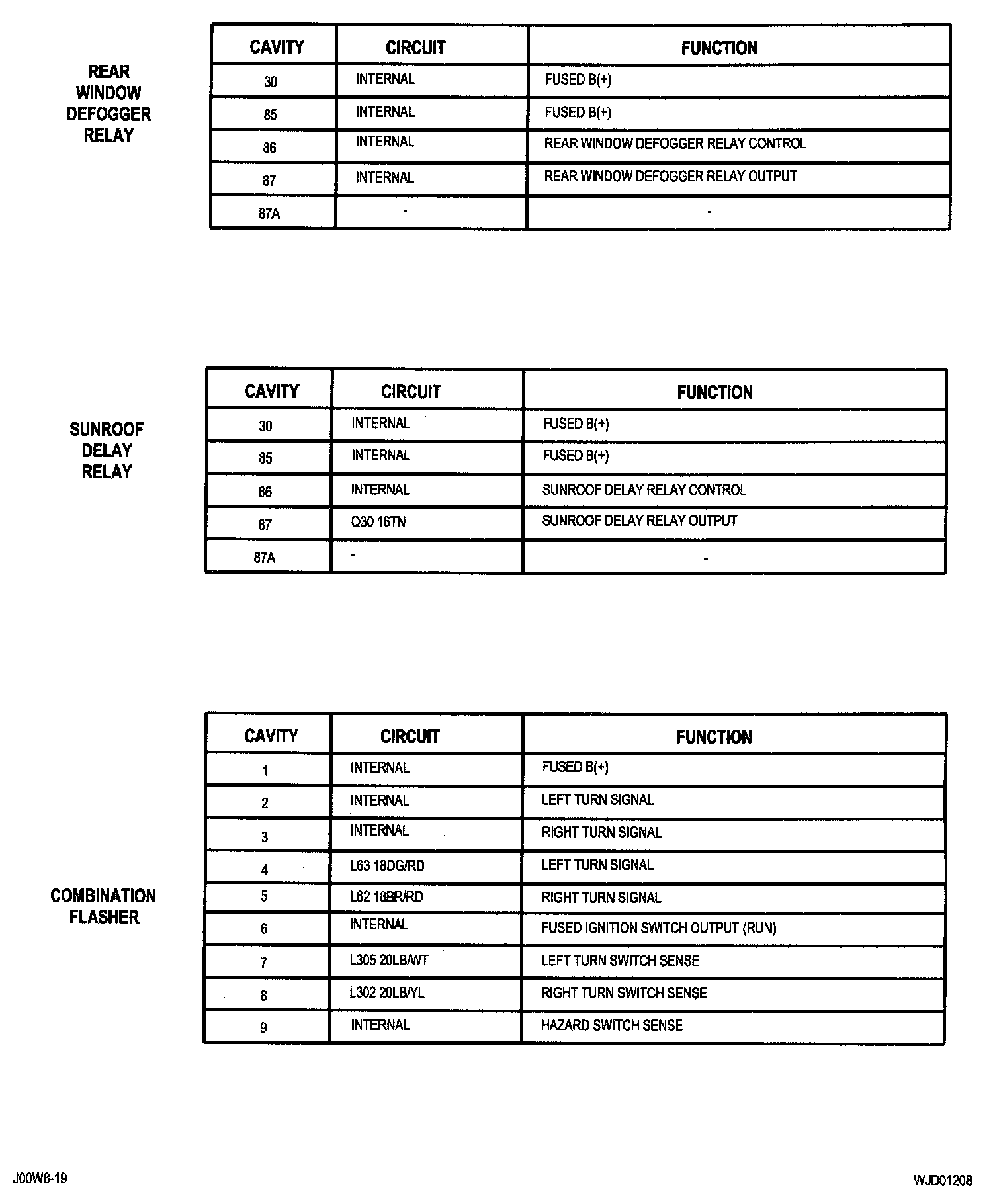

8w-12-3:

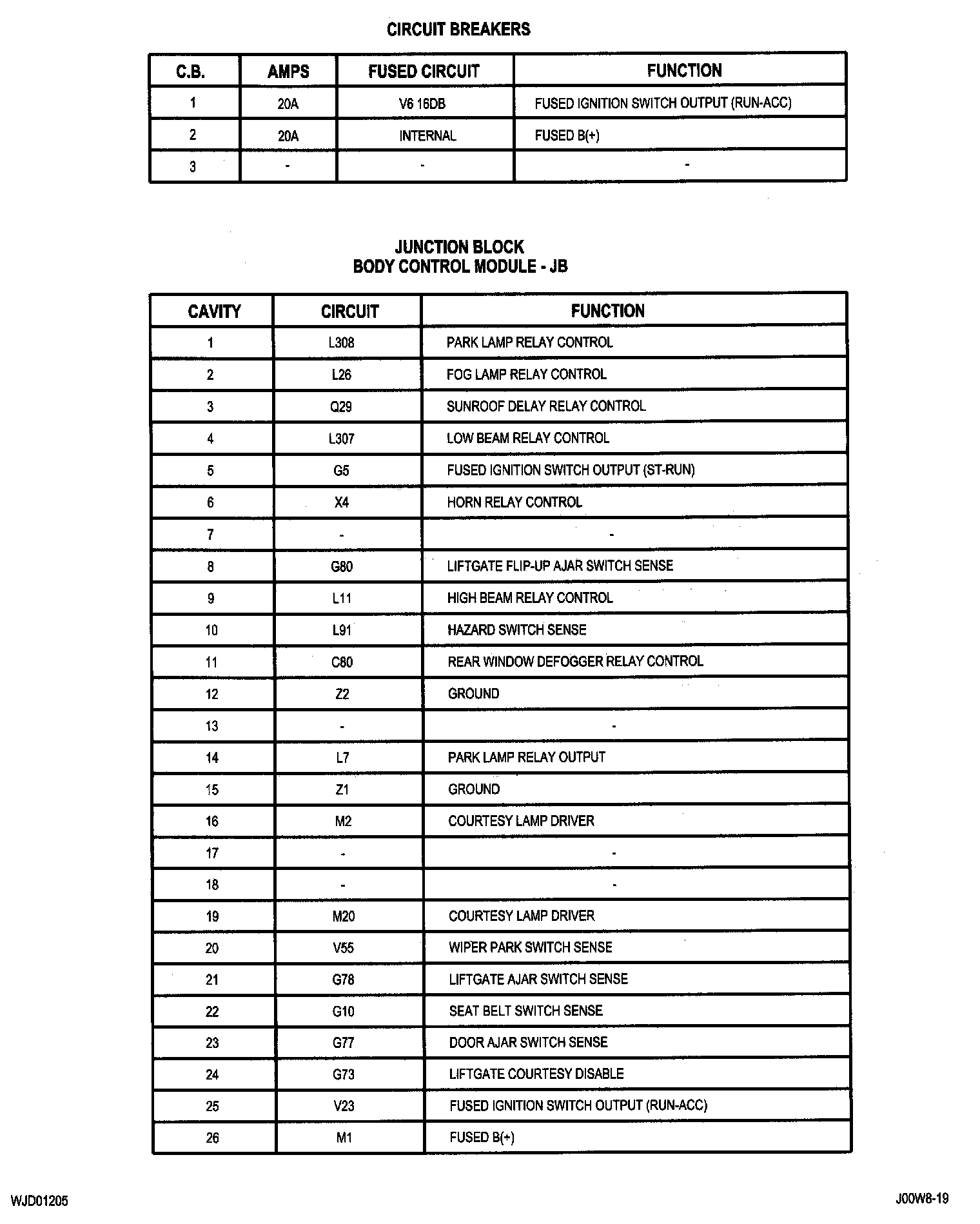

8w-12-4:

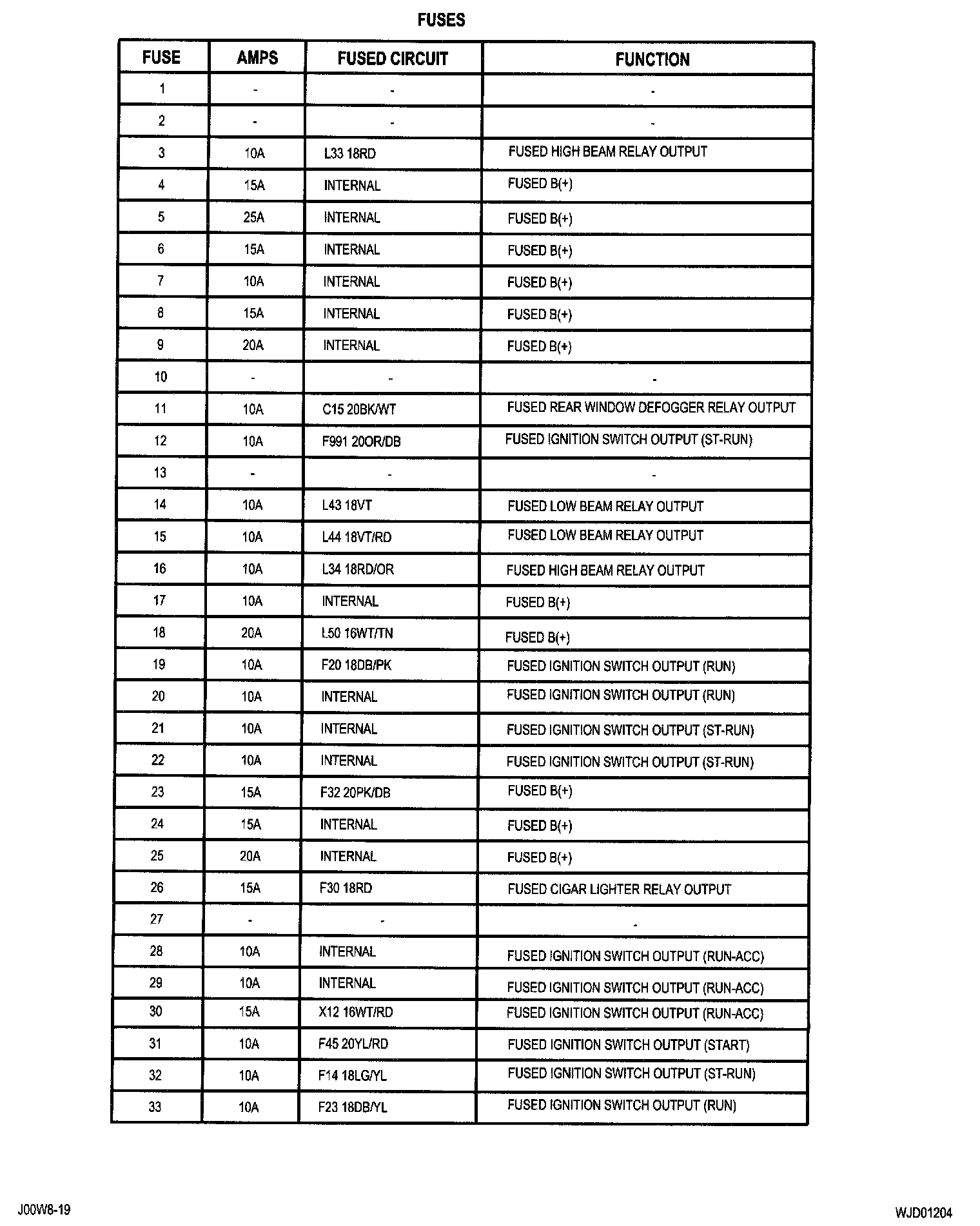

8w-12-5:

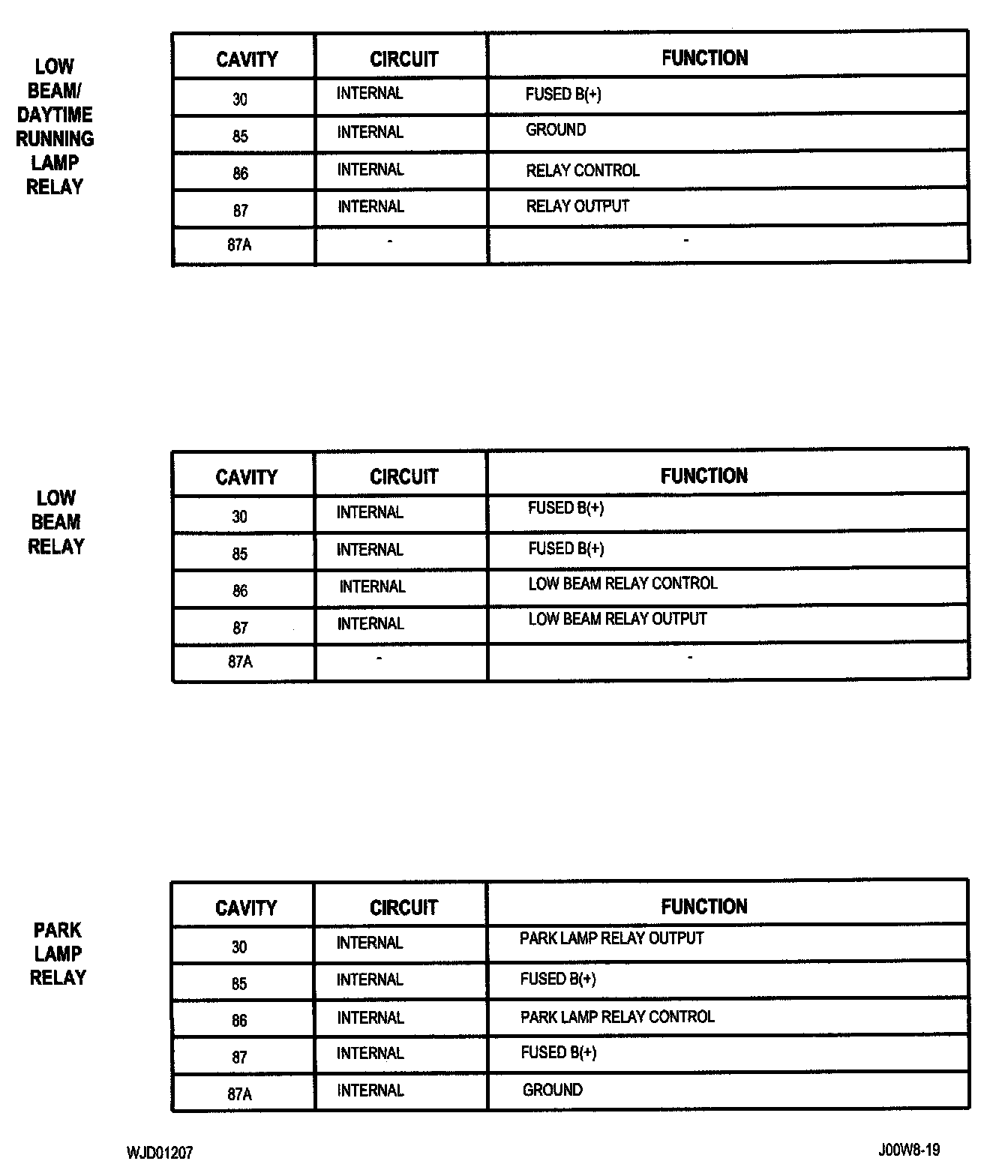

8w-12-6:

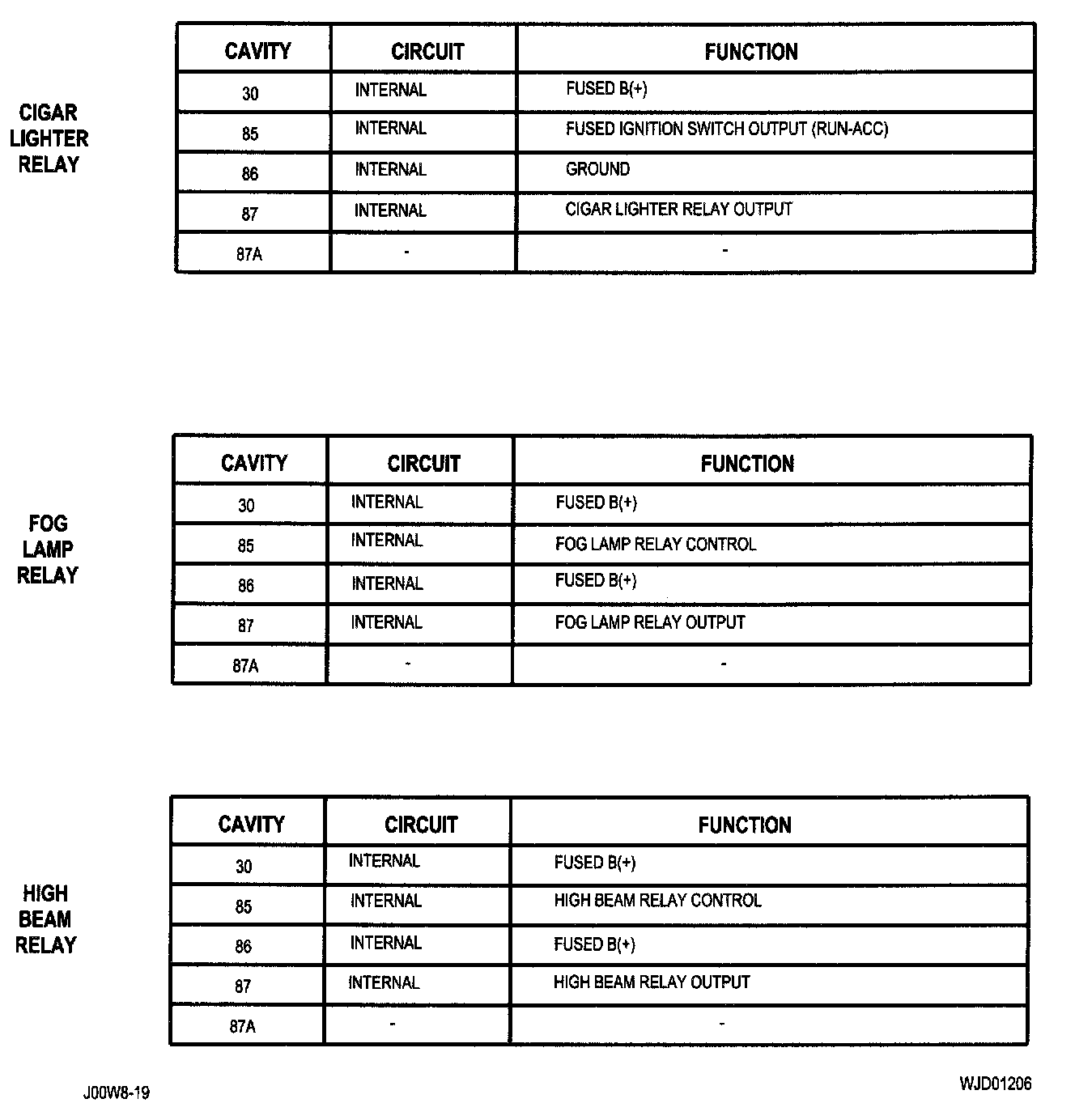

8w-12-7:
8w-12-8:

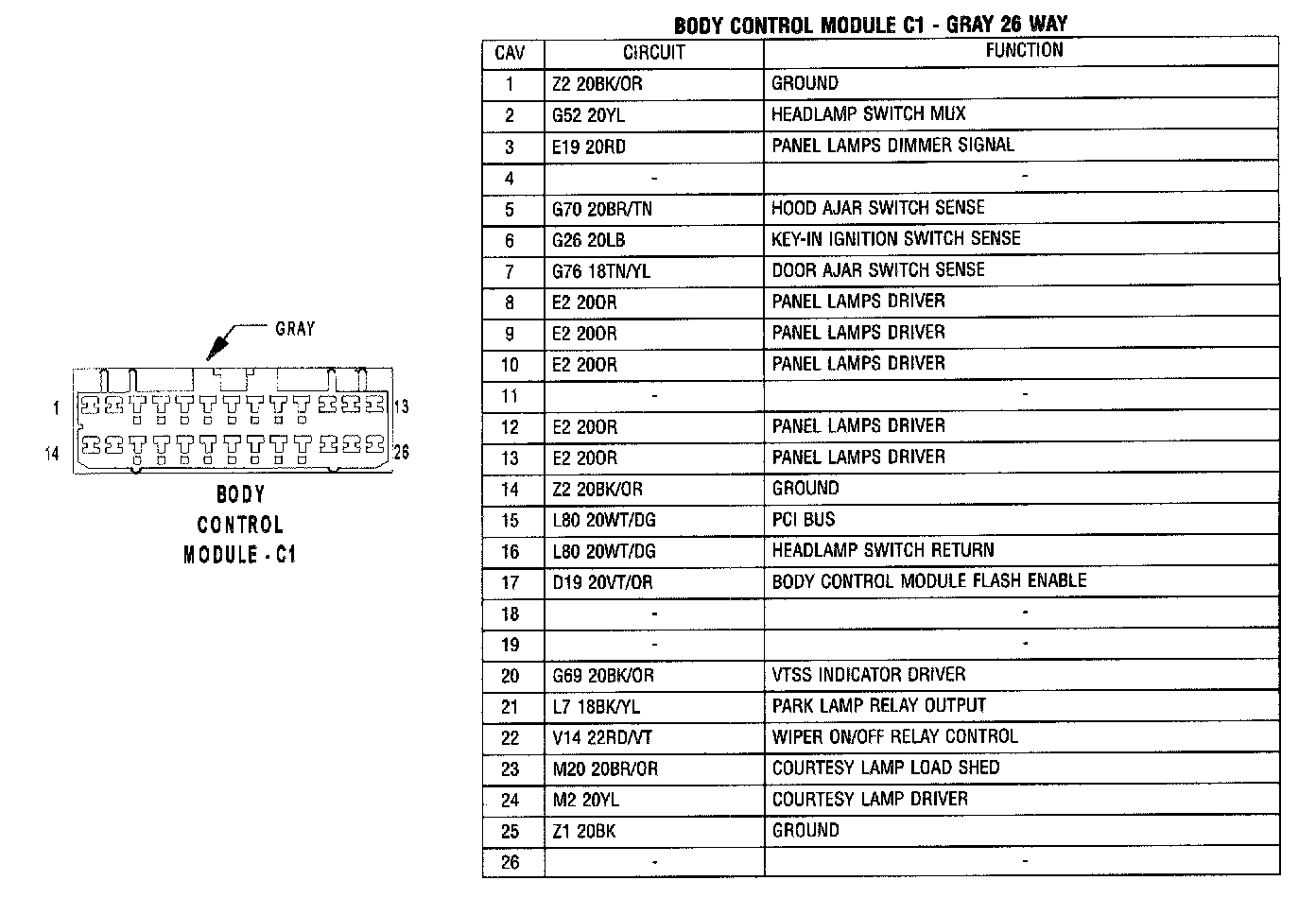

Body Control Module - C1:

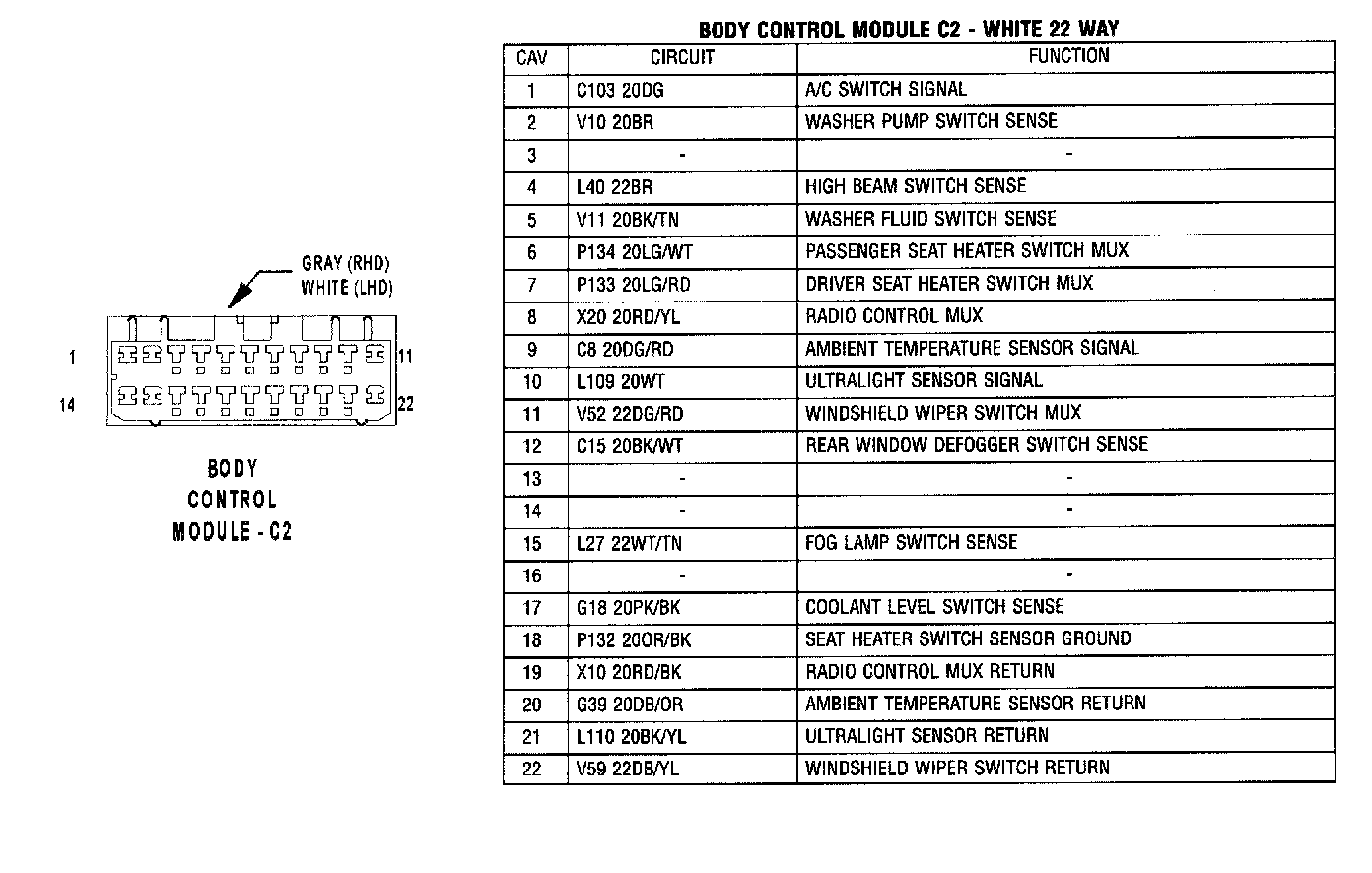

Body Control Module - C2:
