Intake Manifold

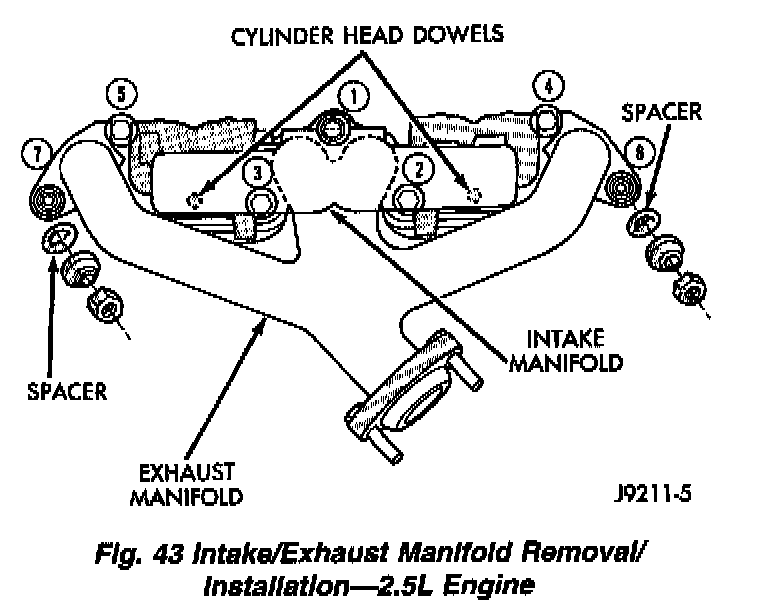

Tighten the fasteners in sequence to the specified torque.
- Fastener No. 1: Tighten to 41 Nm (30 ft. lbs.) torque.
- Fasteners Nos. 2 - 5: Tighten to 31 Nm (23 ft. lbs.) torque.
- Fasteners Nos. 6 - 7: Tighten to 23 Nm (17 ft. lbs.) torque.
