Power Distribution Center Support Bracket Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the Power Distribution Center (PDC) from the PDC bracket.

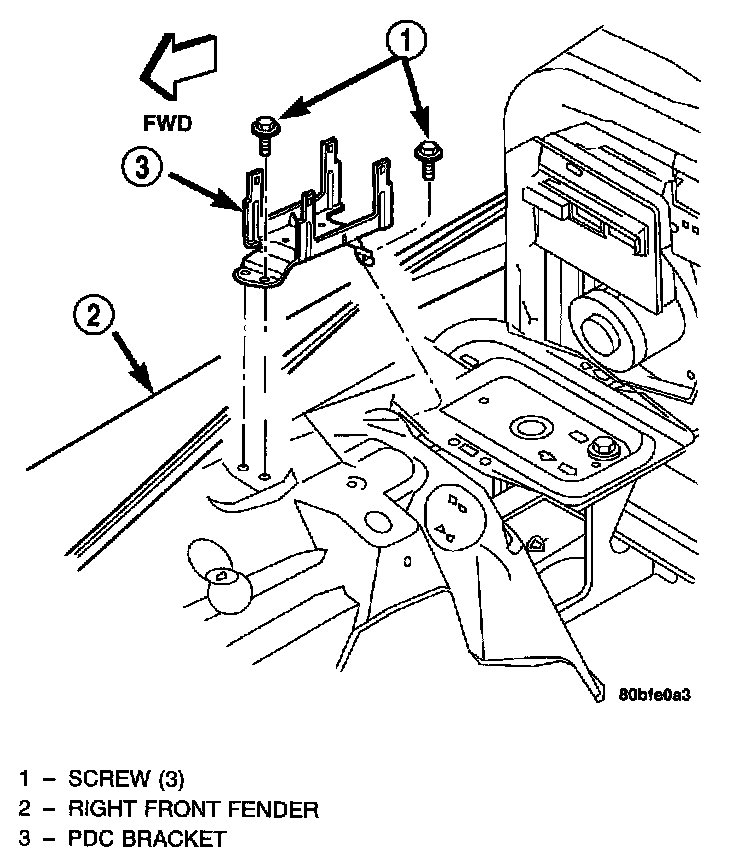

PDC Bracket Remove/Install:

3. Remove the three screws that secure the PDC bracket to the right front inner fender.
4. Remove the PDC bracket from the right front inner fender.

INSTALLATION
1. Position the PDC bracket onto the right front inner fender.
2. Install and tighten the three screws that secure the PDC mounting bracket to the right front inner fender. Tighten the screws to 3.9 Nm (35 in. lbs.).
3. Install the PDC onto the PDC bracket.
4. Reconnect the battery negative cable.
