Fuel Level Sensor: Installation

Install fuel level sensor on channels on fuel pump module. Slide fuel level sensor onto fuel pump module until fuel level sensor snaps into place. Ensure locking tab is fully seated. Connect electrical connector at sending unit. Reinstall fuel pump module and fuel tank. To complete installation, reverse removal procedure.

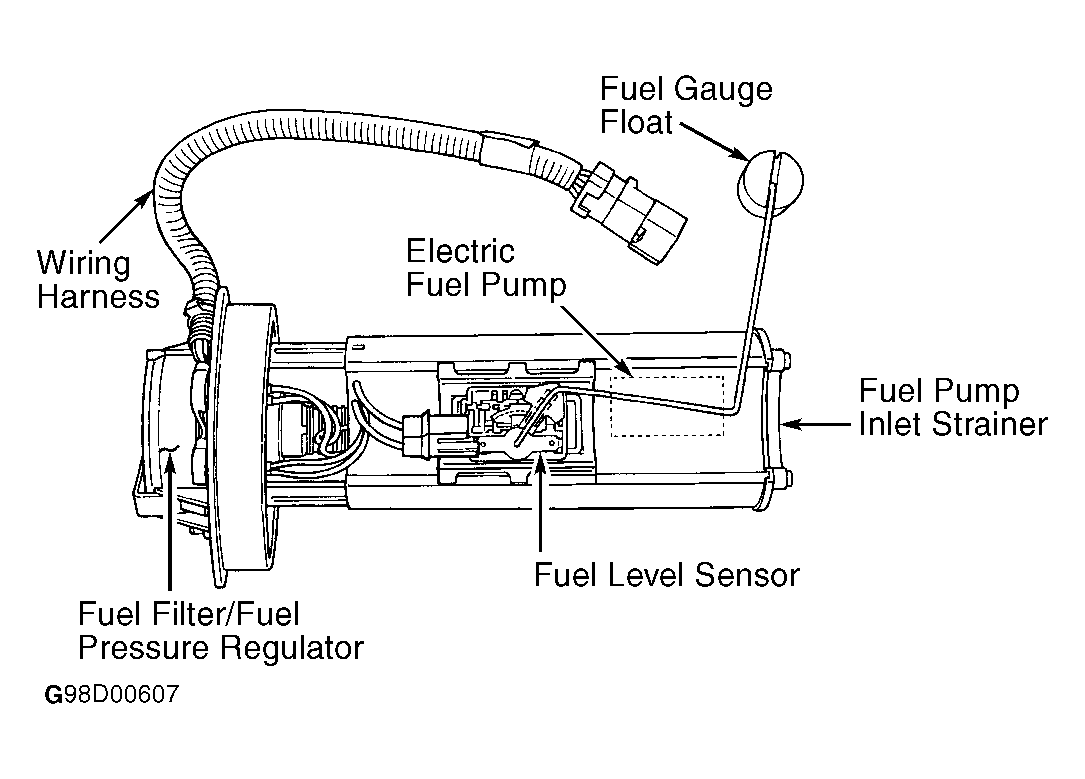

Fig 1: Identifying Fuel Pump Module Components (Cherokee & Wrangler)

Courtesy of DAIMLERCHRYSLER CORPORATION

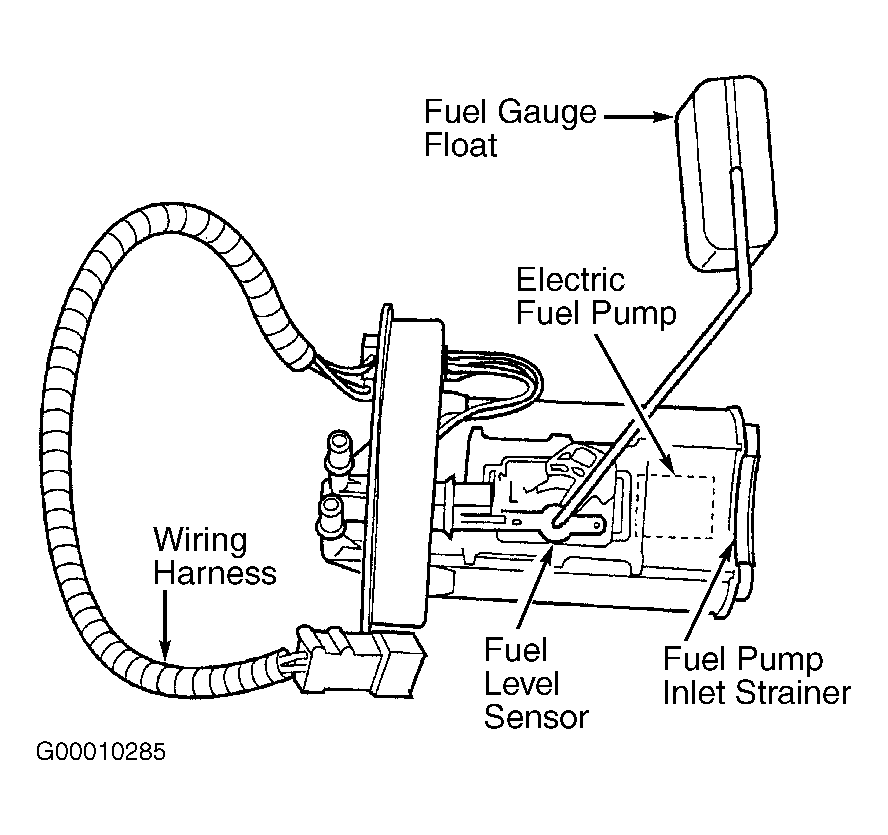

Fig 2: Identifying Fuel Pump Module Components (Grand Cherokee)

Courtesy of DAIMLERCHRYSLER CORPORATION

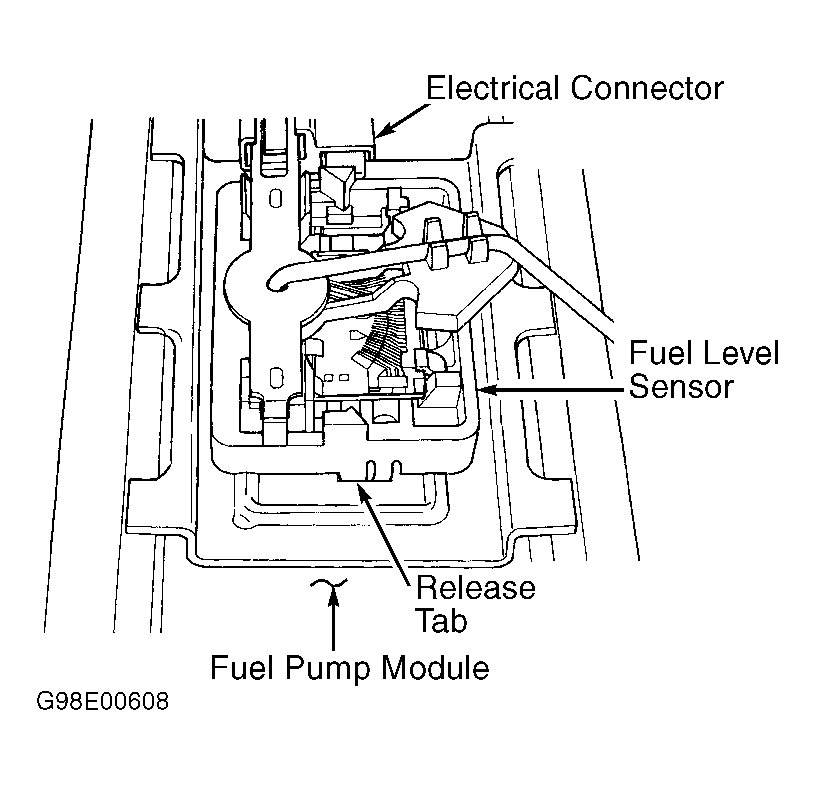

Fig 3: Locating Fuel Level Sensor Release Tab

Courtesy of DAIMLERCHRYSLER CORPORATION
