Steering Gear: Notes

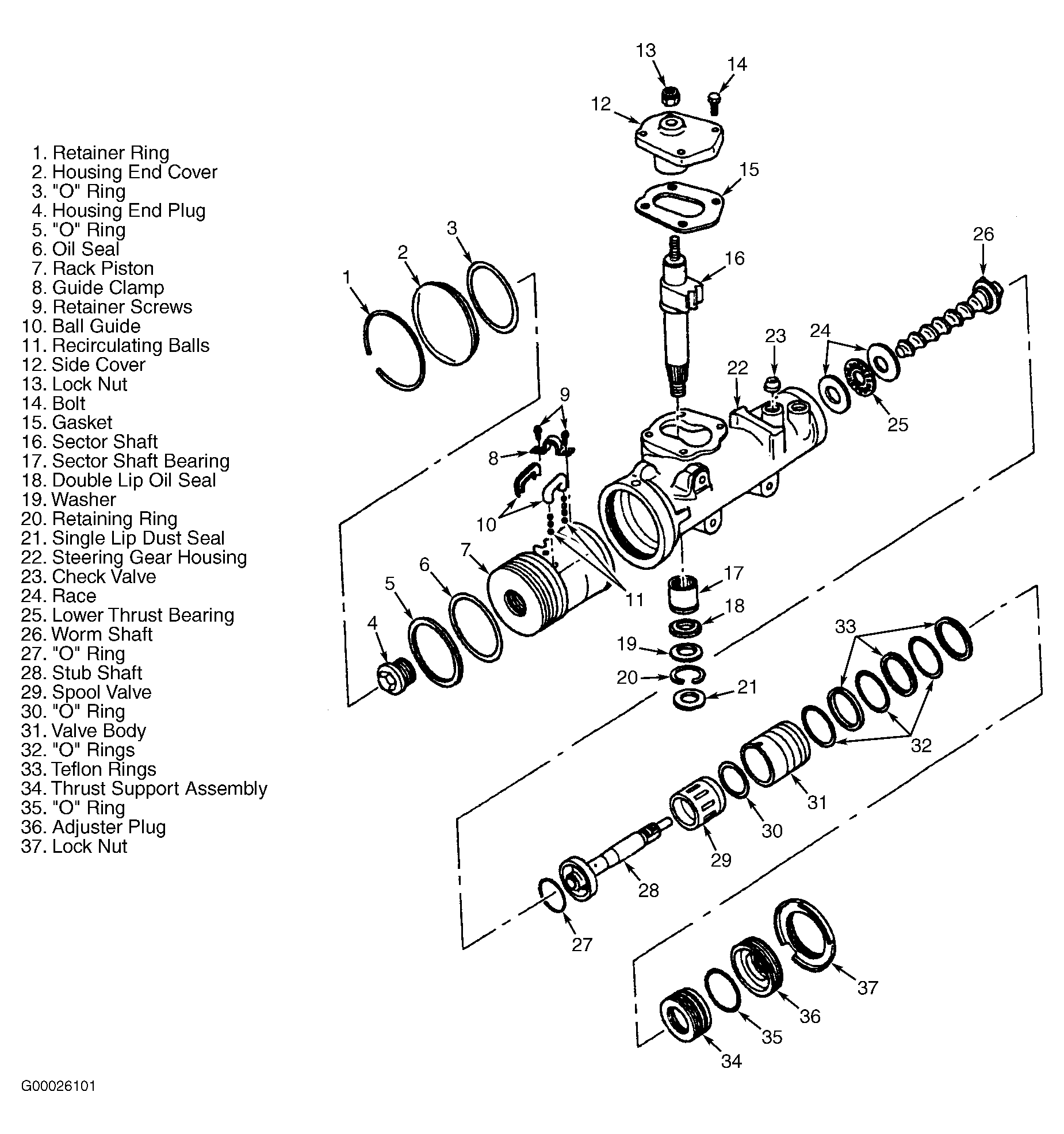

Fig 1: Exploded View Of Power Steering Gear (Cherokee & Wrangler)
G00026101Courtesy of DAIMLERCHRYSLER CORP.

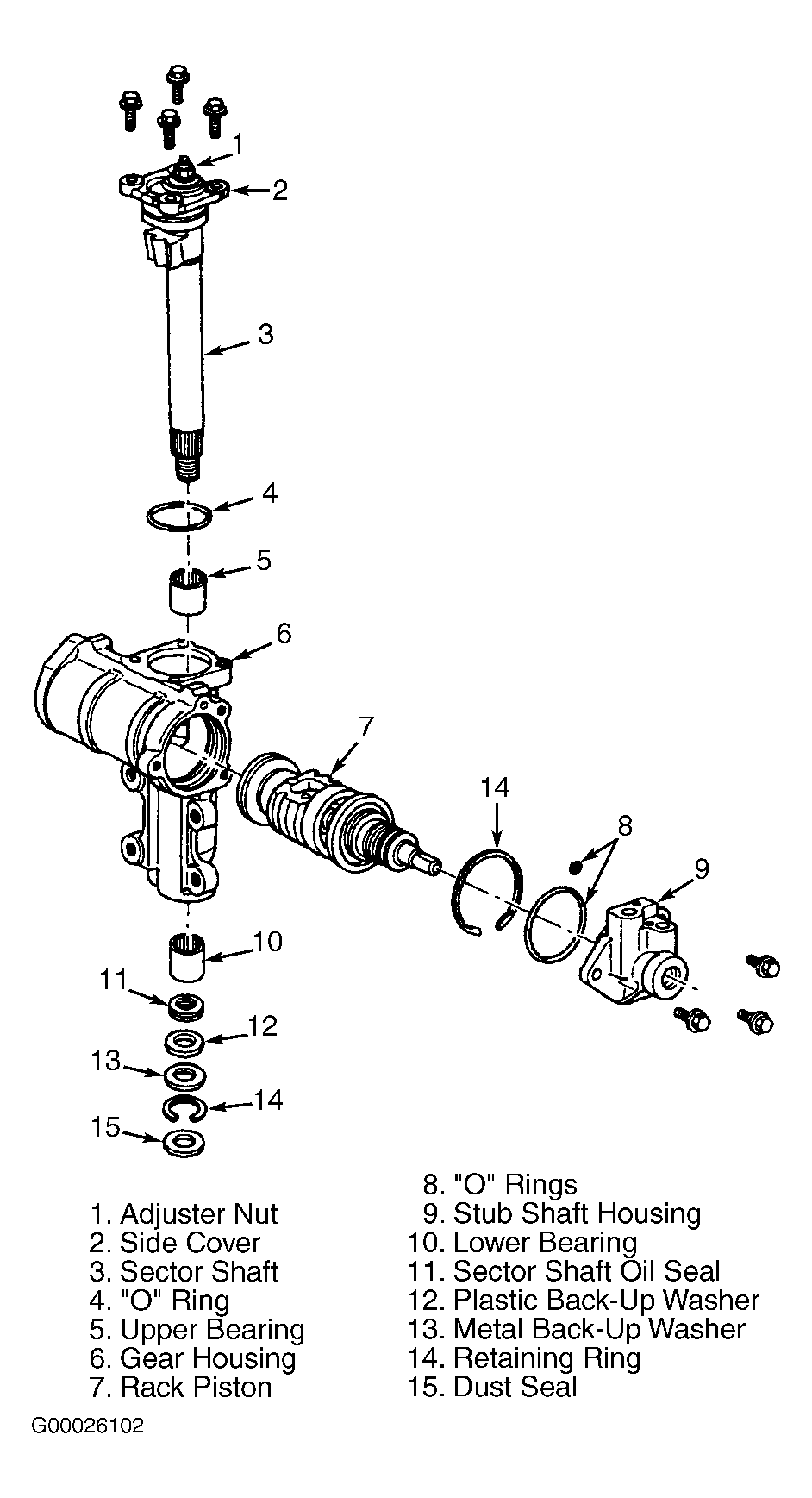

Fig 2: Exploded View Of Power Steering Gear (Grand Cherokee)
G00026102Courtesy of DAIMLERCHRYSLER CORP.

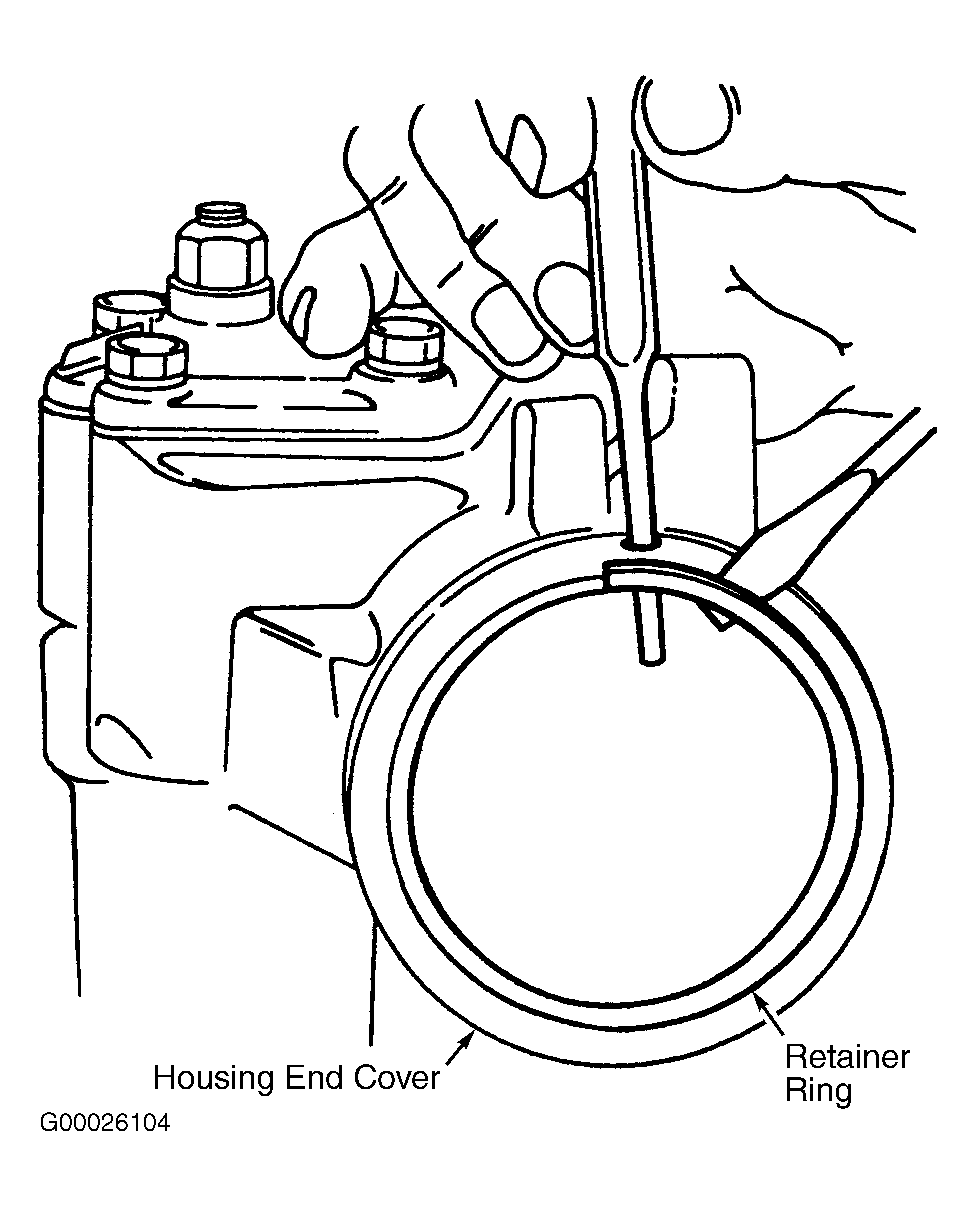

Fig 3: Removing Housing End Cover Retainer Ring (Cherokee & Wrangler)
G00026104Courtesy of CHRYSLER CORP.
