Checking the Throttle Position Sensor

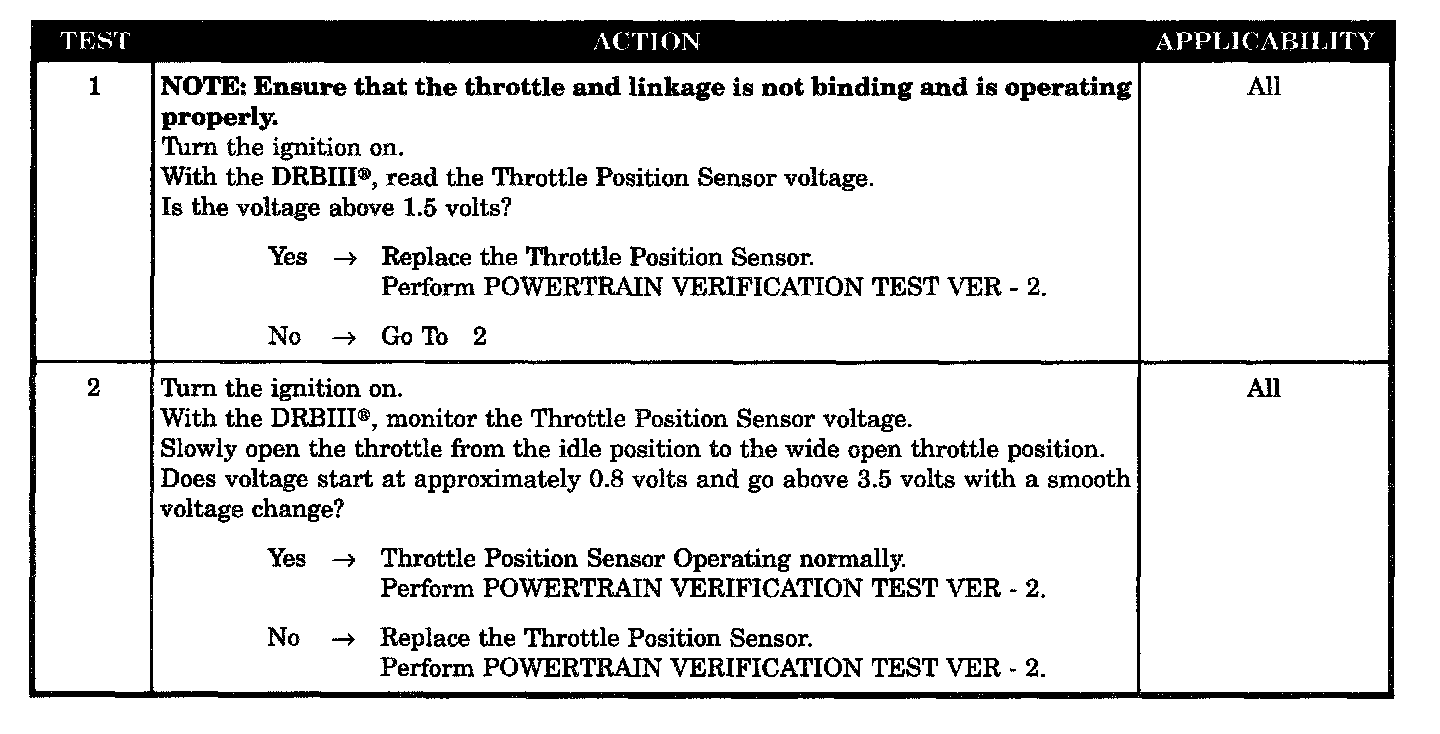

Tests 1 - 2:





SYMPTOM
*CHECKING THROTTLE POSITION SENSOR OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- Throttle position sensor voltage above 1.5 Volts
- Throttle position sensor sweep
- TP sensor
