Chime Inoperative With Exterior Lights On and Drivers Door Open

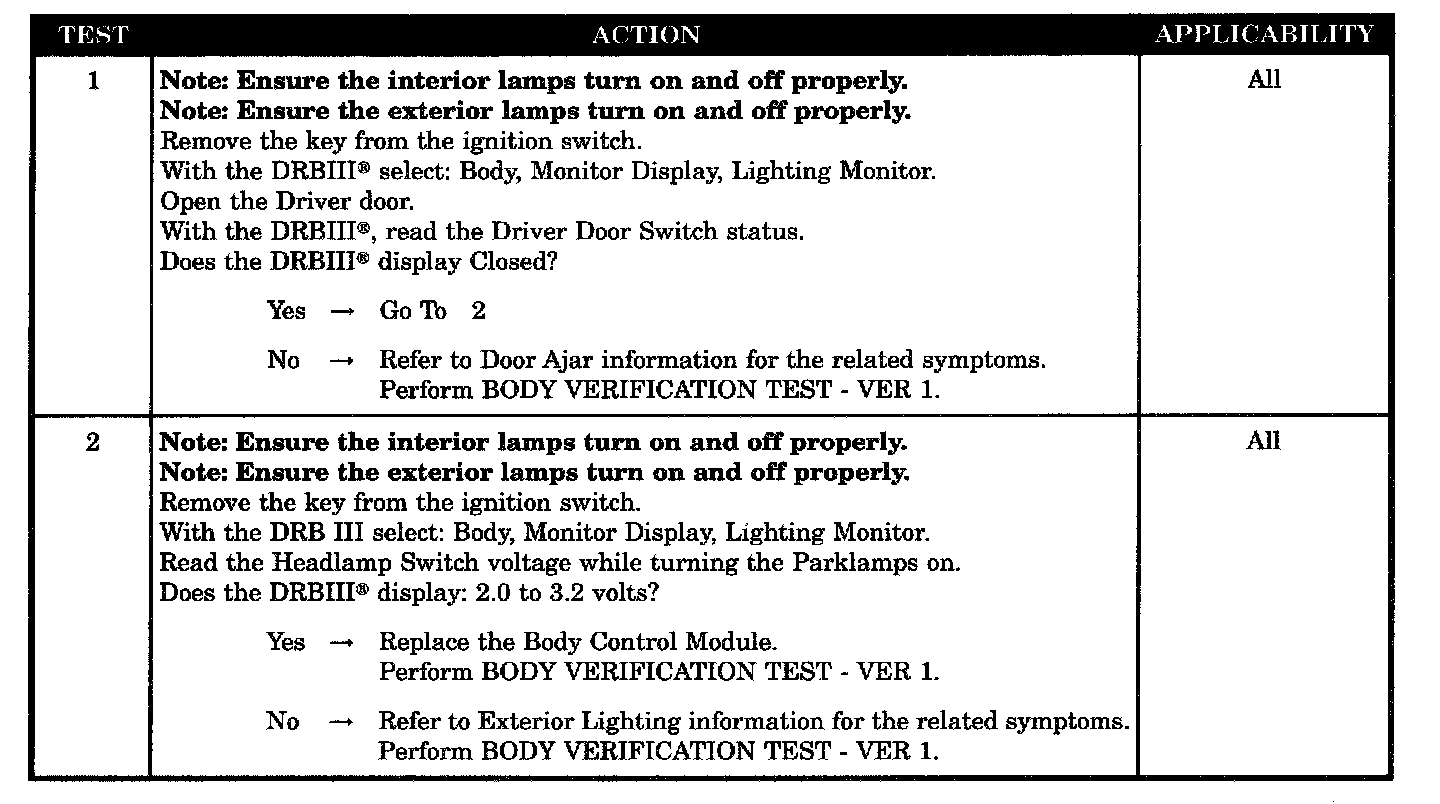

Tests 1 - 2:





SYMPTOM
CHIME INOPERATIVE WITH EXTERIOR LAMPS, DRIVER DOOR OPEN

POSSIBLE CAUSES
- DRB test headlamp switch
- Door ajar problems
- Exterior lighting problems
