Powertrain Control Module C2 Connector End View

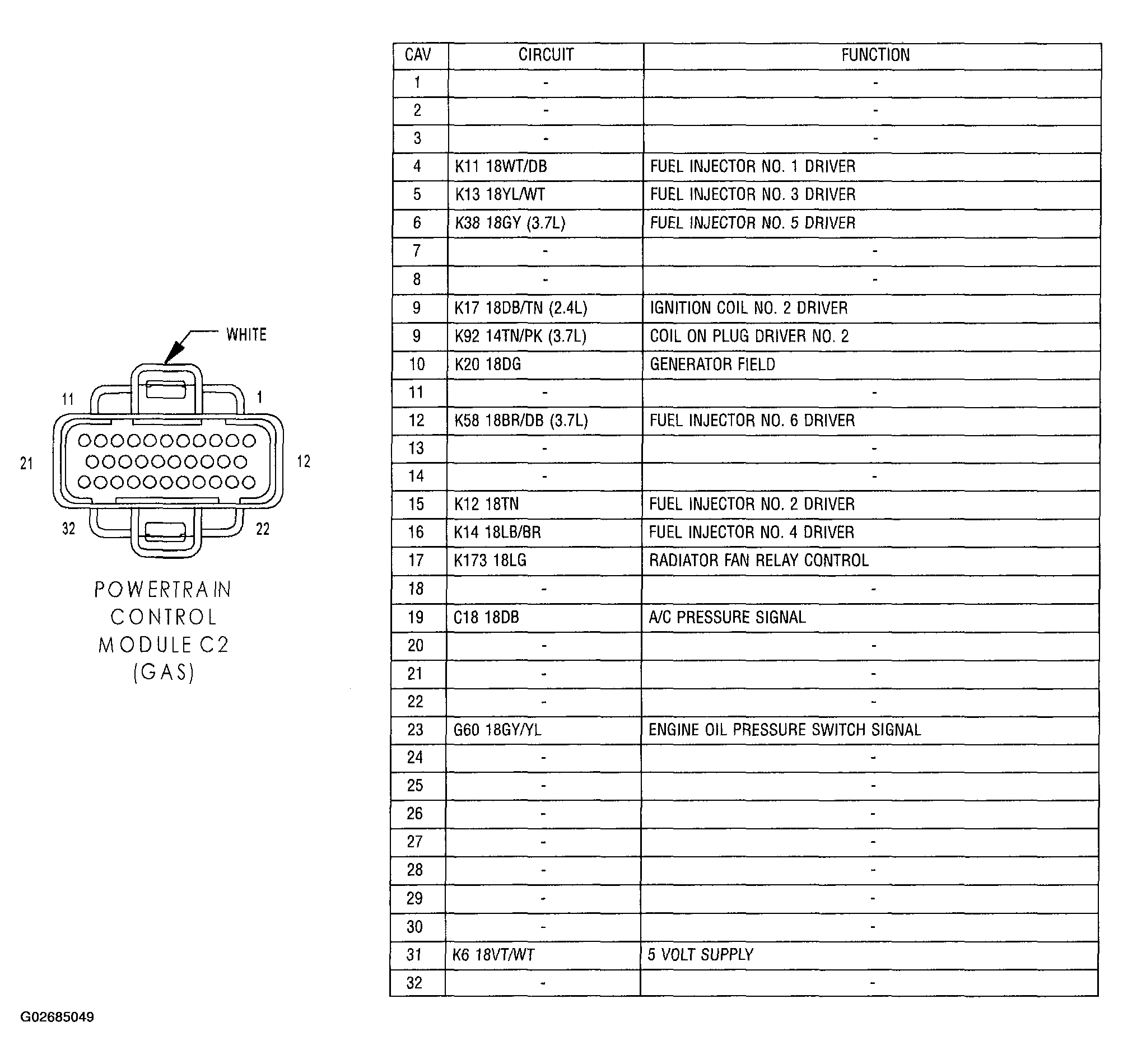

Fig 1: Powertrain Control Module C2 Connector End View
G02685049Courtesy of CHRYSLER GROUP, LLC
