O2 Sensor Harness Connector End View

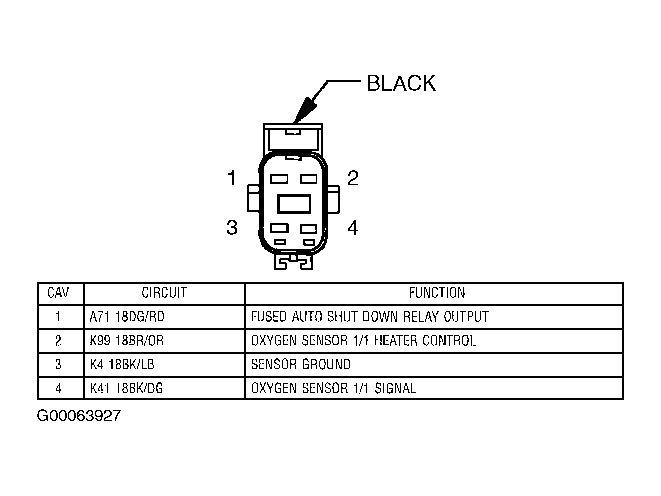

Fig 1: Identifying 1/1 O2 Sensor Harness Connector
G00063927Courtesy of DAIMLERCHRYSLER CORPORATION

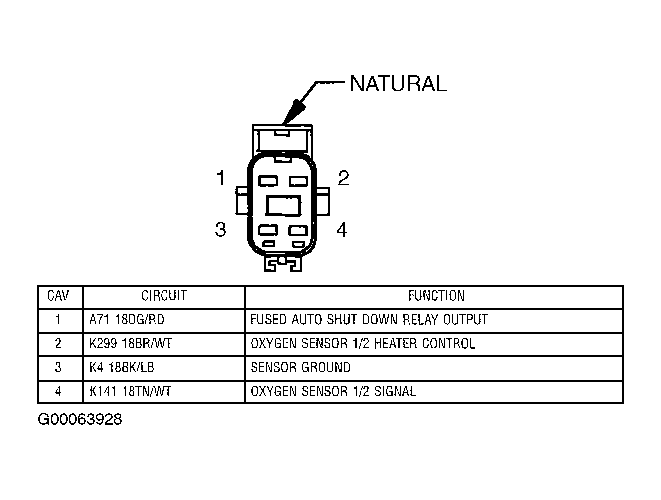

Fig 2: Identifying 1/2 O2 Sensor Harness Connector (2.4L)
G00063928Courtesy of DAIMLERCHRYSLER CORPORATION

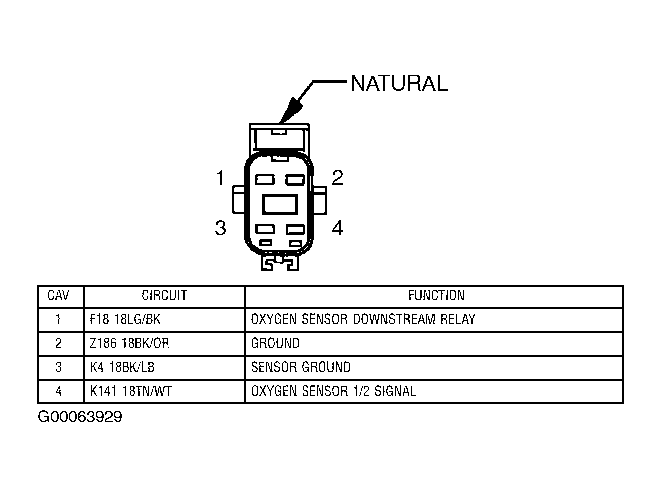

Fig 3: Identifying 1/2 O2 Sensor Harness Connector (3.7L)
G00063929Courtesy of DAIMLERCHRYSLER CORPORATION

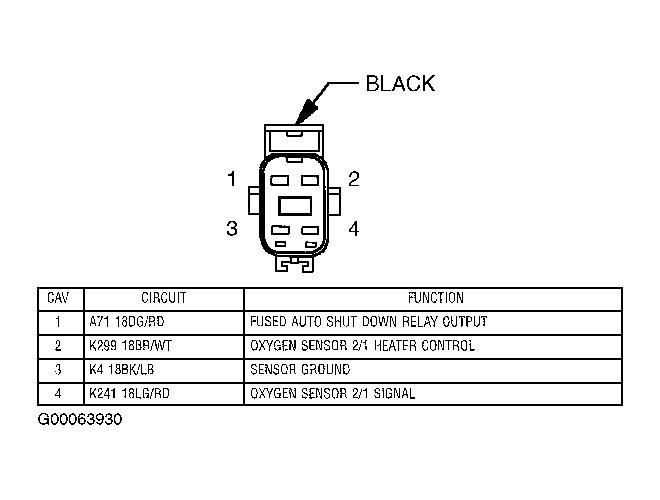

Fig 4: Identifying 2/1 O2 Sensor Harness Connector (3.7L)
G00063930Courtesy of DAIMLERCHRYSLER CORPORATION

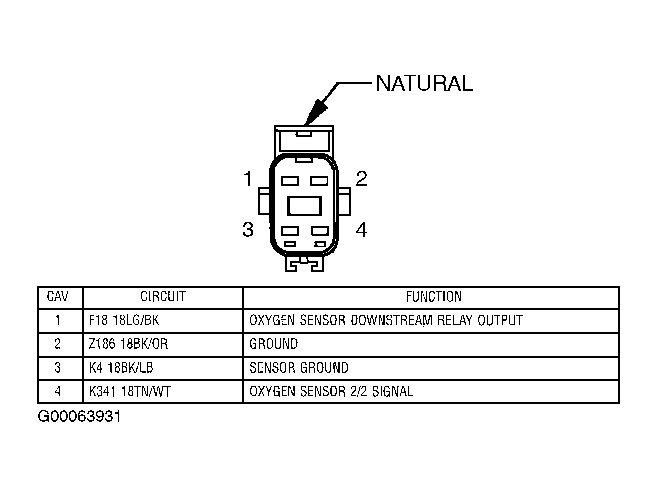

Fig 5: Identifying 2/2 O2 Sensor Harness Connector (3.7L)
G00063931Courtesy of DAIMLERCHRYSLER CORPORATION
