Left Front Impact Sensor Connector End View

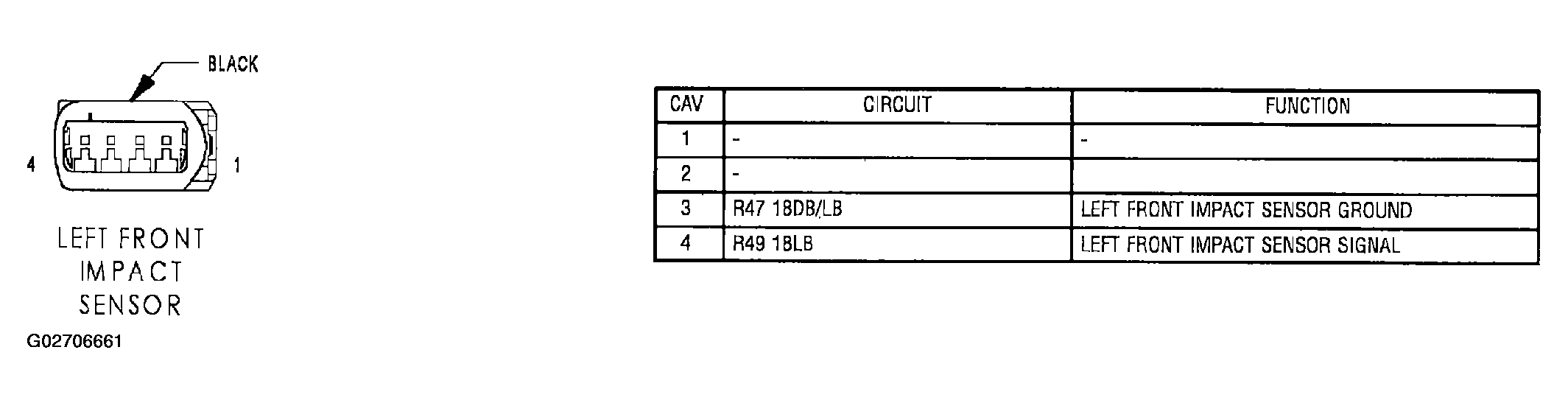

Fig 1: Left Front Impact Sensor Connector End View
G02706661Courtesy of CHRYSLER GROUP, LLC
