Right Front Impact Sensor Connector End View

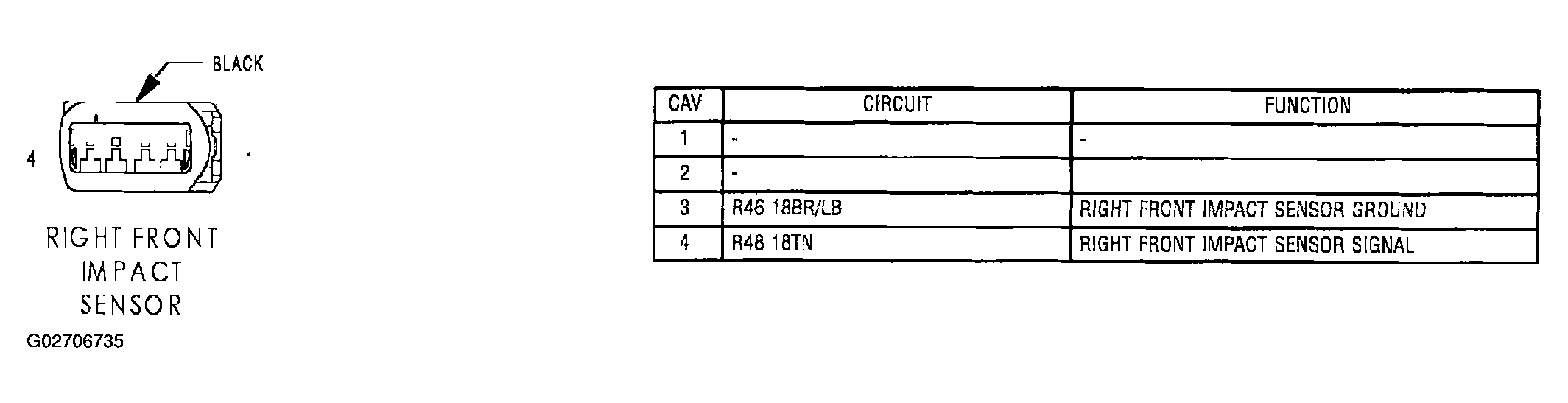

Fig 1: Right Front Impact Sensor Connector End View
G02706735Courtesy of CHRYSLER GROUP, LLC
