Flow Management Valve: Removal

The flow management valve is located on top of the fuel tank. See Figure.

1. Four cargo hold down clamps are located inside the vehicle on the floor of the rear cargo area. Remove the 2 rearward mounted clamps by drilling out the clamp rivets.
2. Fold carpeting forward to gain access to fuel pump module access plate. See Fig 1.

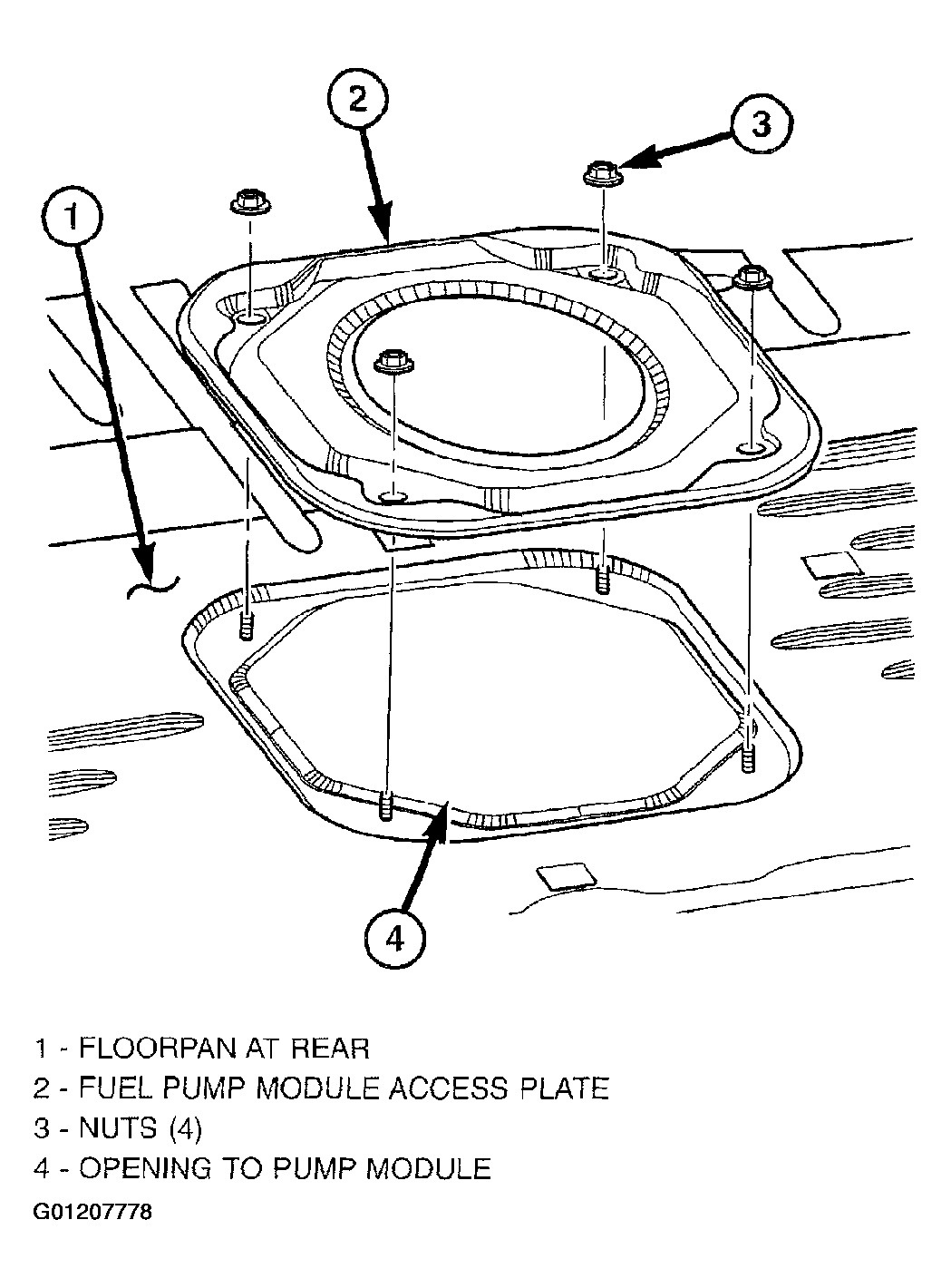

   Fig 1: Locating Access Plate

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove 4 fuel pump module access plate nuts. See Fig 1.
4. While applying heat from a heat gun, carefully pry up fuel pump module access plate. Take care not to bend plate.
5. Disconnect flow management valve hose clamp and hose. at pump module fitting. Also disconnect small recirculation line at top half of management valve. See Fig 2.
6. Raise vehicle.
7. Disconnect opposite end of flow management valve hose at EVAP canister. See Figure.
8. Remove valve and 2 hoses as an assembly.

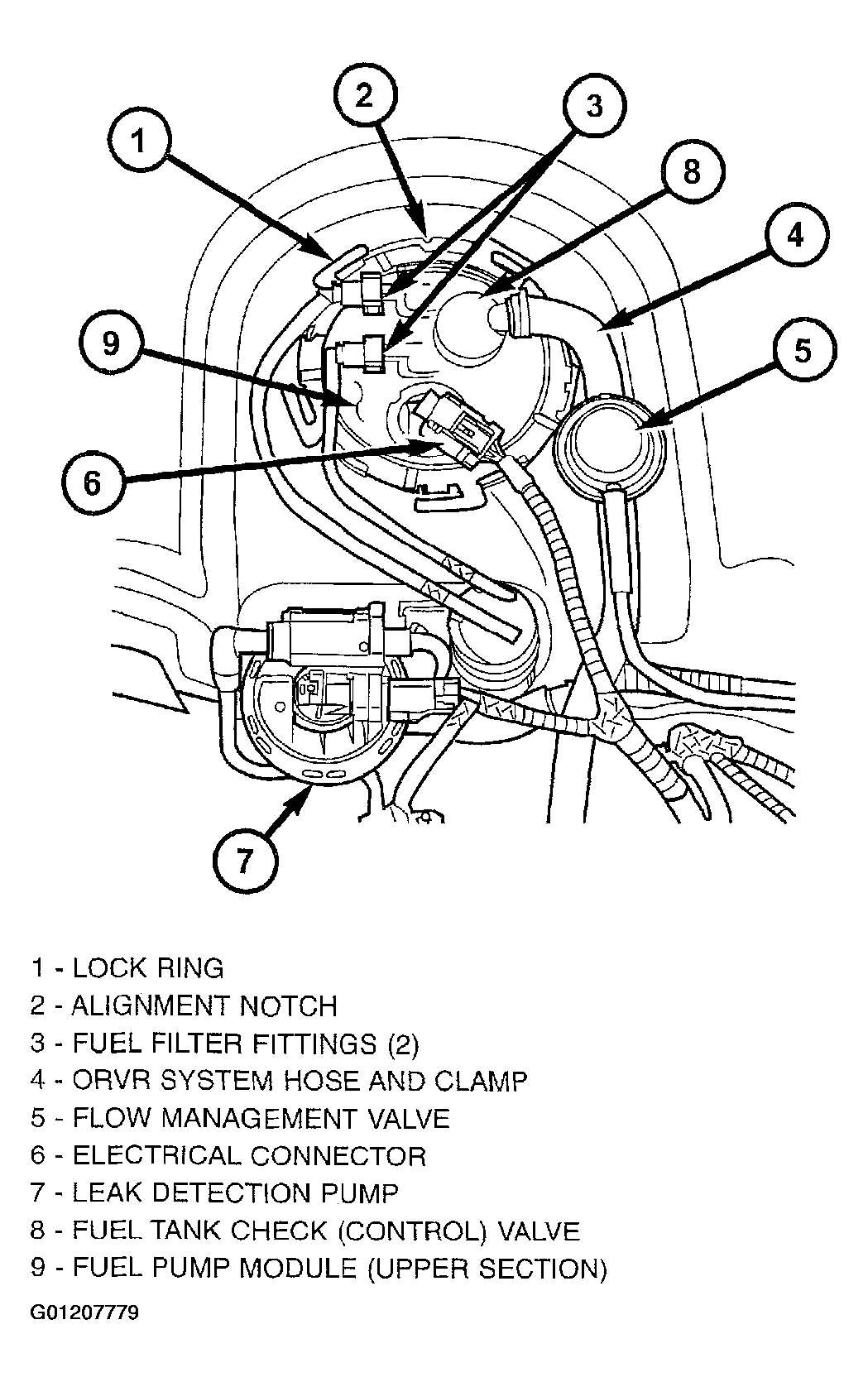

   Fig 2: Identifying Components On Top Of Fuel Pump Module

   Courtesy of DAIMLERCHRYSLER CORP.
