C103 Dash Side Inline Connector End View

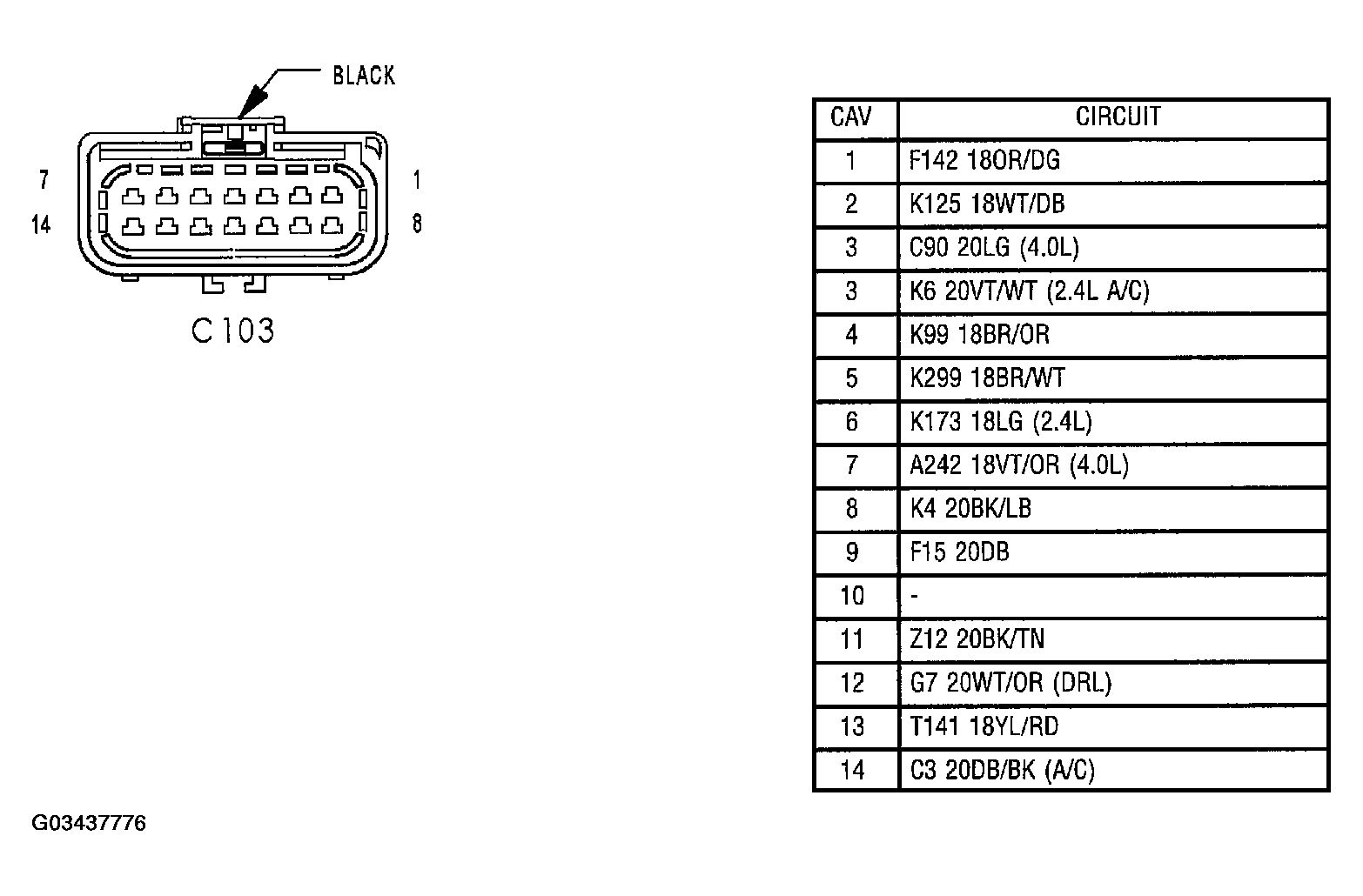

Fig 1: C103 Dash Side Inline Connector End View
G03437776Courtesy of CHRYSLER GROUP, LLC
