C110 Dash Side Inline Connector End View

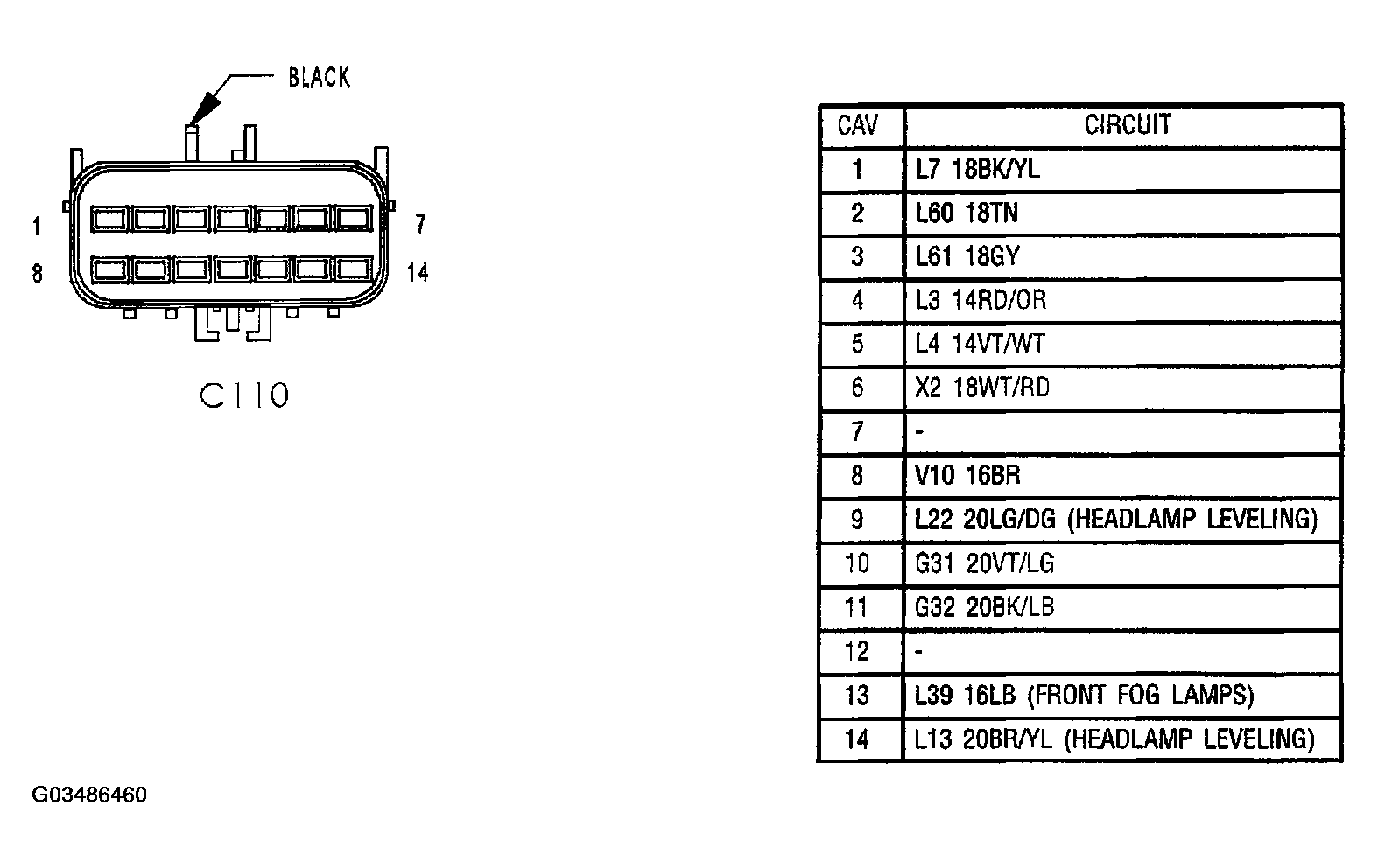

Fig 1: C110 Dash Side Inline Connector End View
G03486460Courtesy of CHRYSLER GROUP, LLC
