Front Locker Pump (Off Road Package) Connector End View

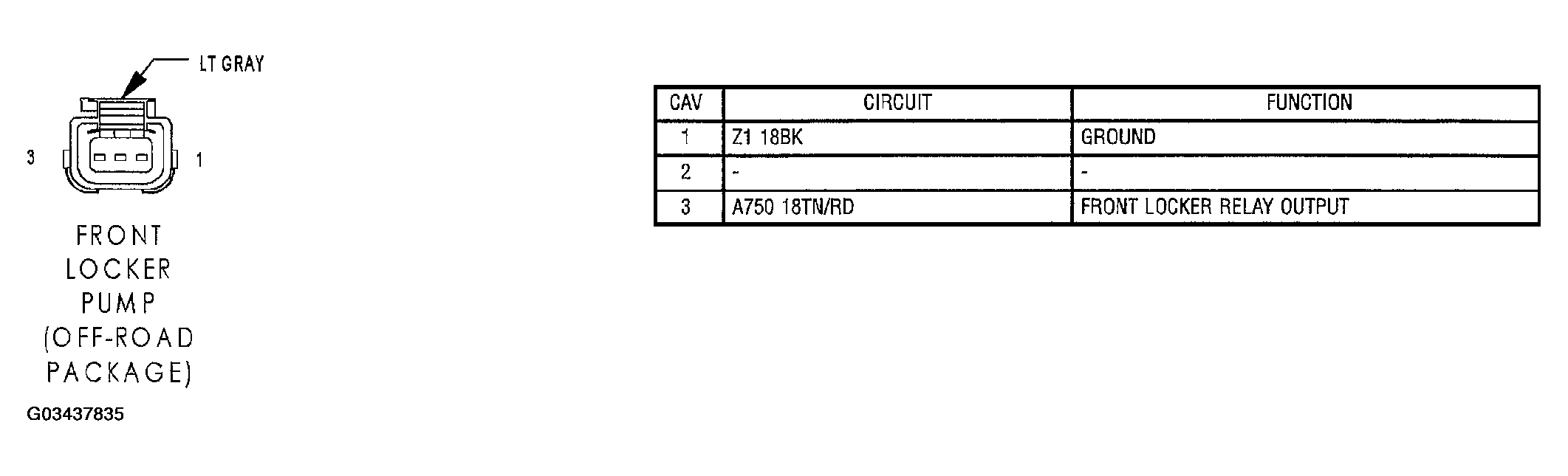

Fig 1: Front Locker Pump (Off Road Package) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
