Connector Views

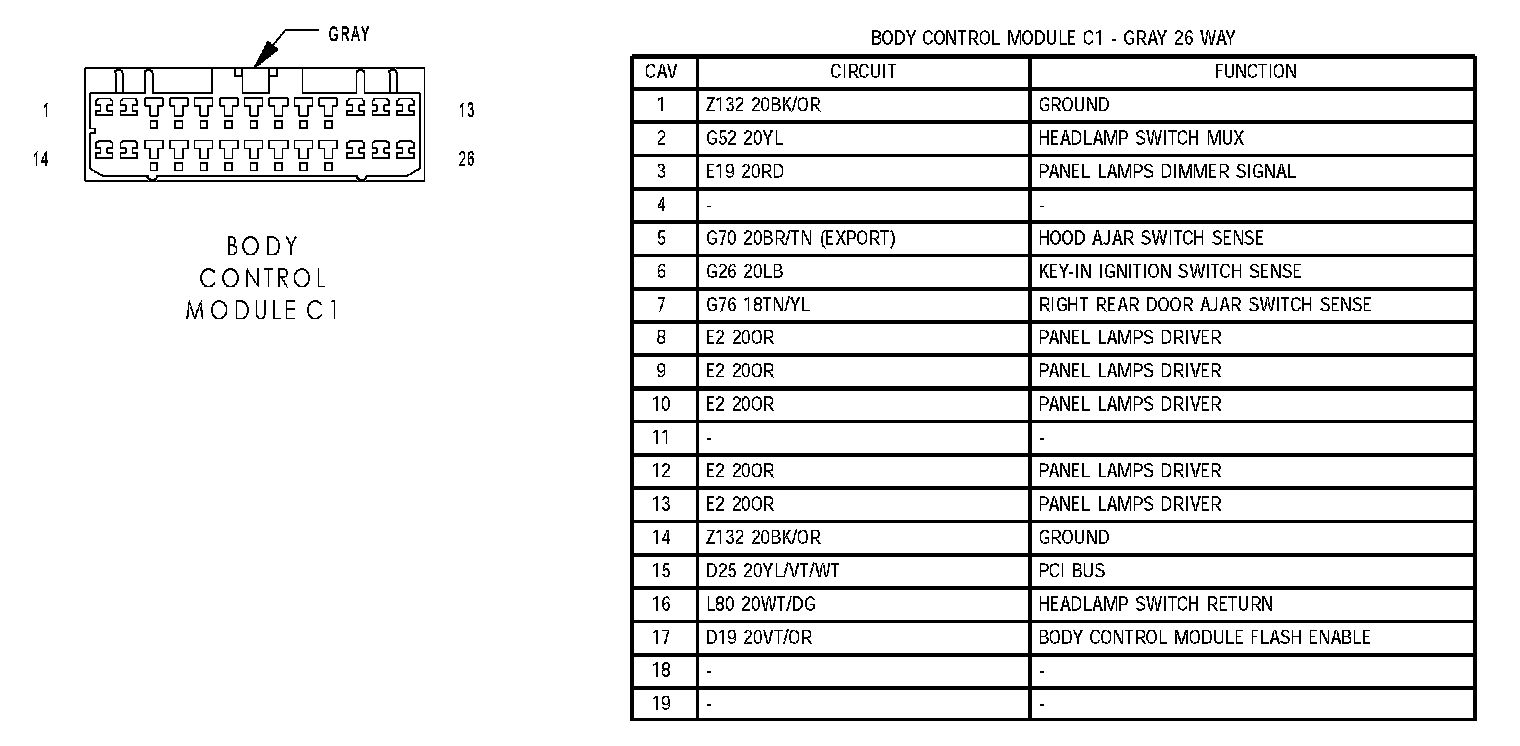

Body Control Module C1 (Part 1 Of 2):

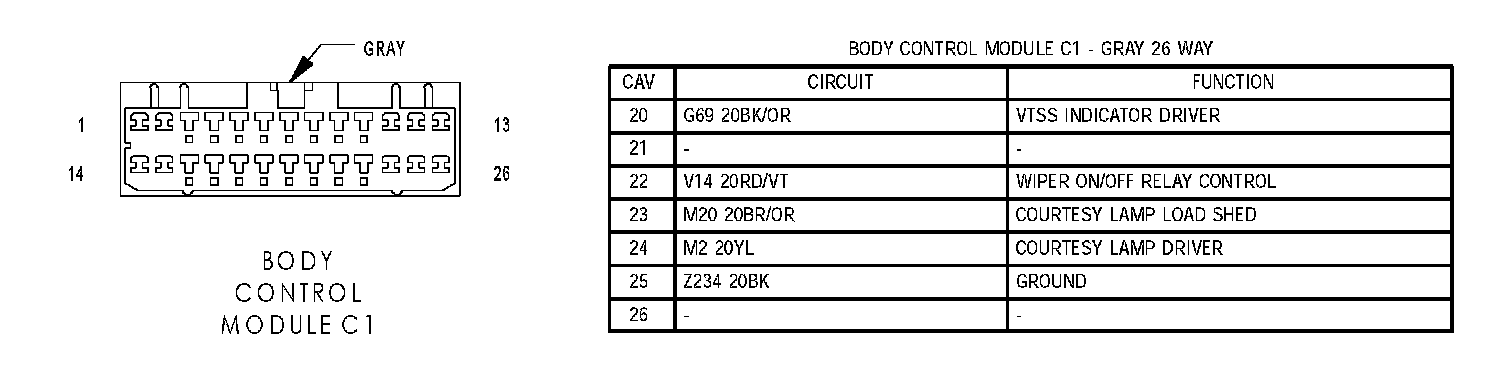

Body Control Module C1 (Part 2 Of 2):

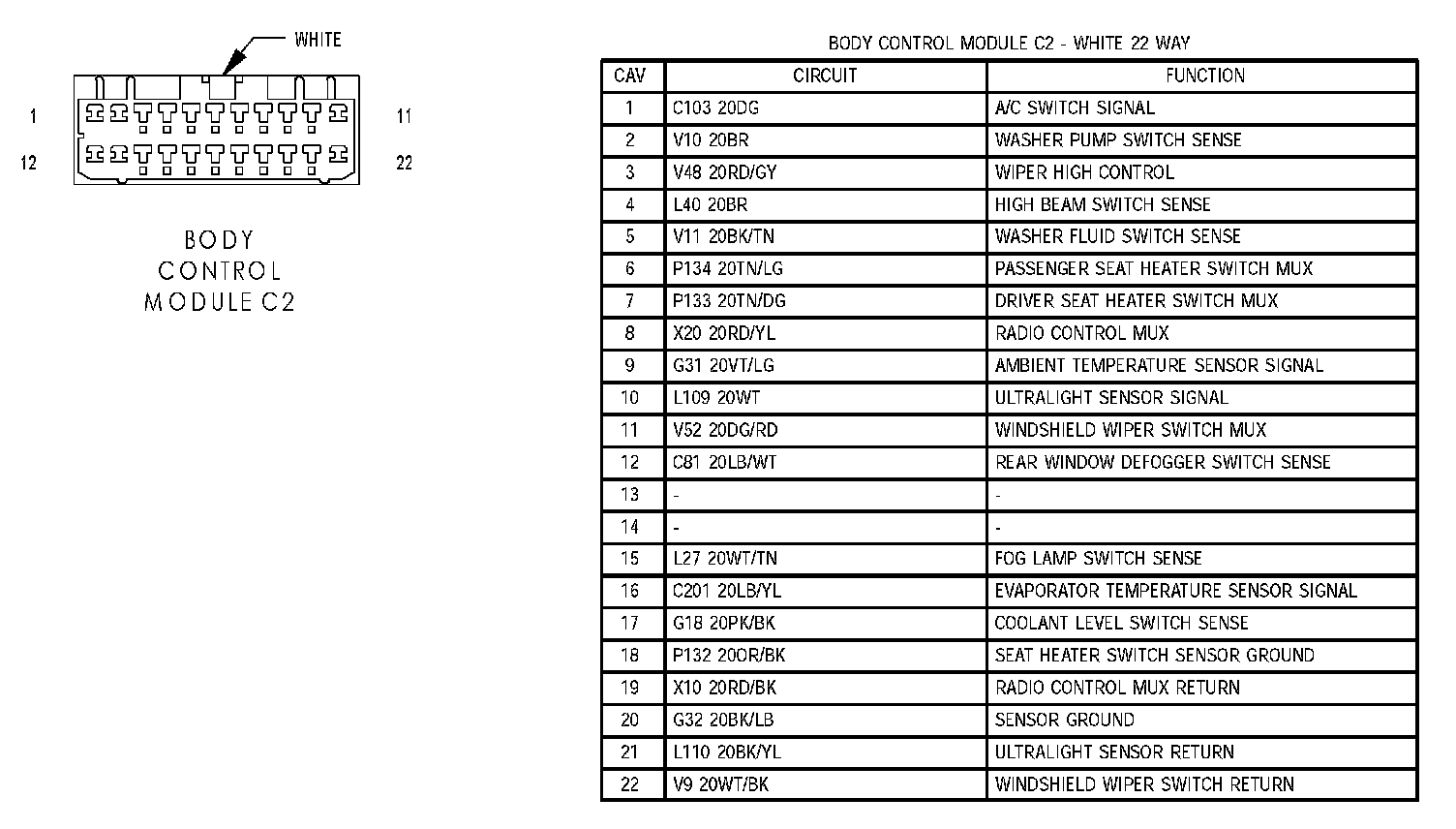

Body Control Module C2:

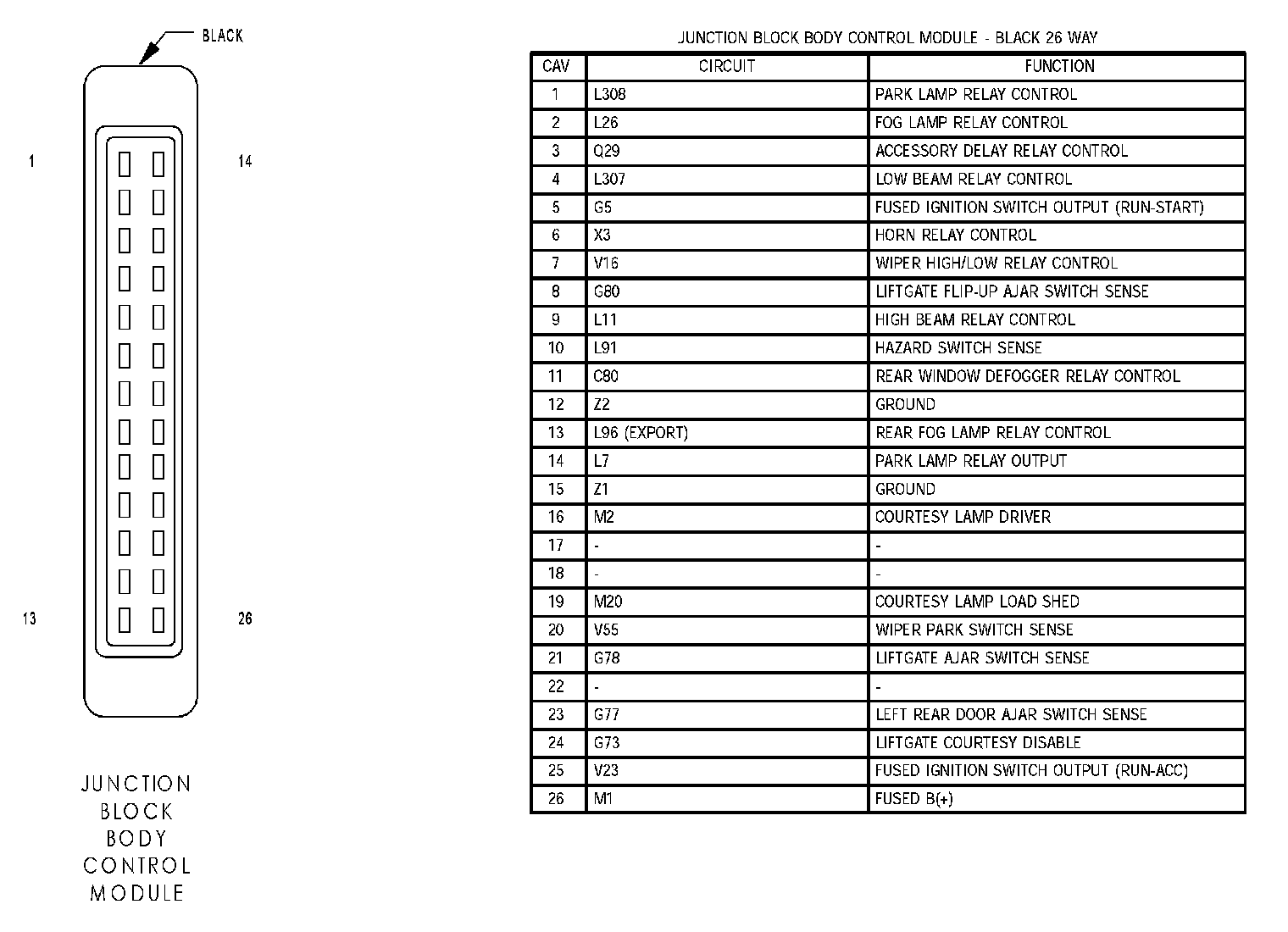

Junction Block Body Control Module:
