Component Locations

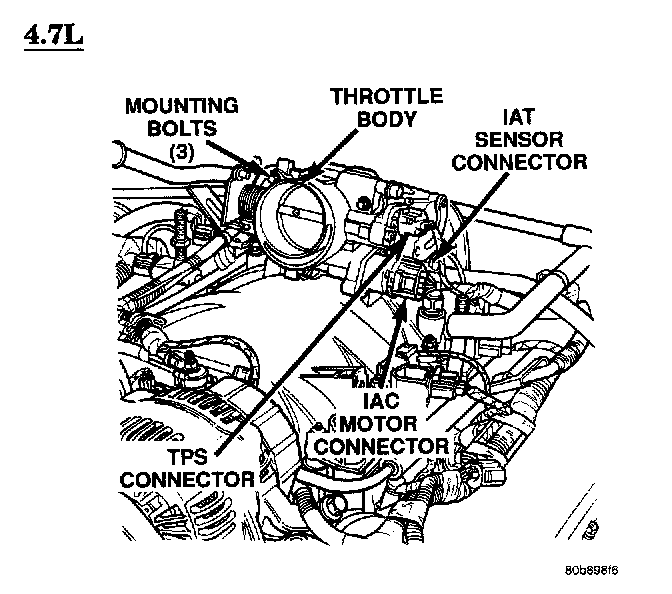

4.7L:




The 3-wire Throttle Position Sensor (TPS) is mounted on the throttle body and is connected to the throttle blade.
