DRBIII State Display Test Mode

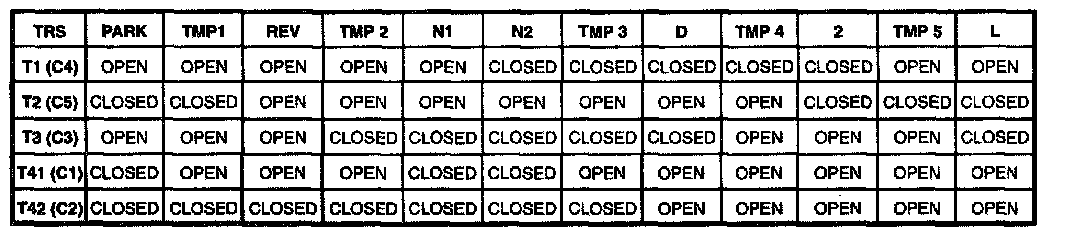

TRANSMISSION RANGE SENSOR SWITCH STATES
45RFE/545RFE TRS SWITCH STATES
