Body Control Modules & Junction Block

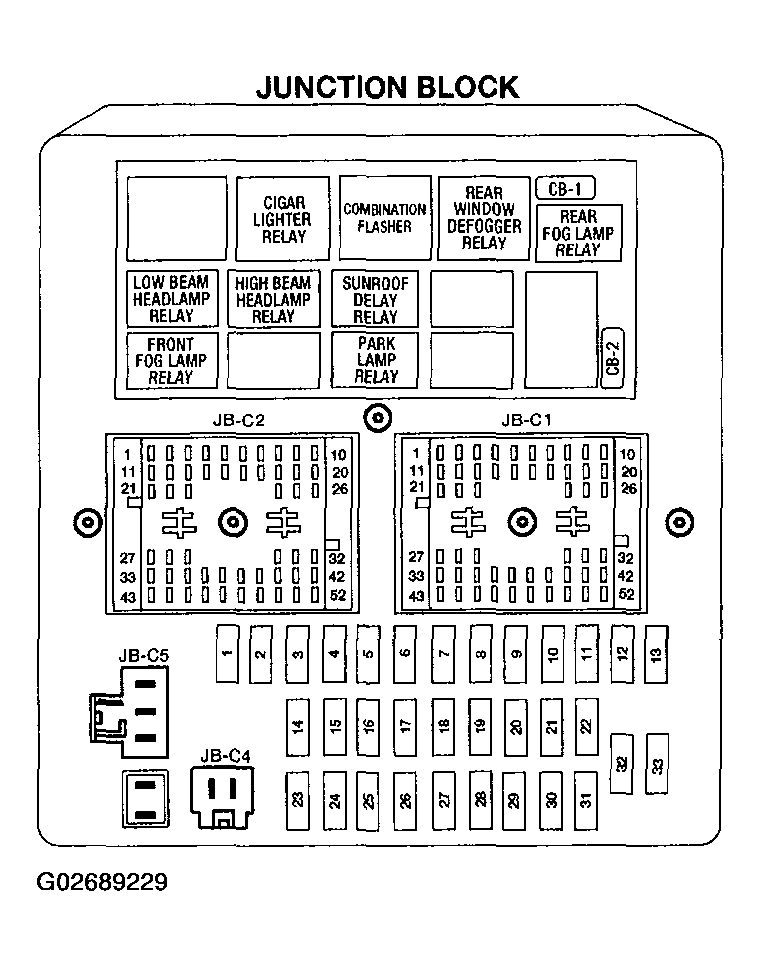

Fig 1: Identifying Junction Block

G02689229

Courtesy of DAIMLERCHRYSLER CORP.

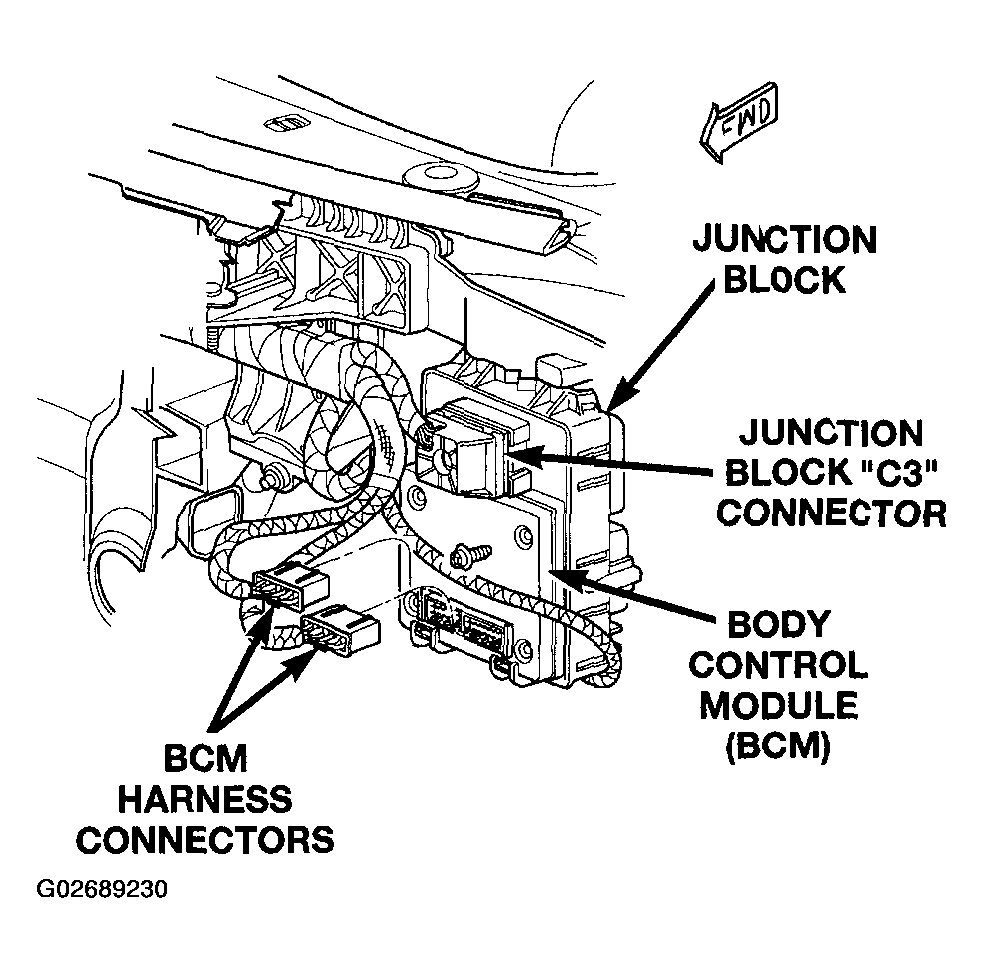

Fig 2: Identifying Body Control Module (1 Of 2)

G02689230

Courtesy of DAIMLERCHRYSLER CORP.

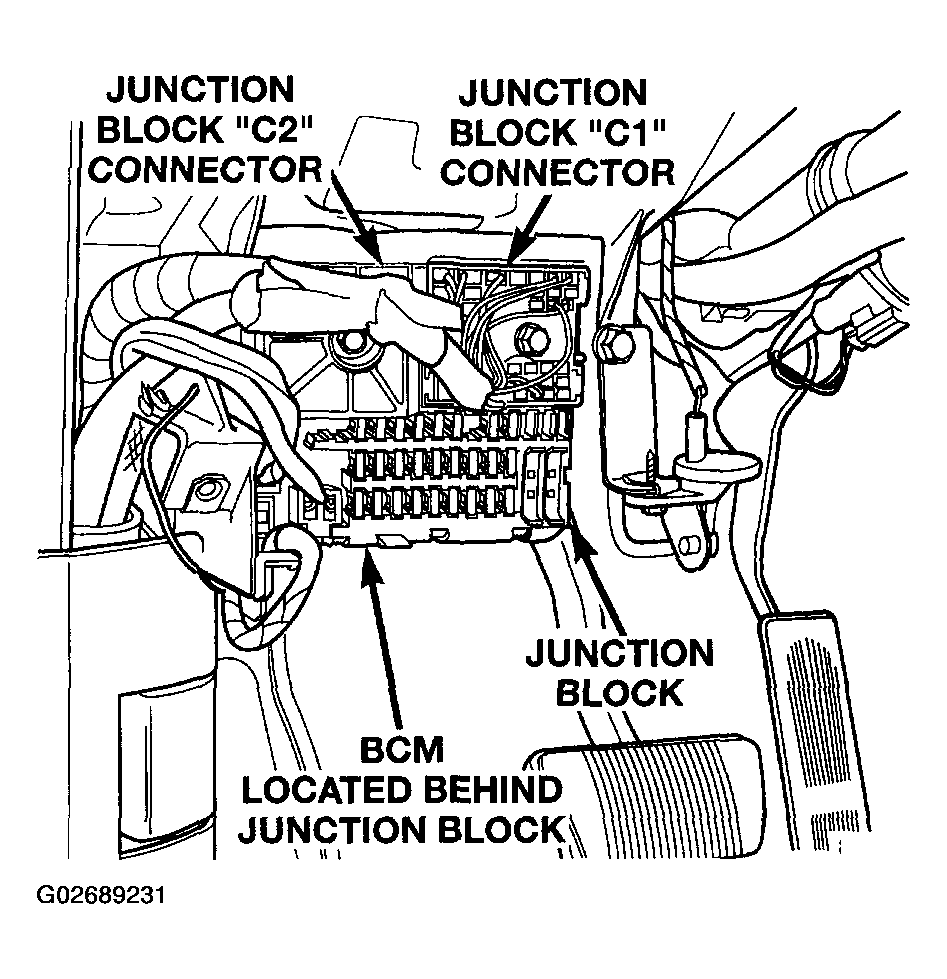

Fig 3: Identifying Body Control Module (2 Of 2)

G02689231

Courtesy of DAIMLERCHRYSLER CORP.
