Wiper System

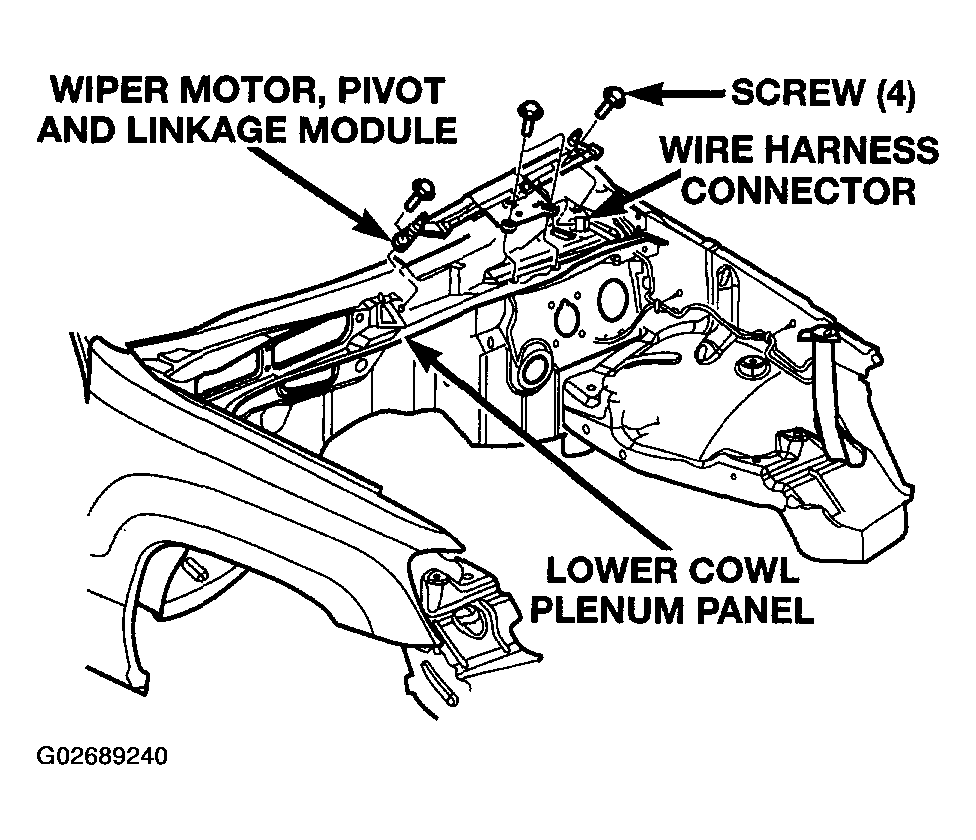

Fig 1: Identifying Wiper System Components (1 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

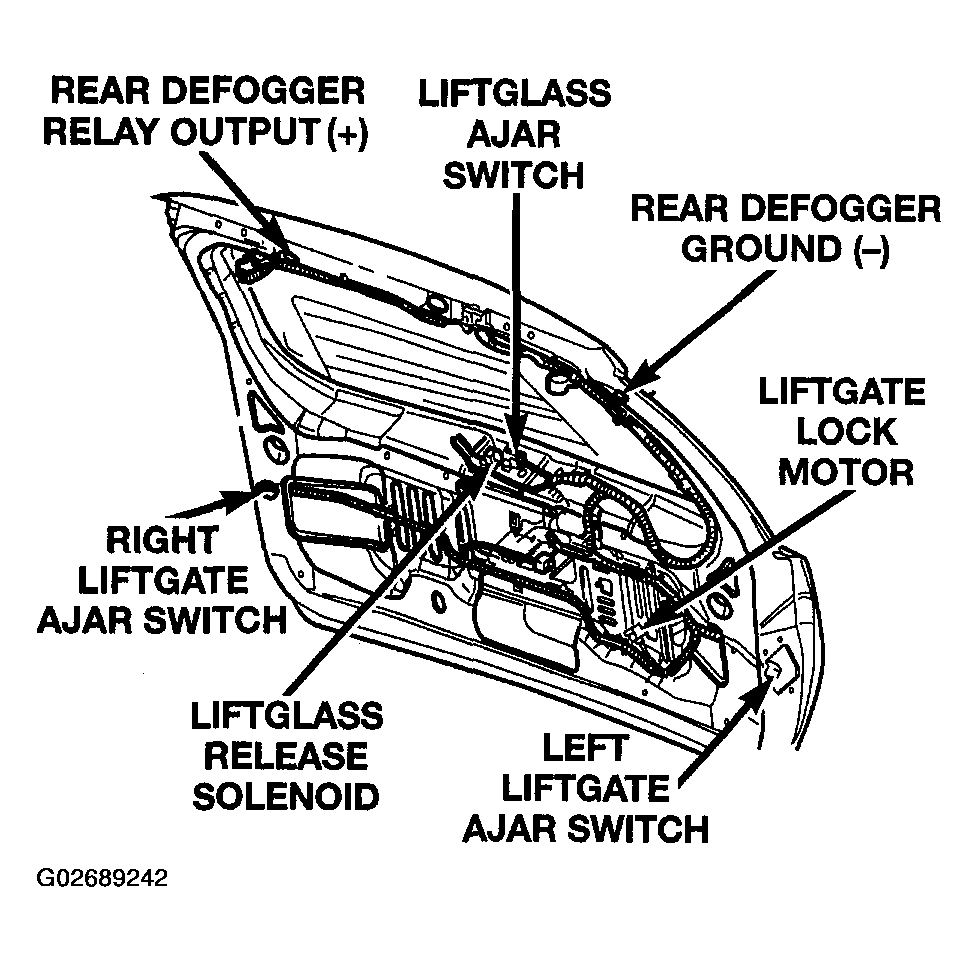

Fig 2: Identifying Wiper System Components (2 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

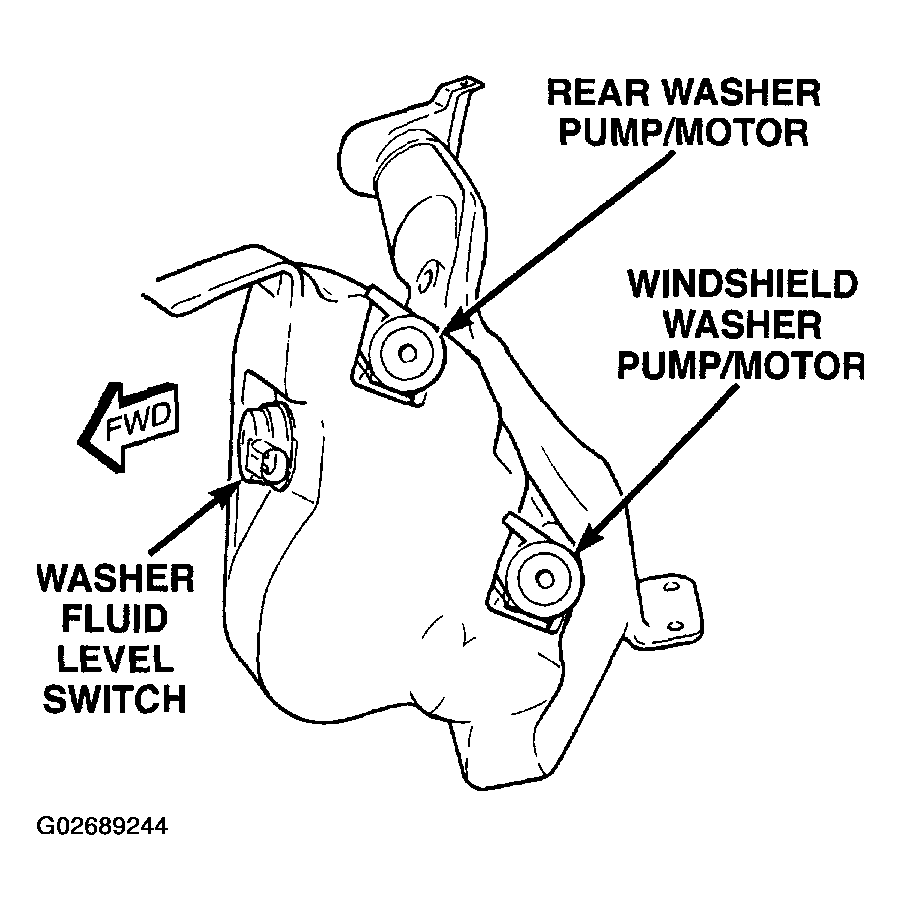

Fig 3: Identifying Wiper System Components (3 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

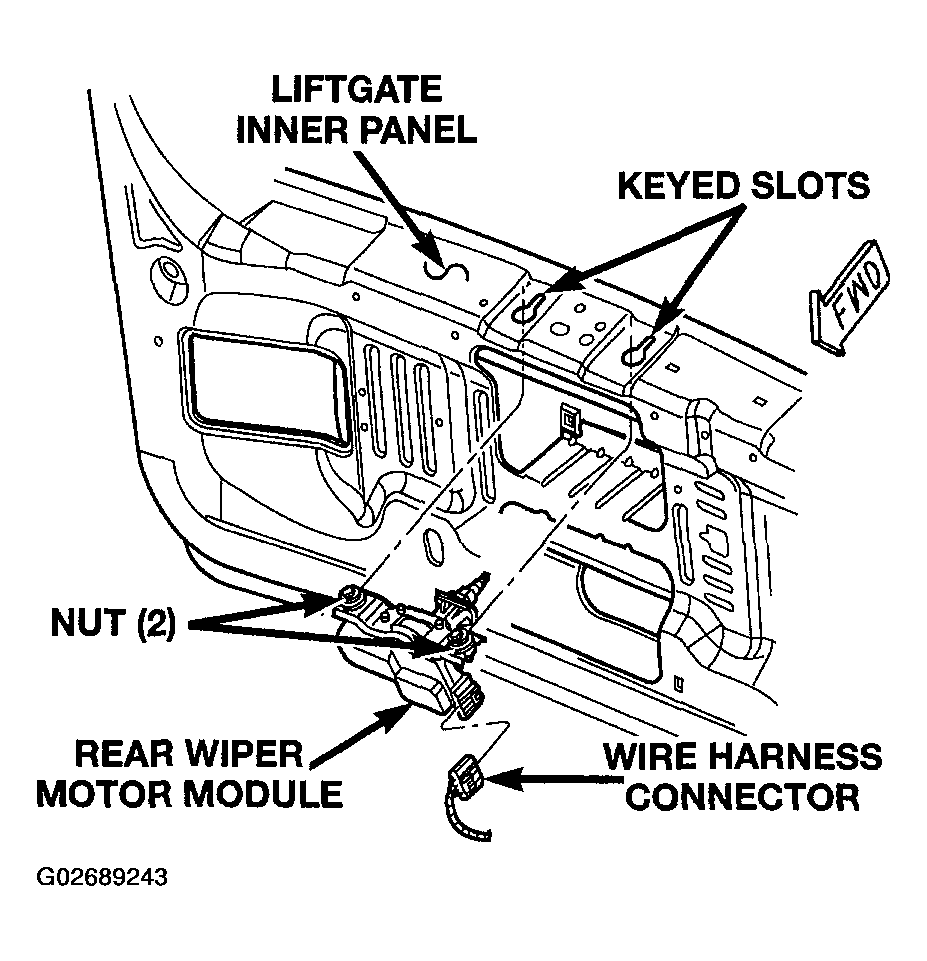

Fig 4: Identifying Wiper System Components (4 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

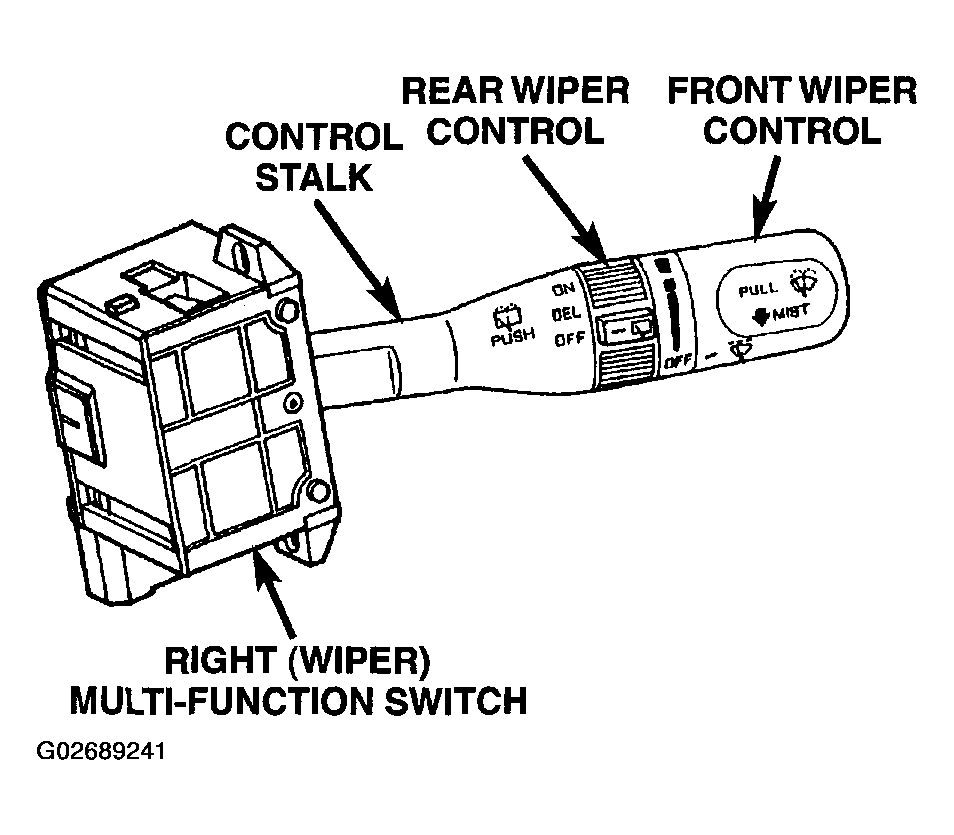

Fig 5: Identifying Wiper System Components (5 Of 5)

Courtesy of DAIMLERCHRYSLER CORP.

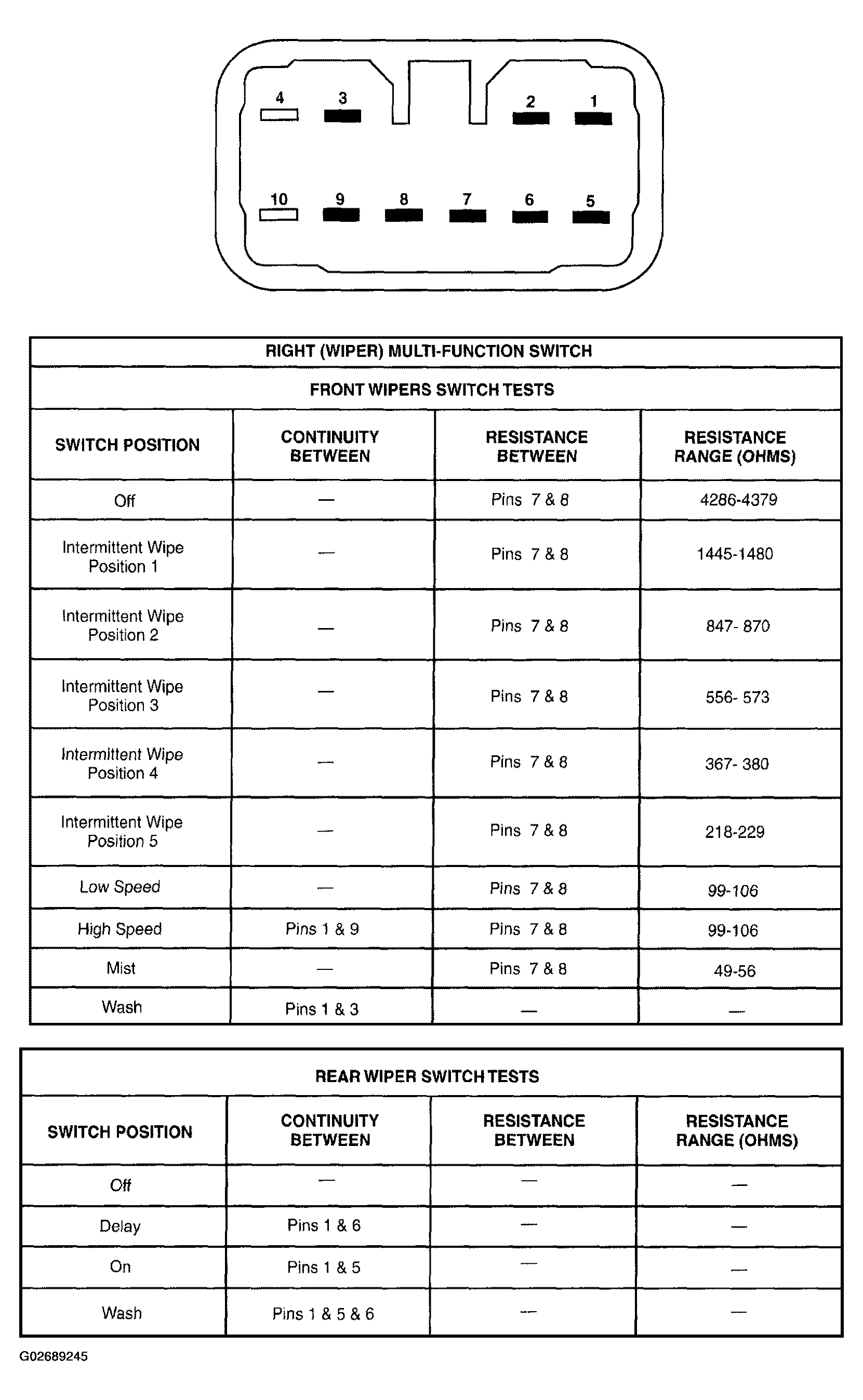

Fig 6: Identifying Wiper Switch Connector Terminals
