Remote Radio Controls

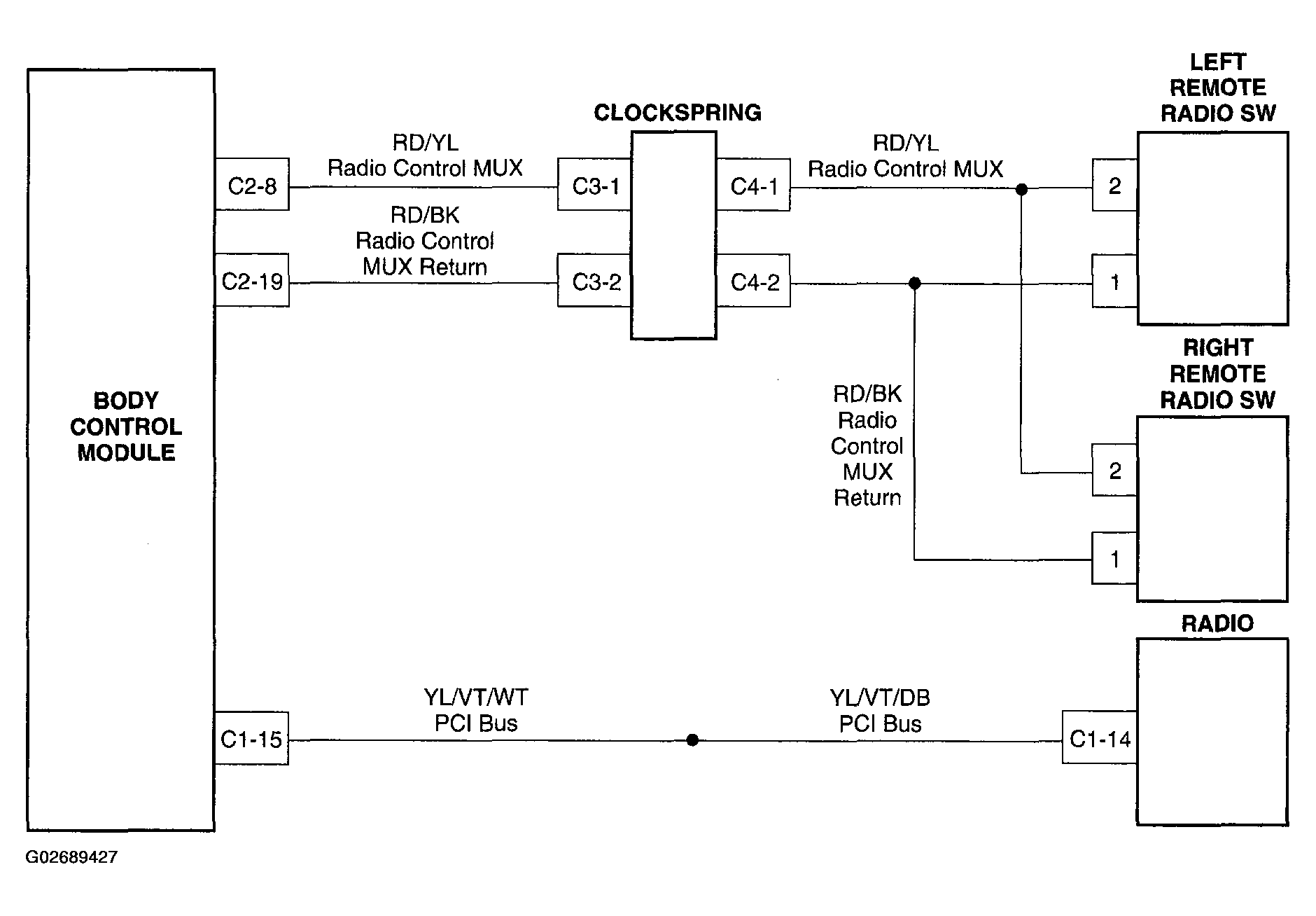

Fig 1: Identifying Remote Radio Controls Schematic Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
