Interior Lighting

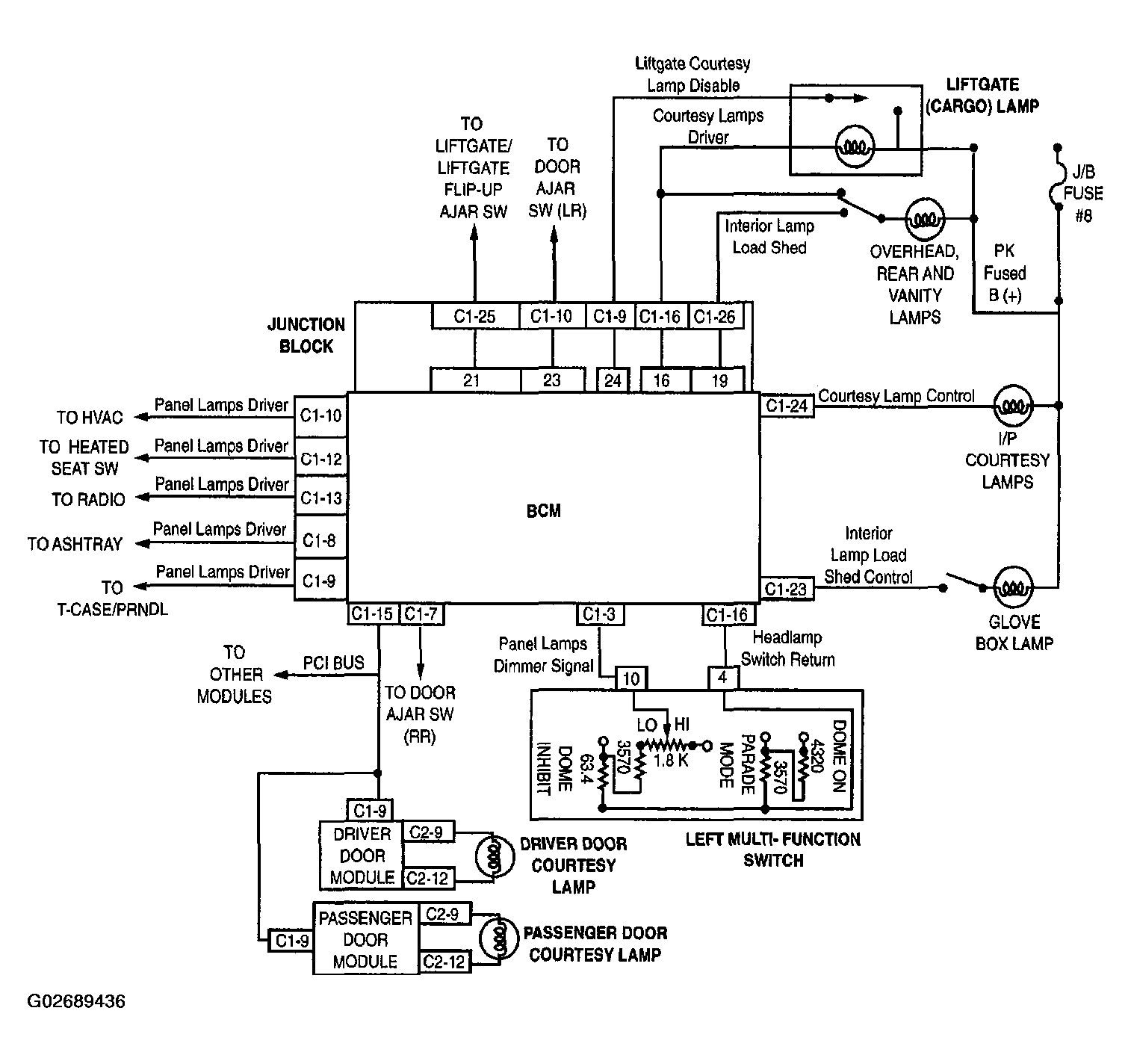

Fig 1: Identifying Interior Lighting Schematic Diagrams (1 Of 2)
G02689436Courtesy of DAIMLERCHRYSLER CORP.

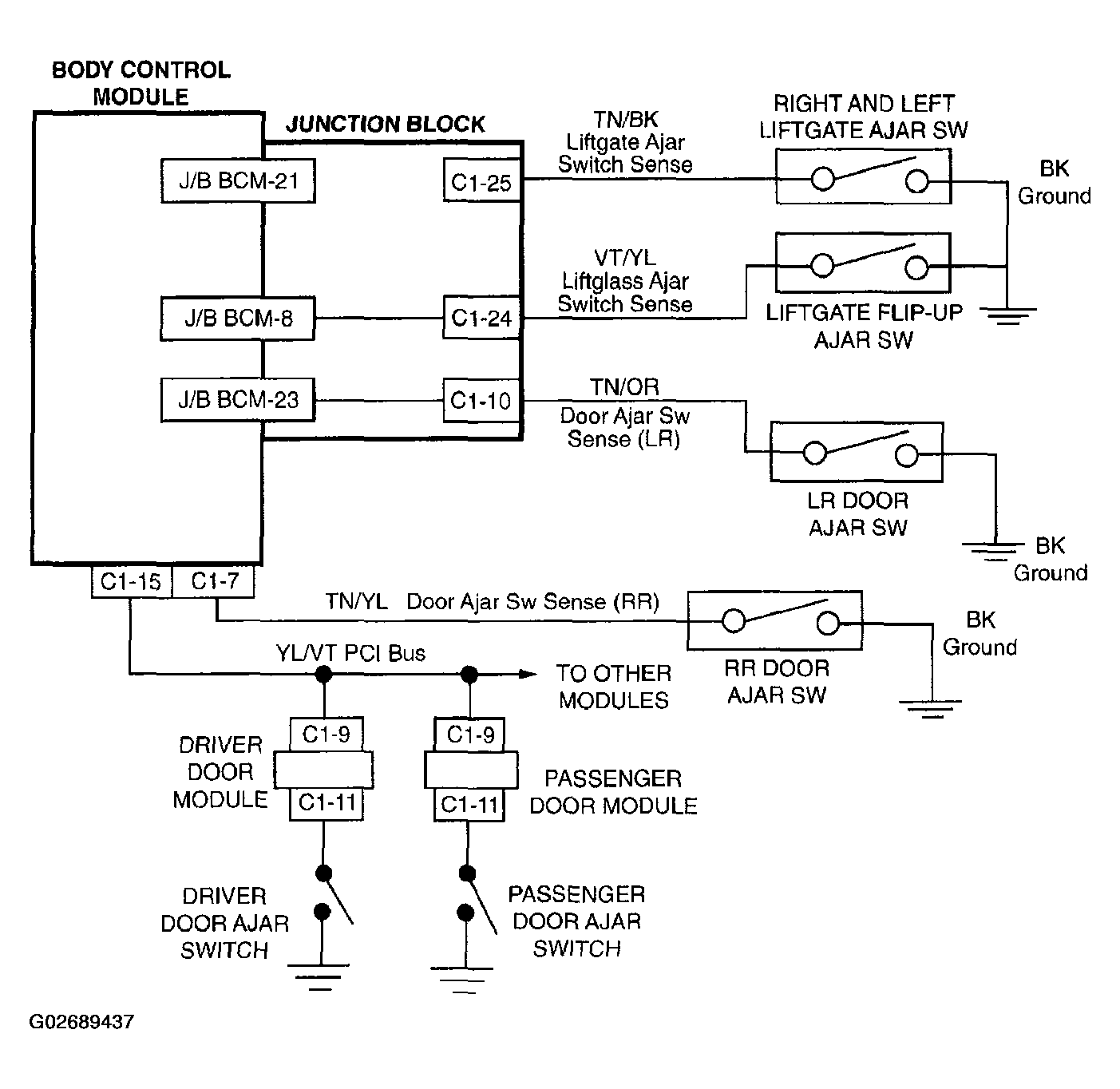

Fig 2: Identifying Interior Lighting Schematic Diagrams (2 Of 2)
G02689437Courtesy of DAIMLERCHRYSLER CORP.
