Fuel Injector Connector End View

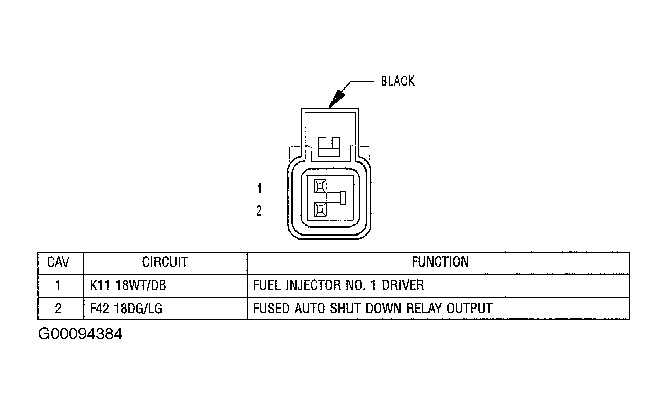

Fig 1: Identifying Fuel Injector No. 1 Harness Connector
G00094384Courtesy of DAIMLERCHRYSLER CORPORATION

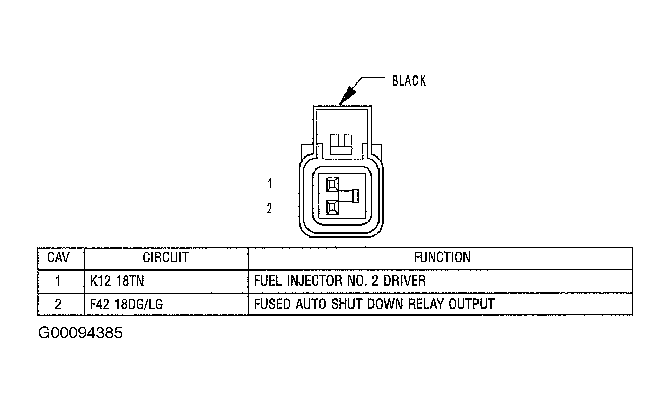

Fig 2: Identifying Fuel Injector No. 2 Harness Connector
G00094385Courtesy of DAIMLERCHRYSLER CORPORATION

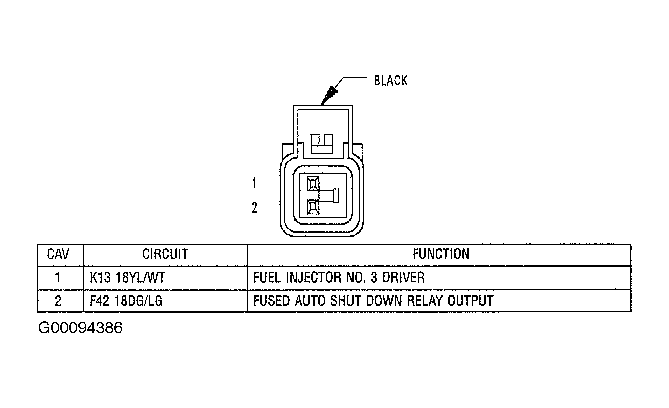

Fig 3: Identifying Fuel Injector No. 3 Harness Connector
G00094386Courtesy of DAIMLERCHRYSLER CORPORATION

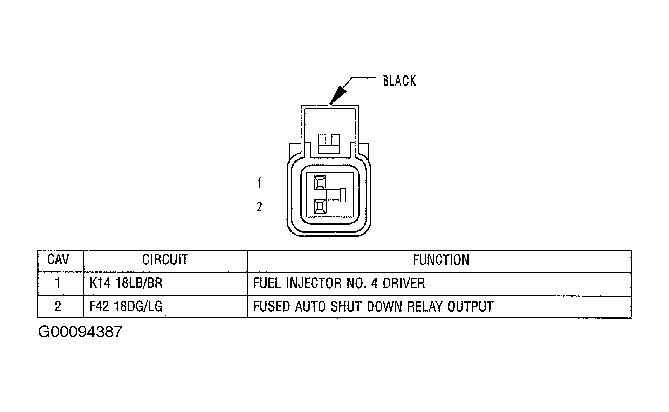

Fig 4: Identifying Fuel Injector No. 4 Harness Connector
G00094387Courtesy of DAIMLERCHRYSLER CORPORATION

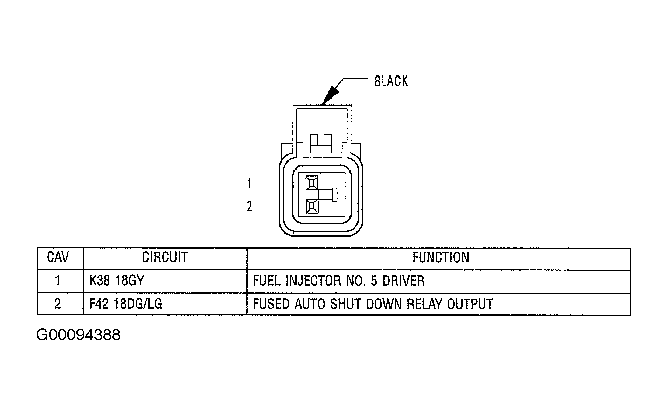

Fig 5: Identifying Fuel Injector No. 5 Harness Connector
G00094388Courtesy of DAIMLERCHRYSLER CORPORATION

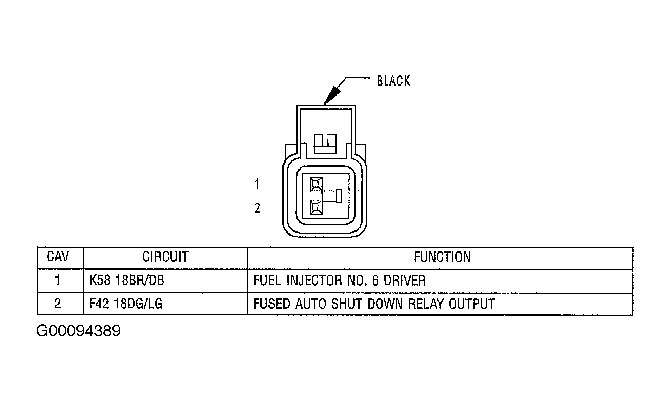

Fig 6: Identifying Fuel Injector No. 6 Harness Connector
G00094389Courtesy of DAIMLERCHRYSLER CORPORATION

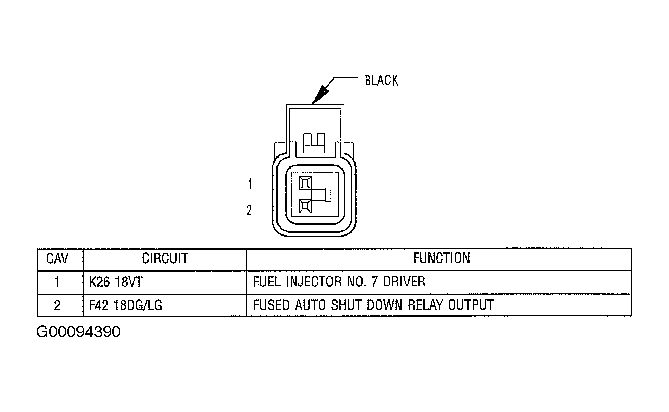

Fig 7: Identifying Fuel Injector No. 7 Harness Connector (4.7L)
G00094390Courtesy of DAIMLERCHRYSLER CORPORATION

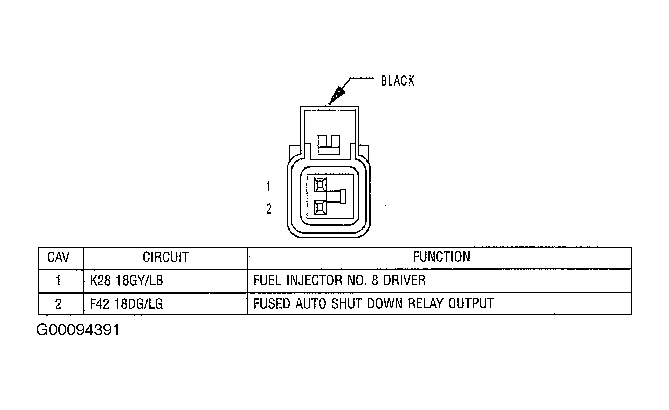

Fig 8: Identifying Fuel Injector No. 8 Harness Connector (4.7L)
G00094391Courtesy of DAIMLERCHRYSLER CORPORATION
