O2 Sensor Harness Commentary End View

Fig 1: Identifying 1/1 O2 Upstream Sensor Harness Connector
G00094402Courtesy of DAIMLERCHRYSLER CORPORATION

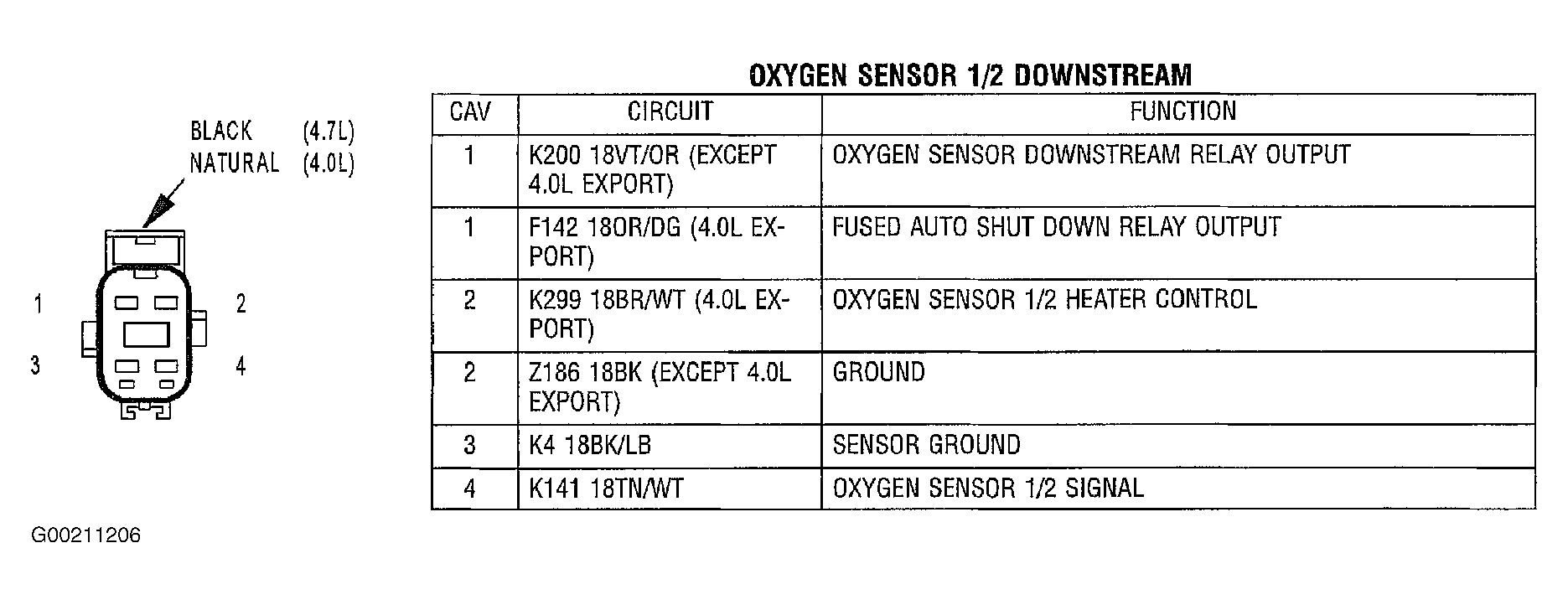

Fig 2: Identifying 1/2 O2 Downstream Sensor Harness Connector
G00211206Courtesy of CHRYSLER CORP.
Fig 3: Identifying 2/1 O2 Upstream Sensor Harness Connector
G00094404Courtesy of DAIMLERCHRYSLER CORPORATION

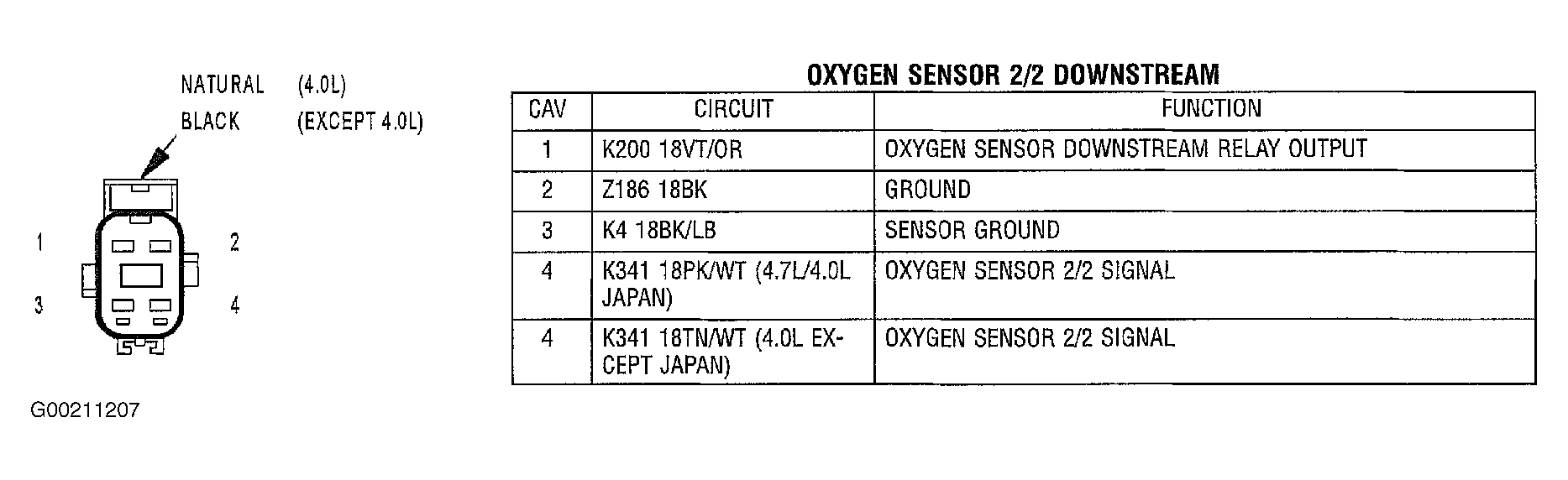

Fig 4: Identifying 2/2 O2 Downstream Sensor Harness Connector
G00211207Courtesy of CHRYSLER CORP.
