Speed Control Switch Commentary End View

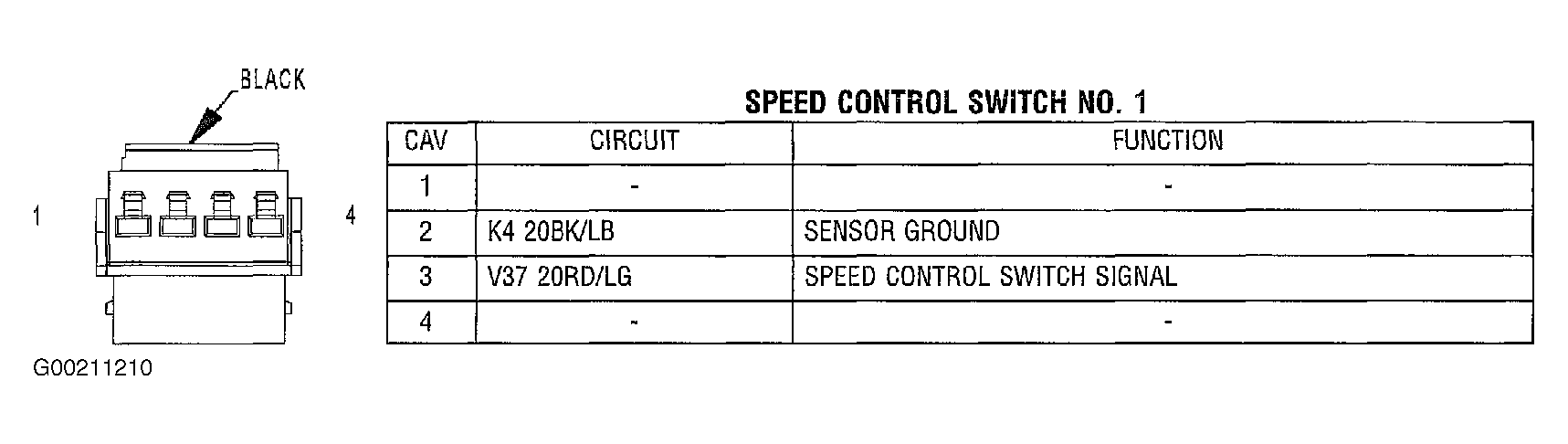

Fig 1: Identifying Speed Control Switch No.1 Harness Connector
G00211210Courtesy of CHRYSLER CORP.

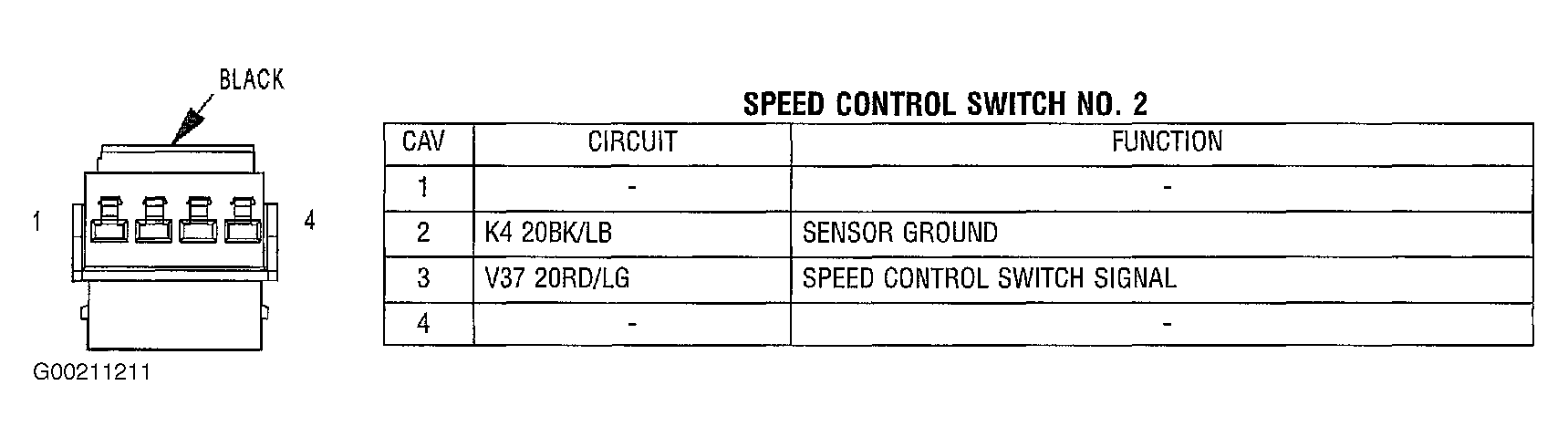

Fig 2: Identifying Speed Control Switch No.2 Harness Connector
G00211211Courtesy of CHRYSLER CORP.
