Right Rear Door Does Not Trip VTSS

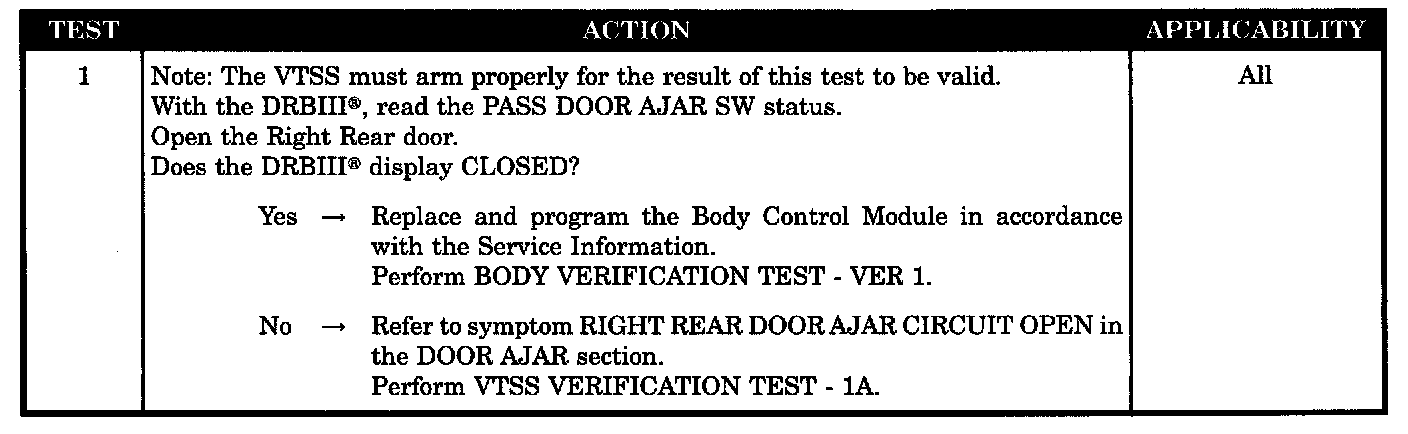

Test 1:
SYMPTOM
RIGHT REAR DOOR DOES NOT TRIP VTSS
POSSIBLE CAUSES
-
Passenger door ajar circuit malfunction
-
Body control module
