Knock Sensor Locations (3.7L)

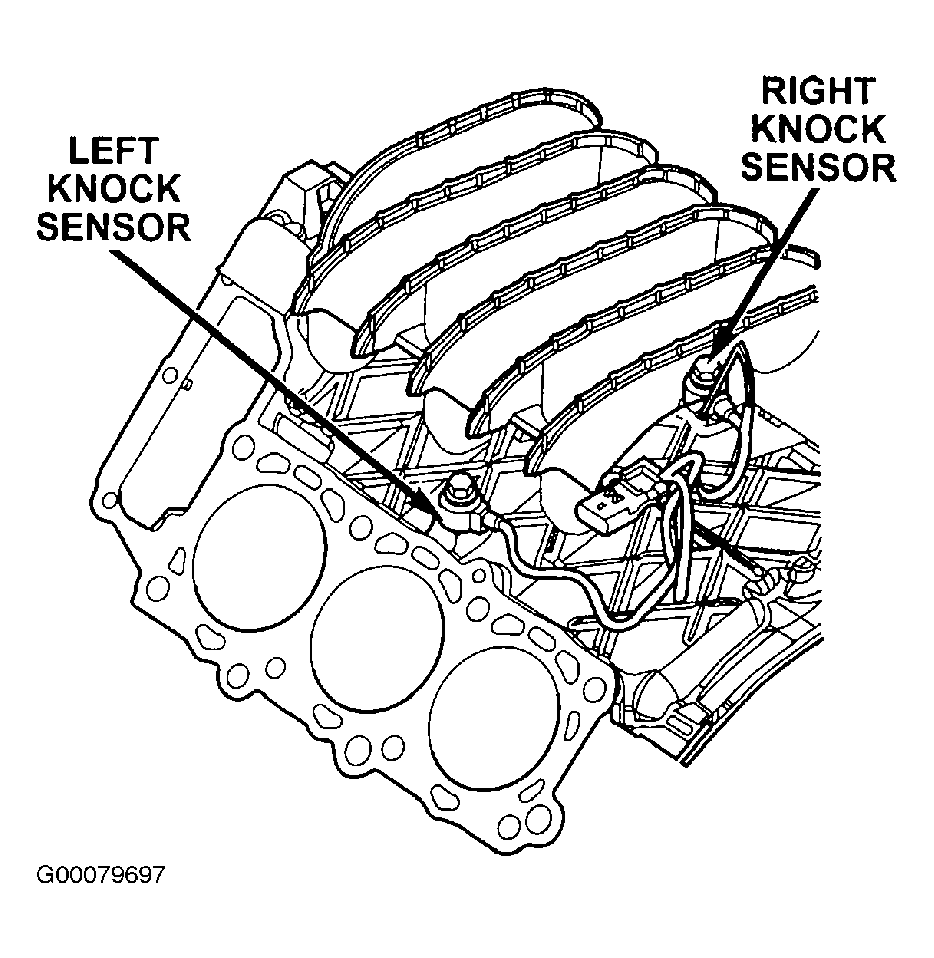

Fig 1: Locating Knock Sensors (3.7L)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
