Junction Block Outboard Fuses Identification

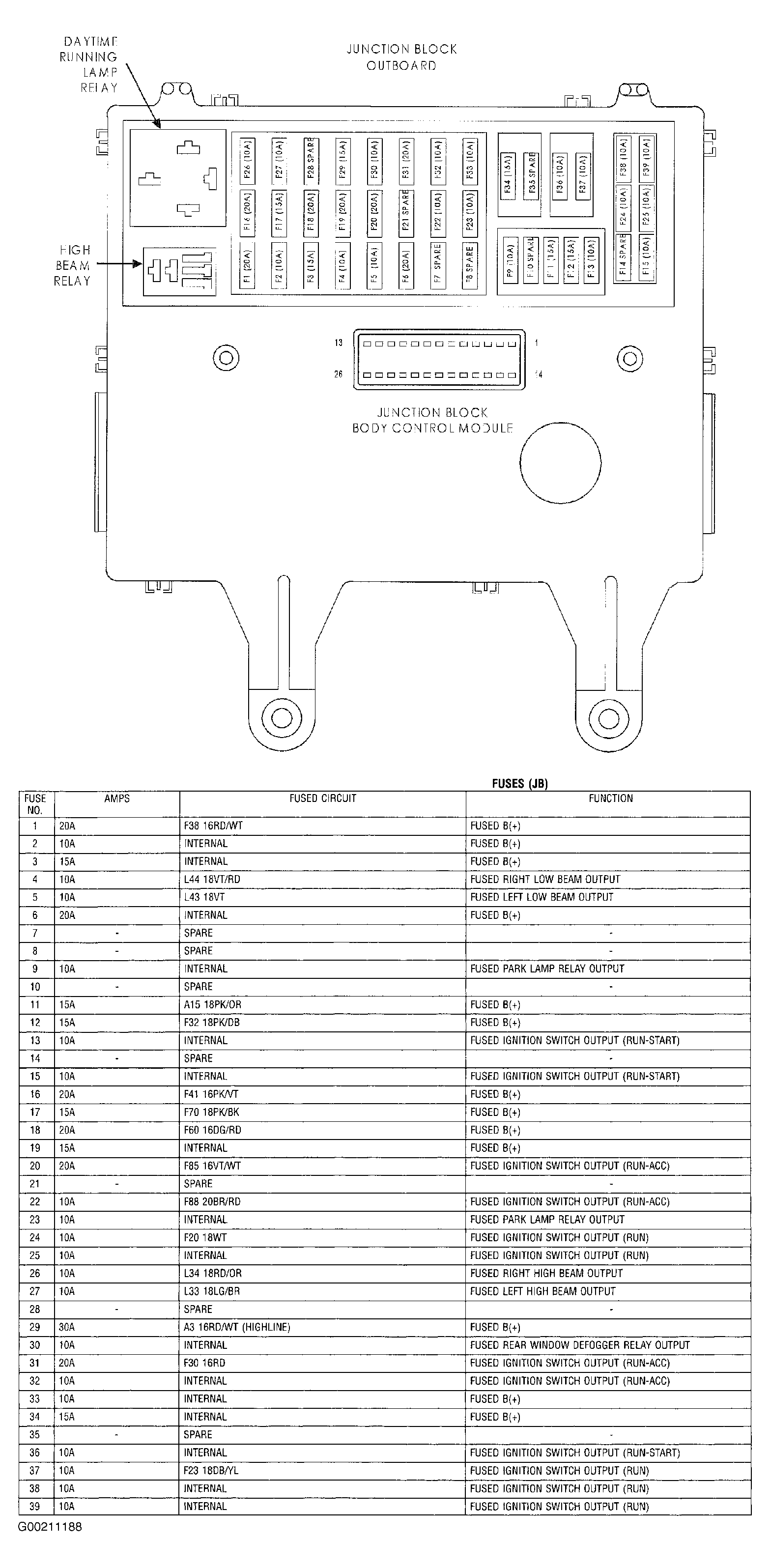

Fig 1: Identifying Junction Block Outboard Fuses
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
