Electrical Diagrams

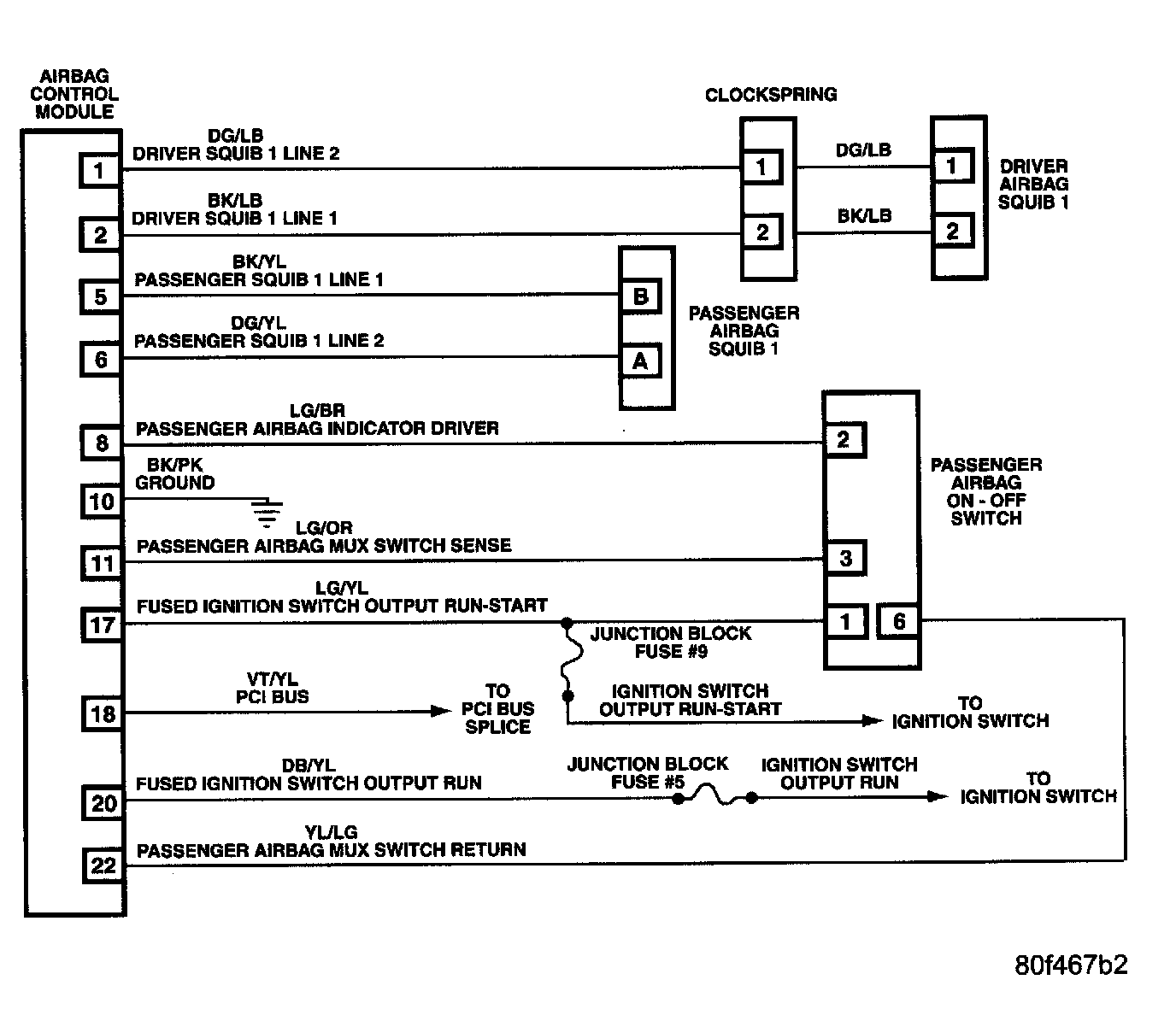

Airbag System:

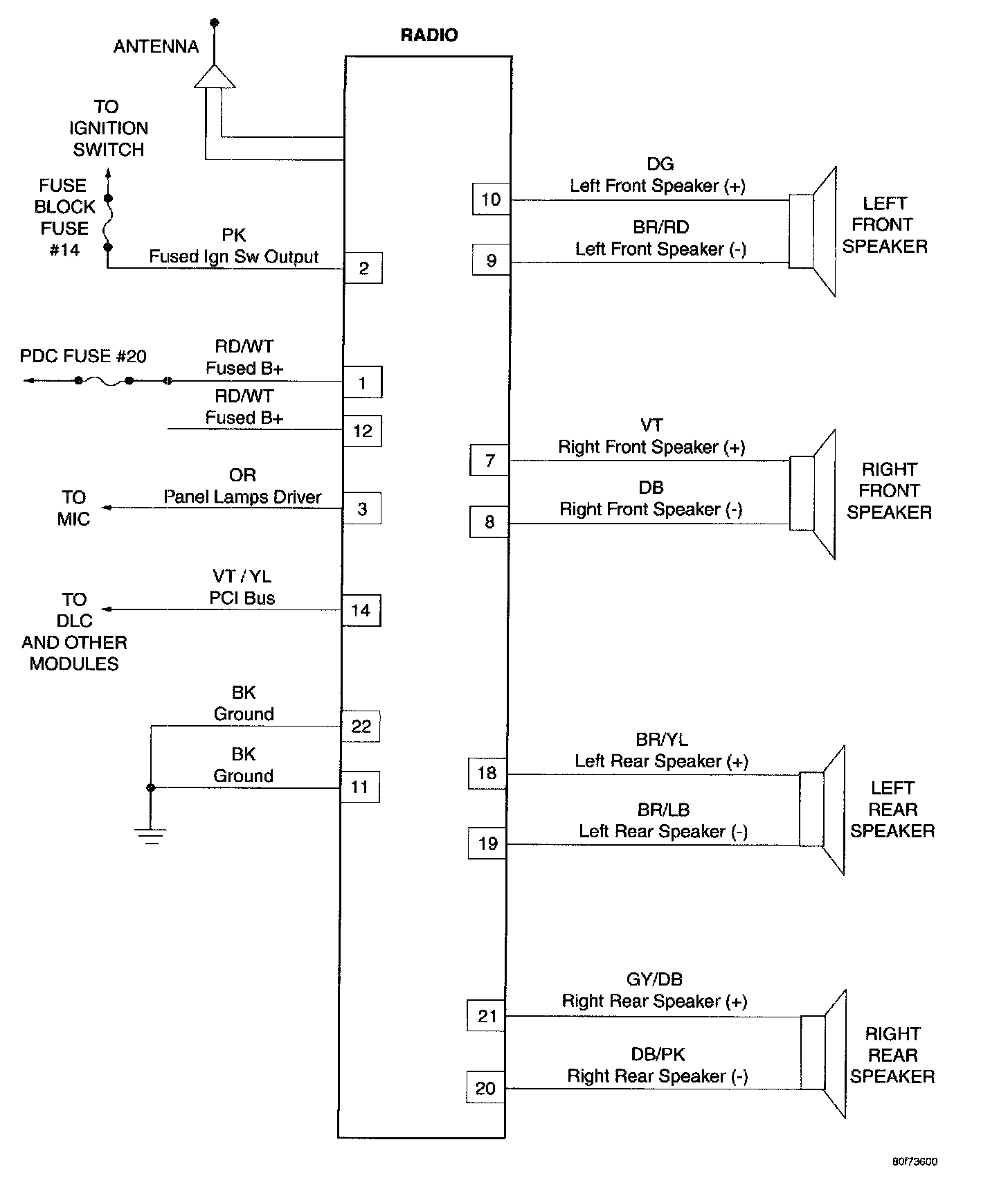

Base Audio System:

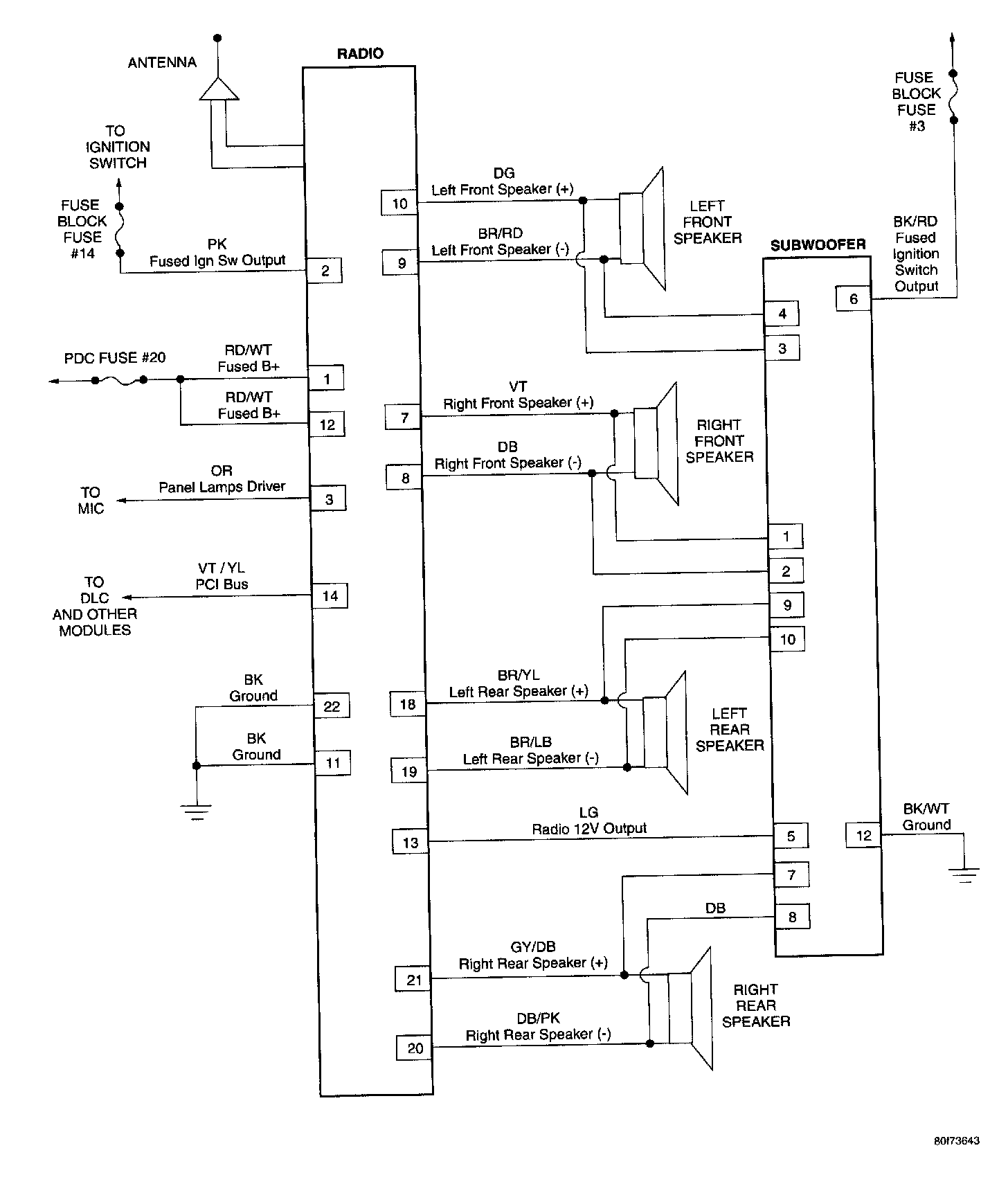

Premium Audio System:

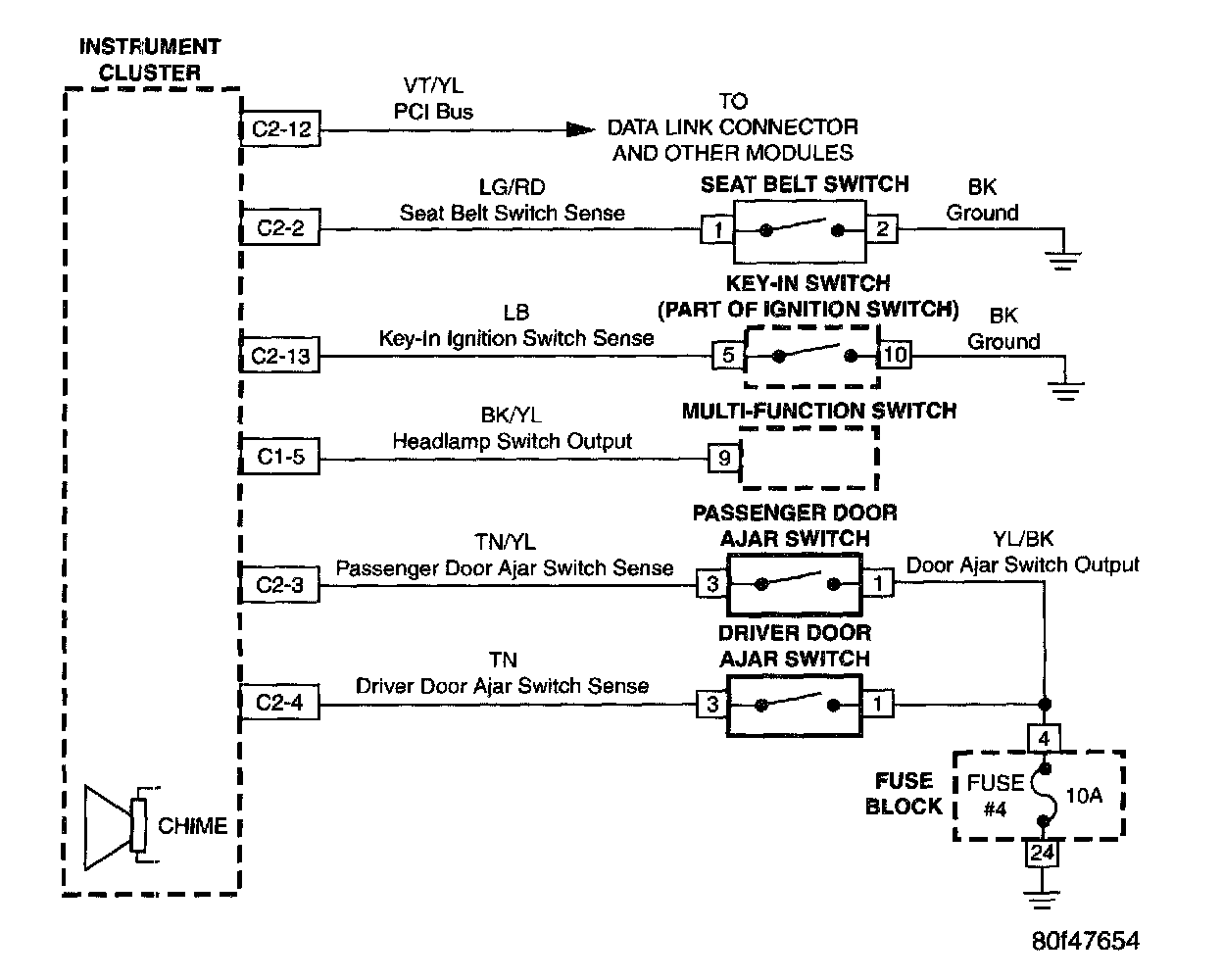

Chime System:

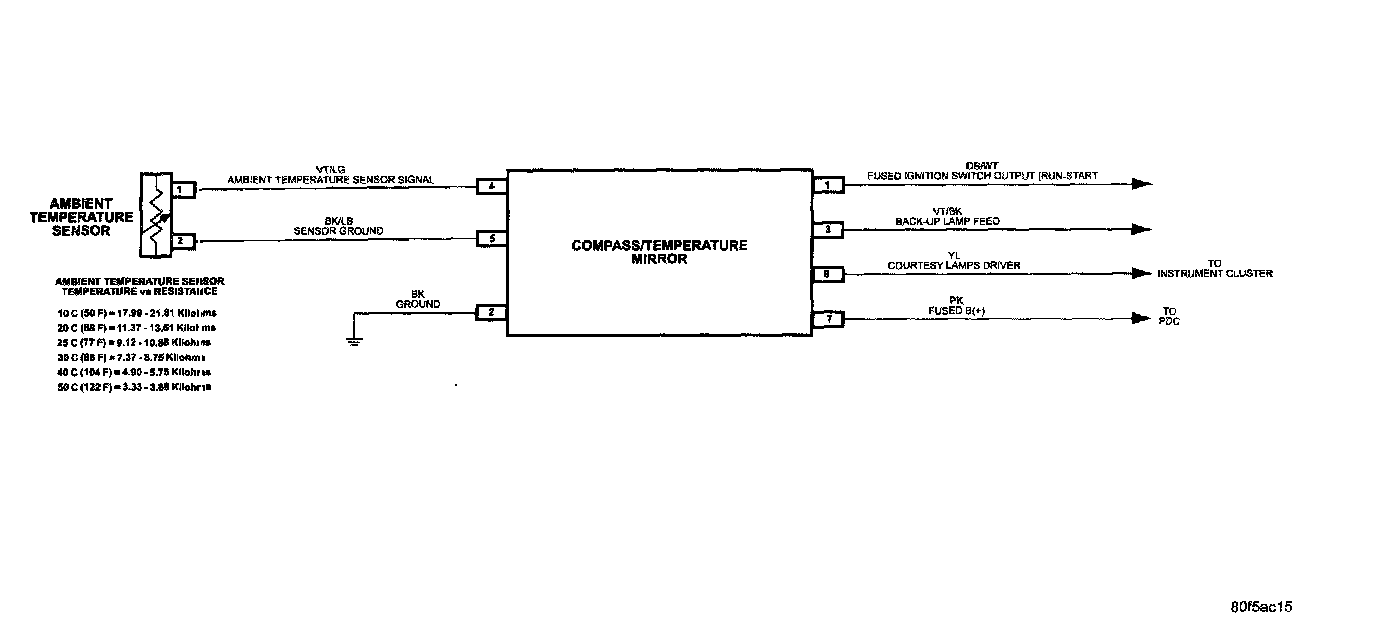

Compass/Temperature Mirror:

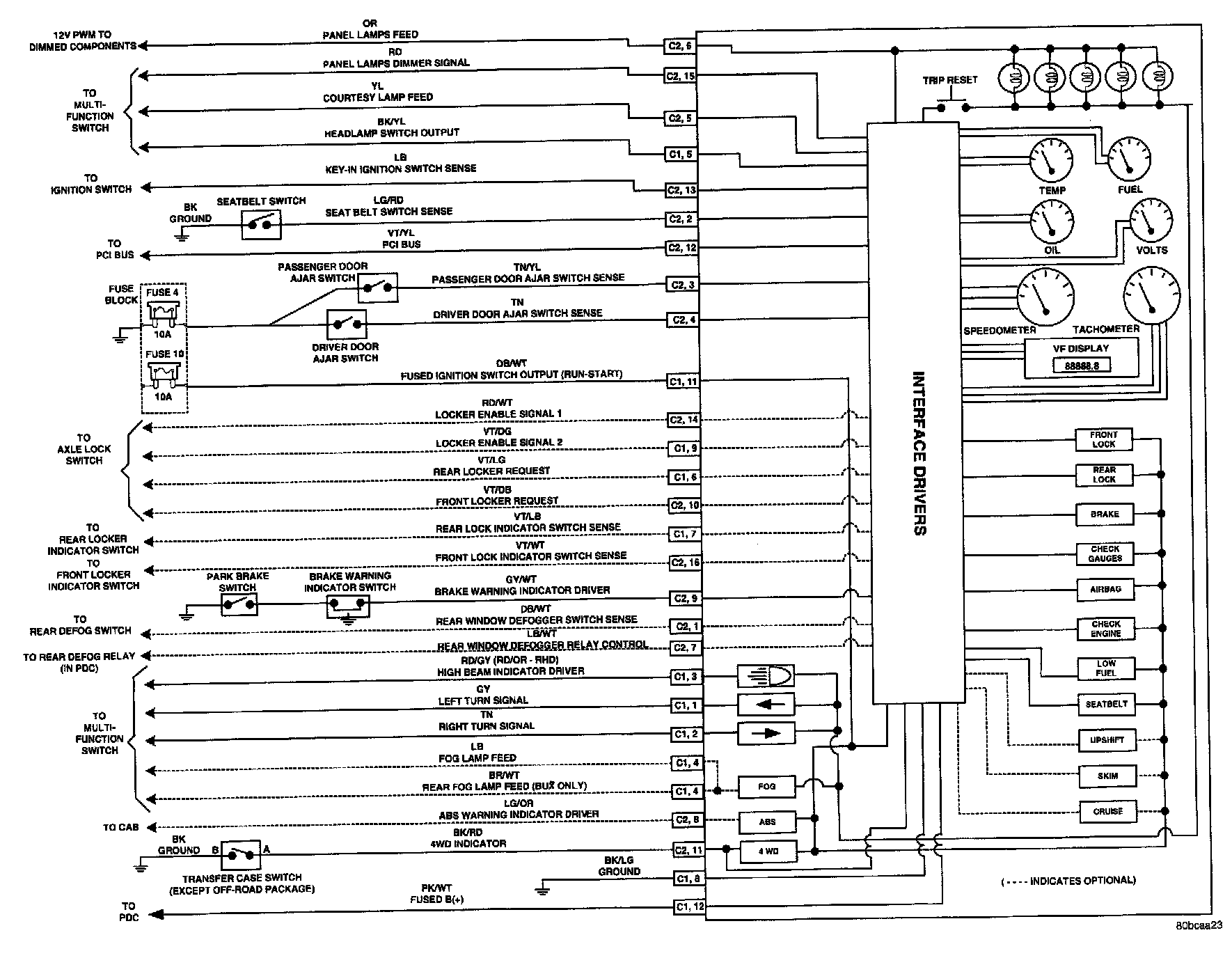

Instrument Cluster:

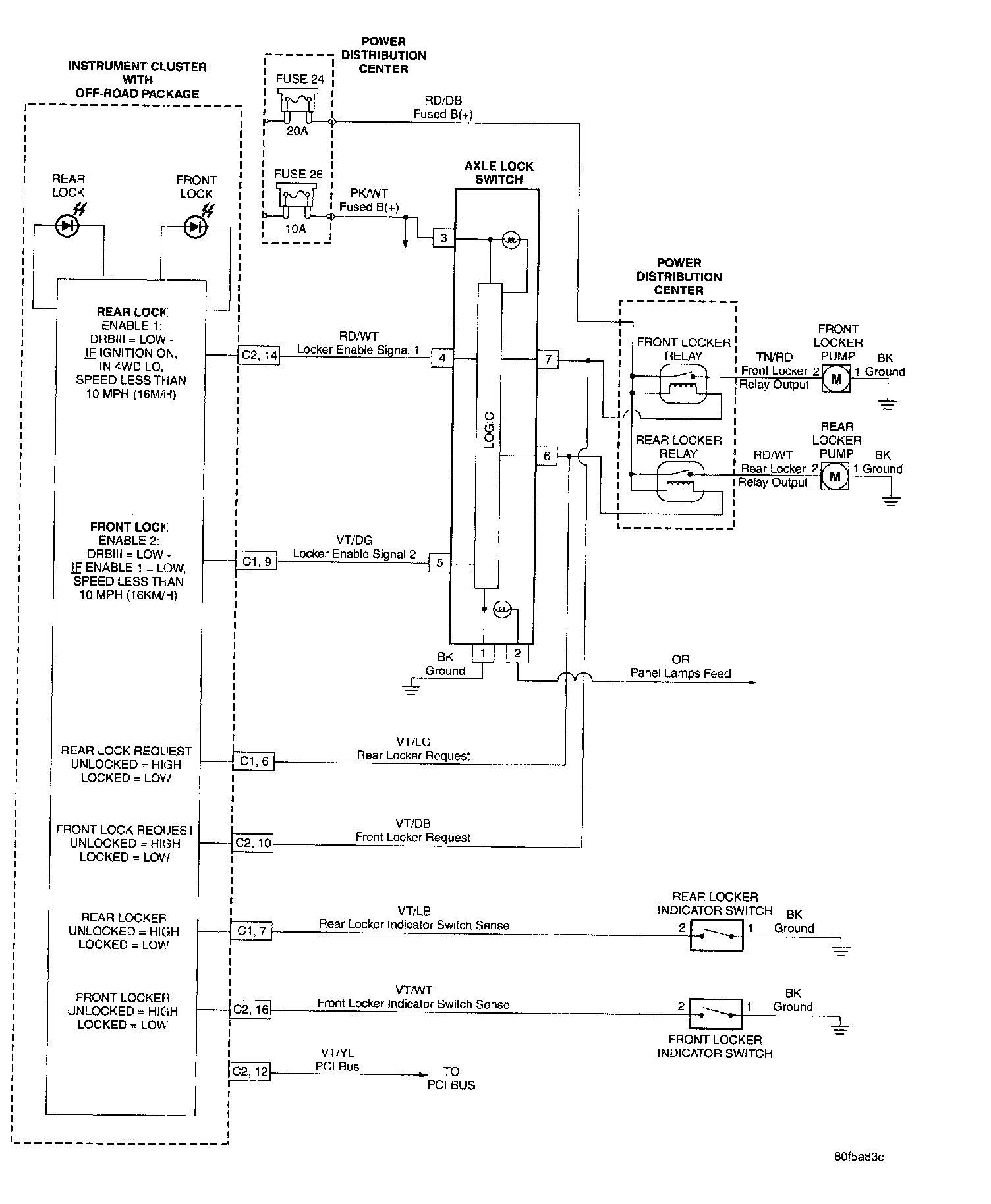

Instrument Cluster/Axle Locker System:

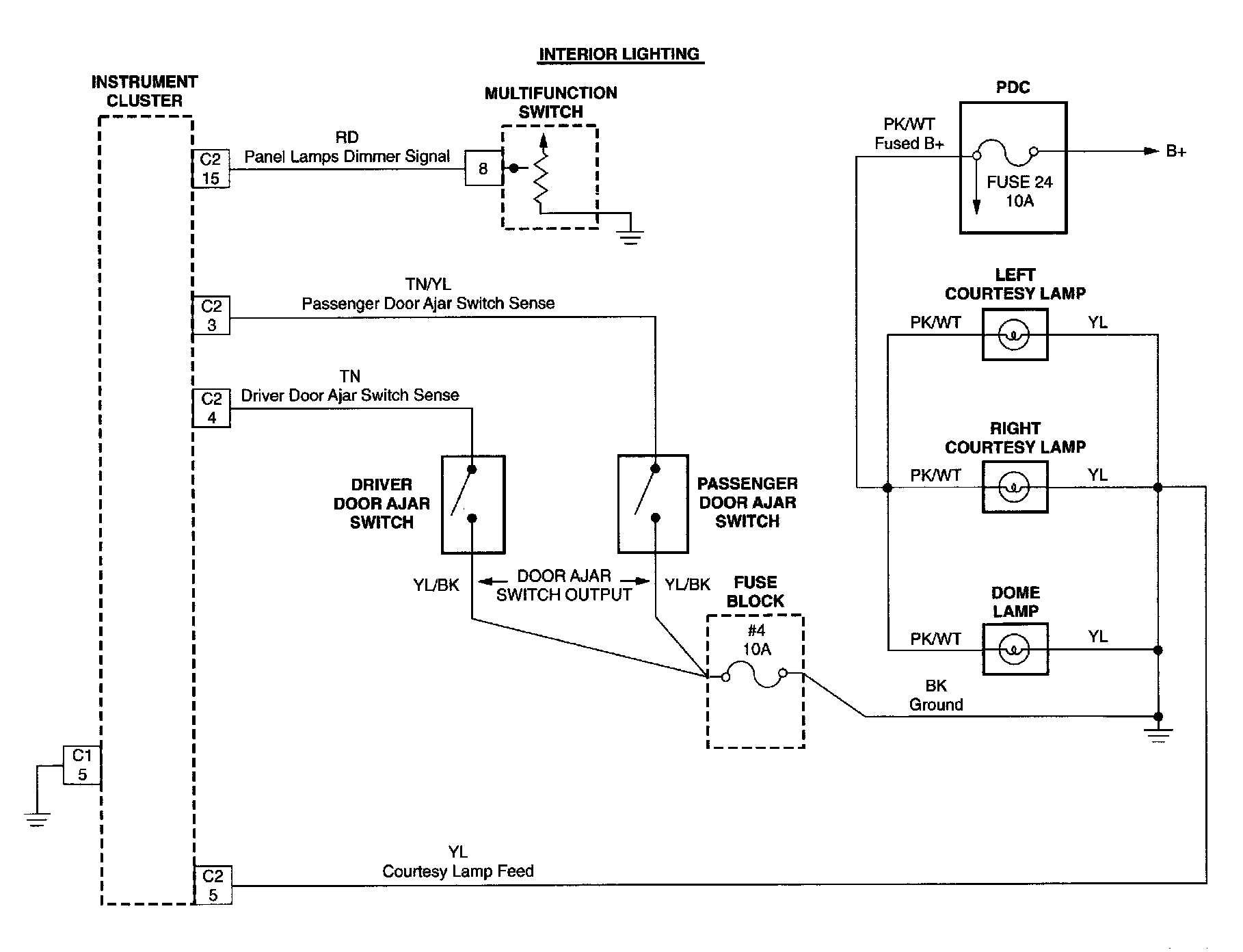

Interior Lighting:

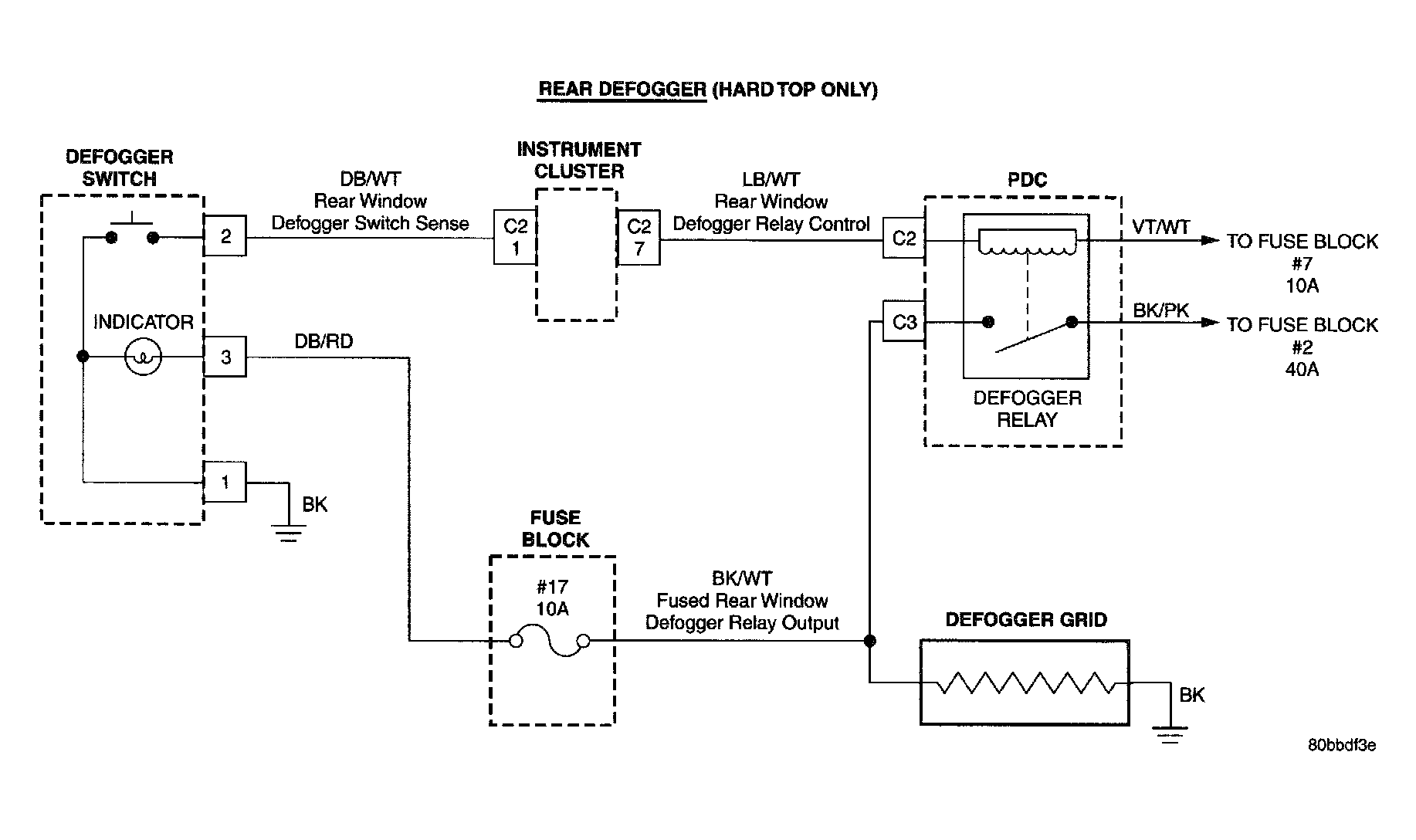

Rear Defogger:

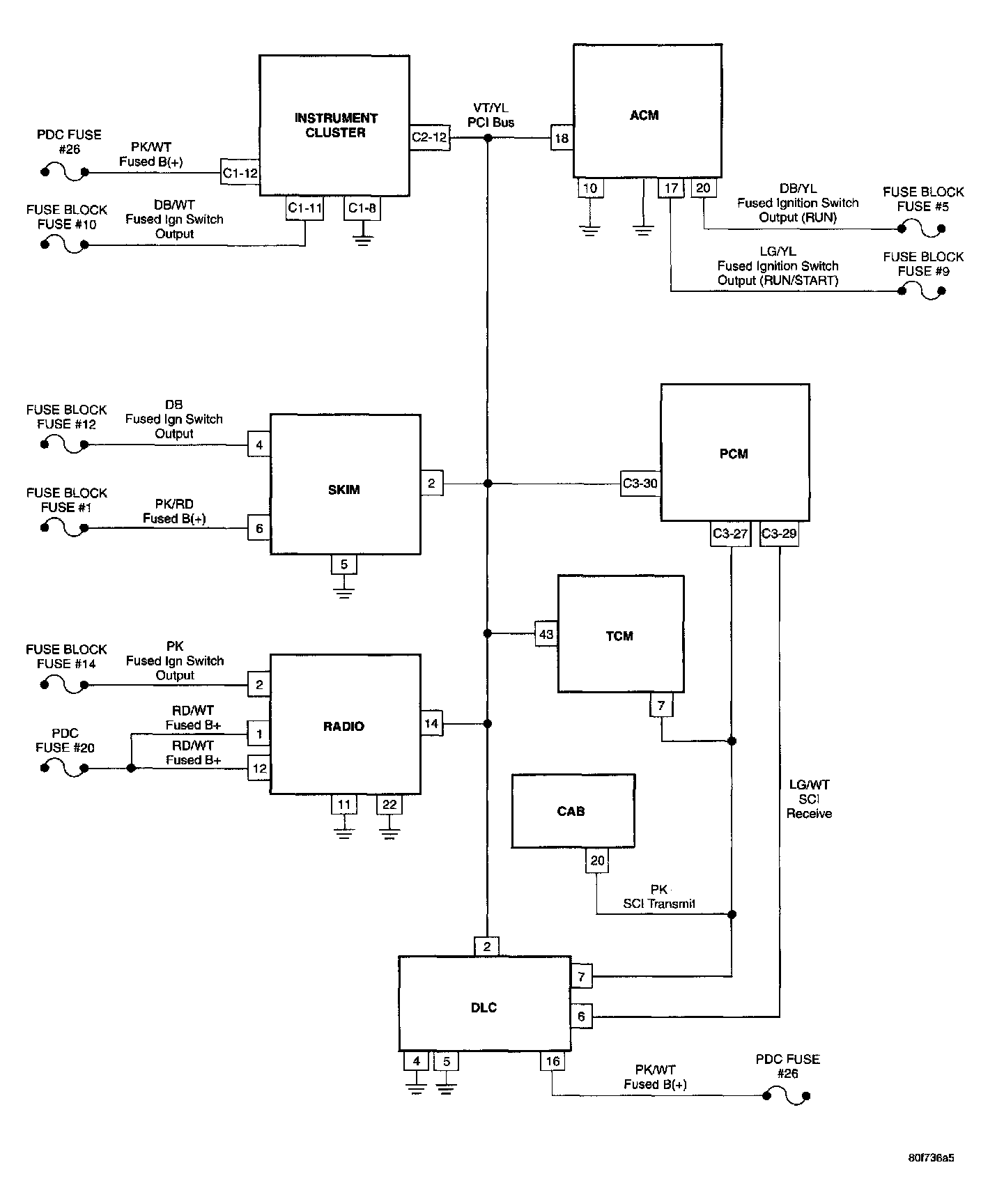

Vehicle Communications:
