Rear Defogger Switch Indicator Inoperative

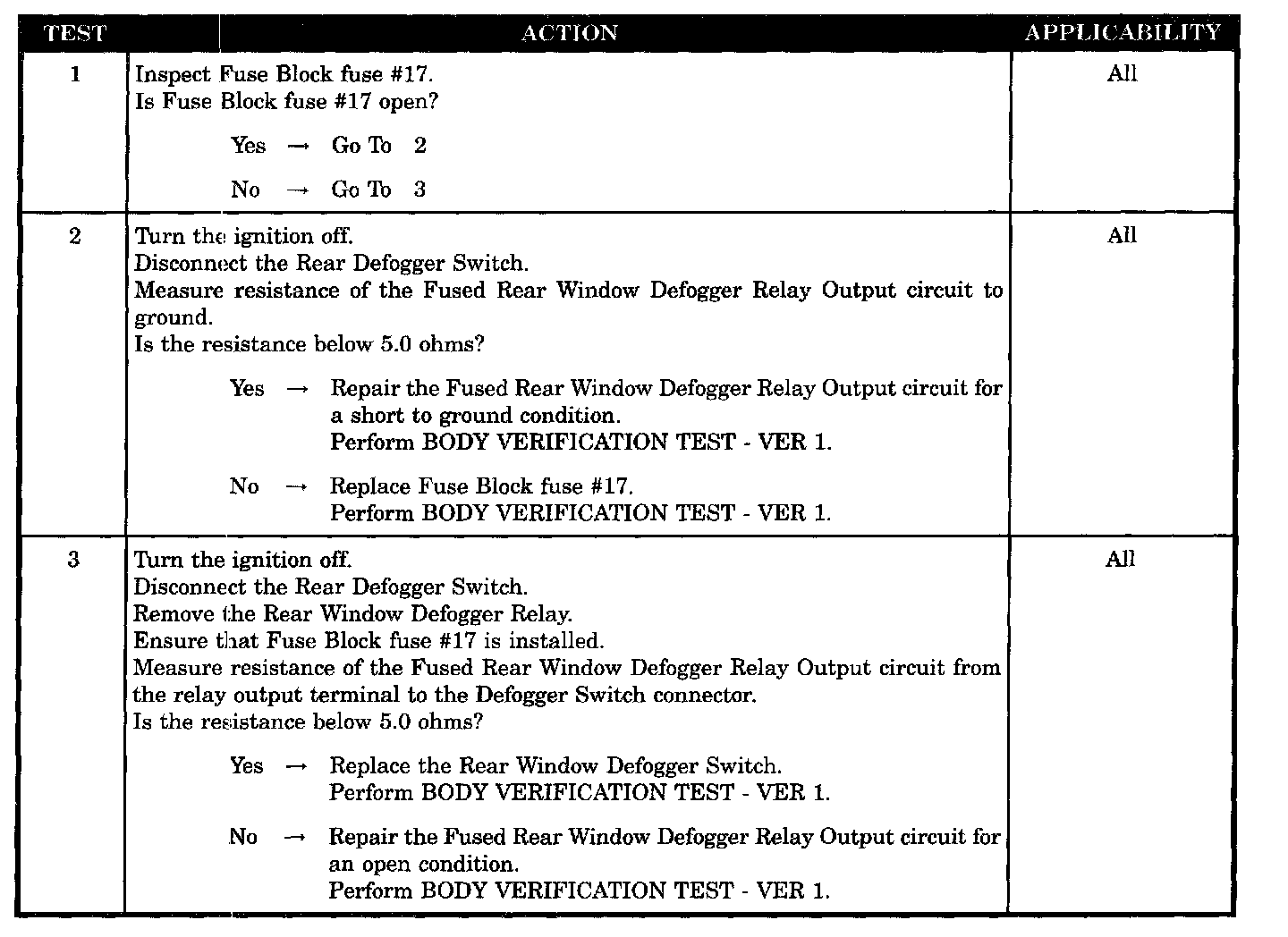

Test 1 - 3:






SYMPTOM
REAR DEFOGGER SWITCH INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Fused rear window defogger relay output CKT shorted to ground
- Fuse block Fuse #17
- Fused rear window defogger relay output CKT open
- Defogger switch
