Rear Fog Lamp Indicator Inoperative - BUX Only

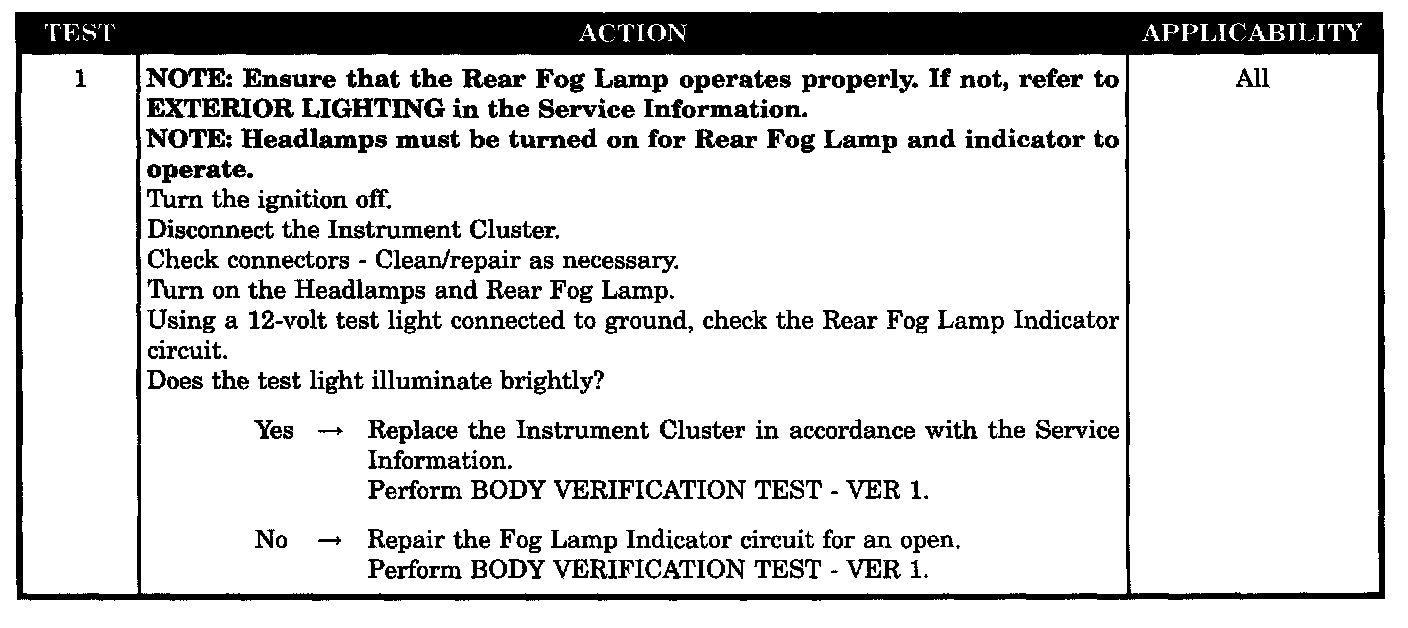

Test 1:
SYMPTOM
REAR FOG LAMP INDICATOR INOPERATIVE - BUX ONLY
POSSIBLE CAUSES
-
Rear fog lamp indicator circuit open instrument cluster
