Front Wiper Module: Removal
- Remove the front wiper arms from the wiper pivots. (Refer to FRONT WIPER ARM - REMOVAL
).
- Unlatch, open and support the hood.
- Disconnect and isolate the battery negative cable.
- Remove the cowl plenum cover/grille panel from over the cowl plenum. (Refer to
COWL GRILLE AND SCREEN - REMOVAL
).

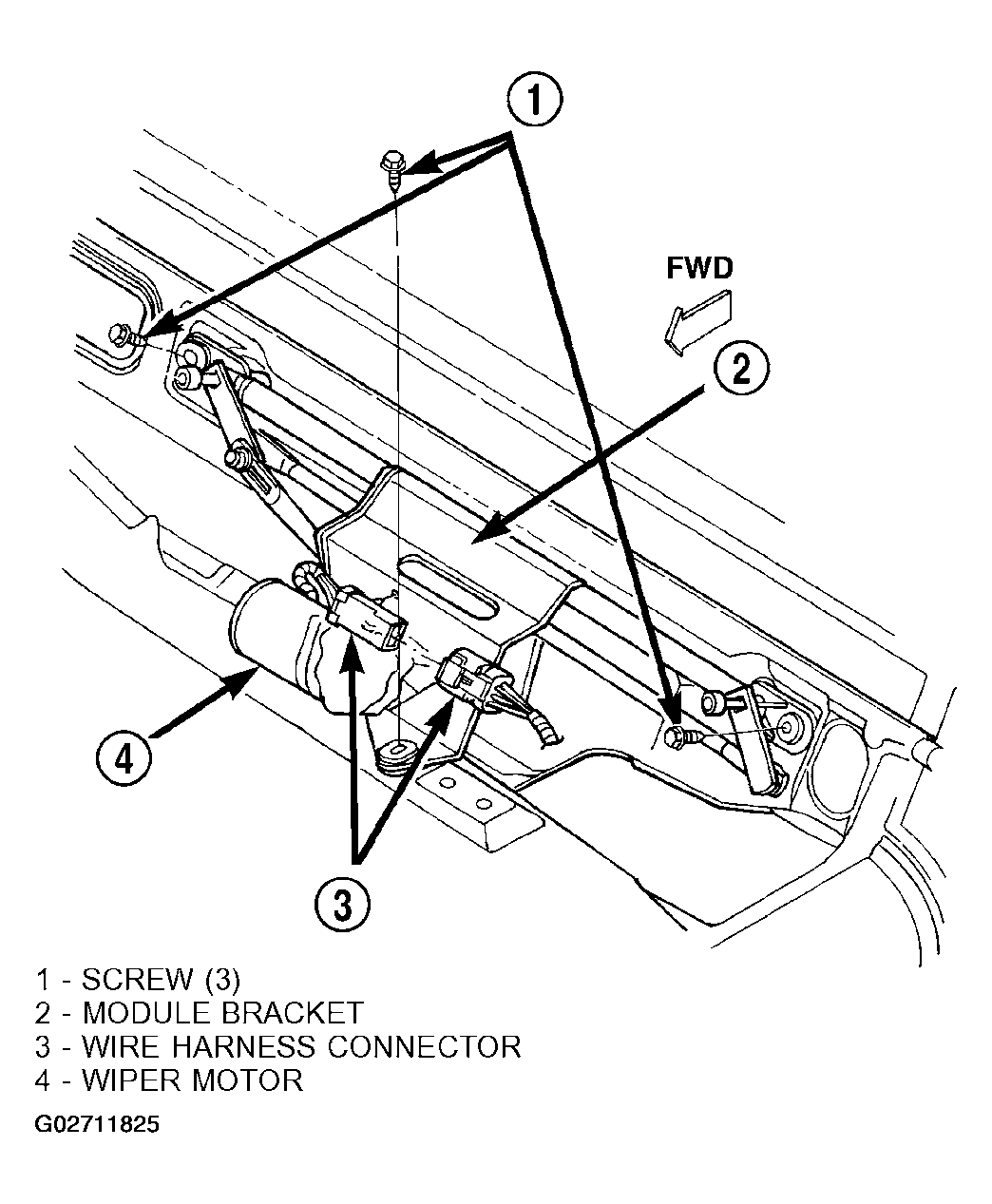

- Disconnect the body wire harness connector for the front wiper motor from the motor pigtail wire connector (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the three screws that secure the front wiper module mounting bracket to the cowl plenum panel.
- Remove the front wiper module from the cowl plenum panel as a unit.
