Driver Door Ajar Circuit Shorted to Ground

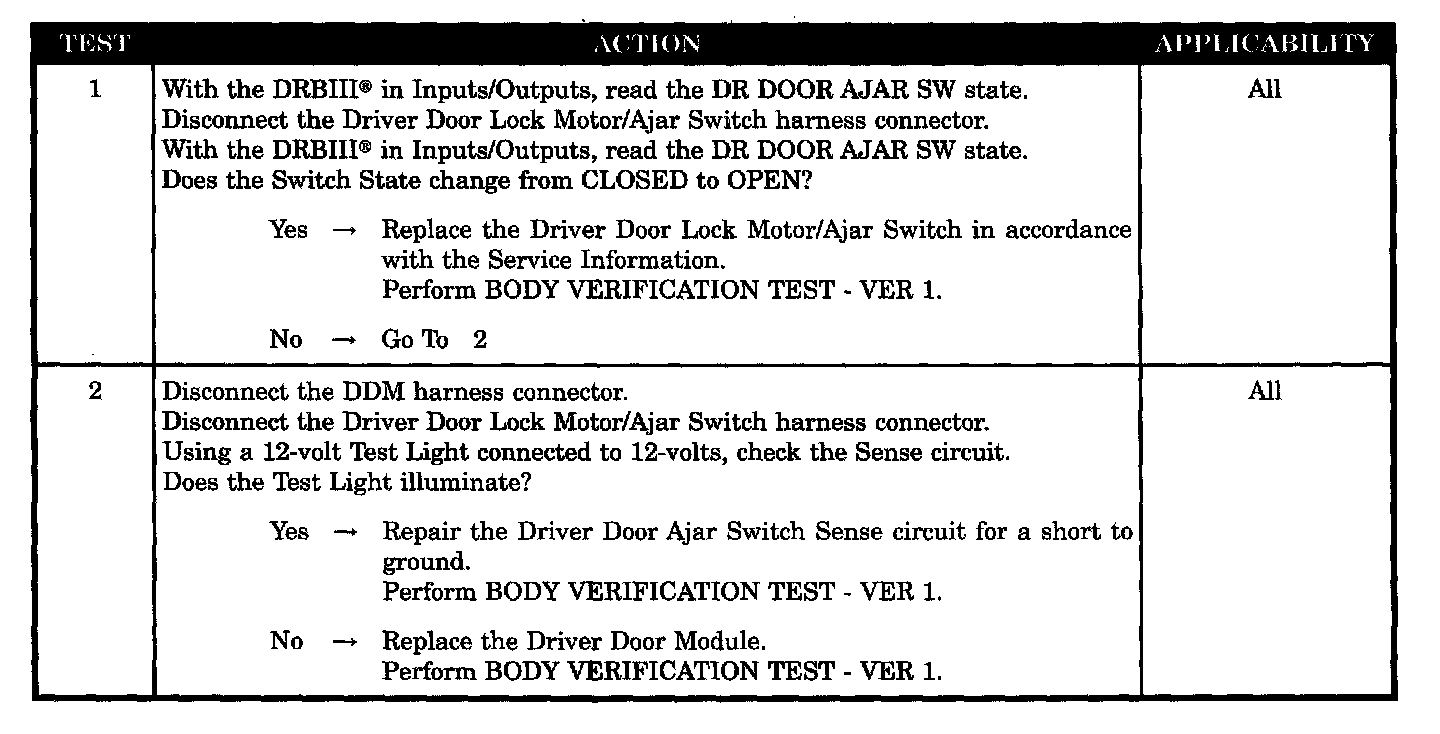

Test 1 - 2:






SYMPTOM
DRIVER DOOR AJAR CIRCUIT SHORTED TO GROUND

POSSIBLE CAUSES
- Driver door lock motor/ajar switch shorted to ground
- Driver door ajar switch sense CKT shorted to ground
- Driver door module
