Overhead, Rear and Liftgate Lamps Inoperative

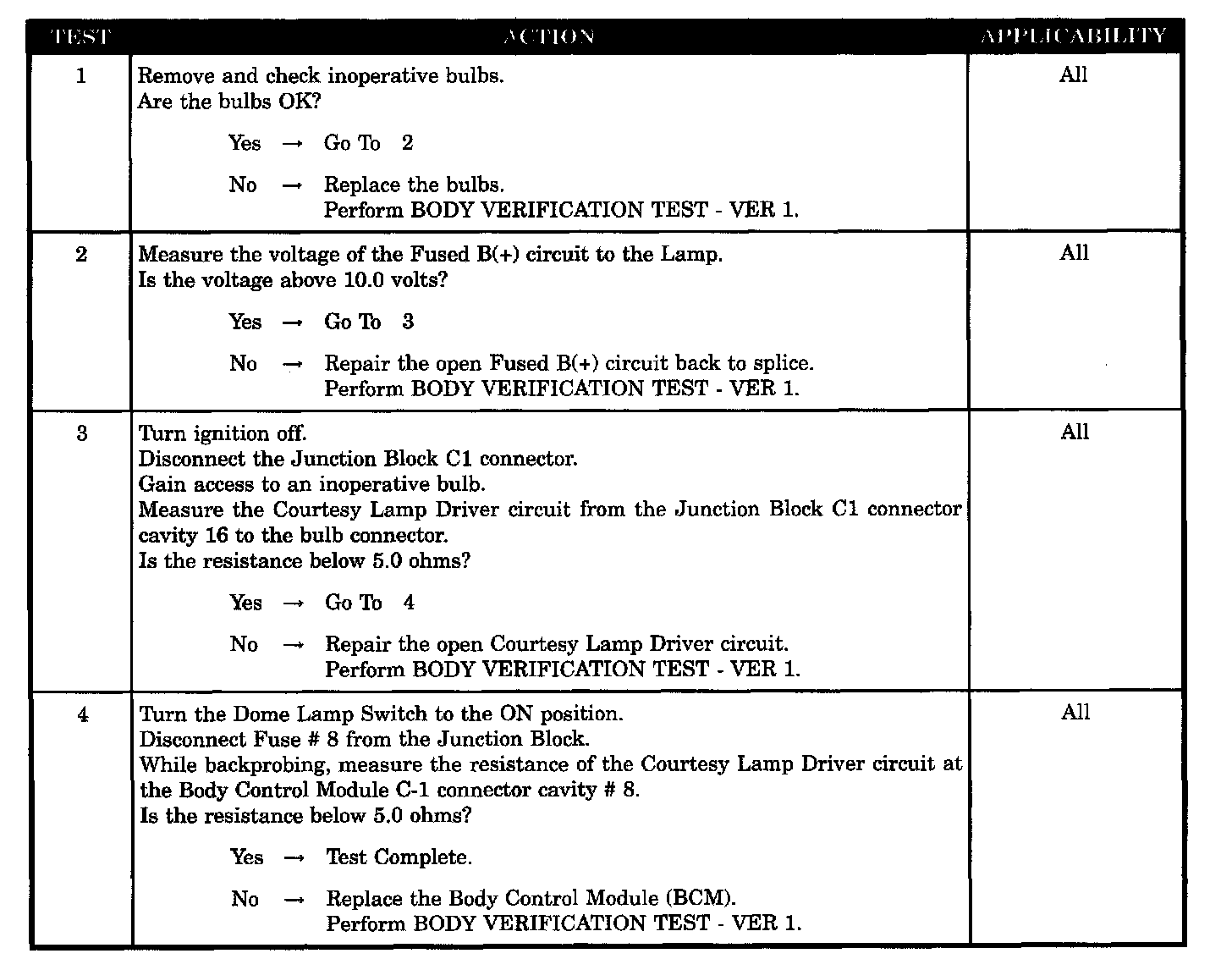

Test 1 - 4:






SYMPTOM
OVERHEAD, REAR AND LIFTGATE LAMPS INOPERATIVE

POSSIBLE CAUSES
- Bulbs
- Open fused B(+)
- Courtesy lamp driver circuit open
- BCM courtesy lamp driver
