Auto Headlamps Will Not Turn Off

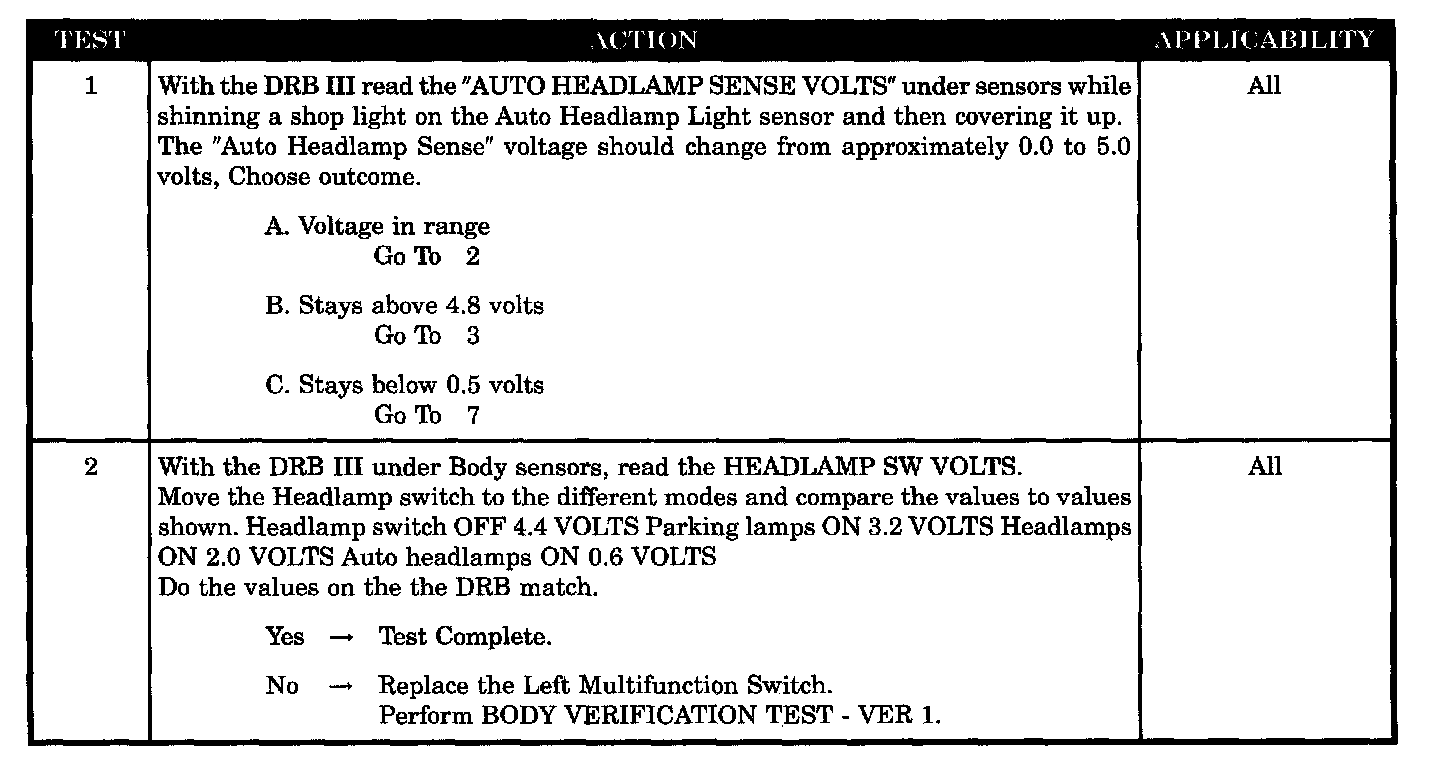

Test 1 - 2:

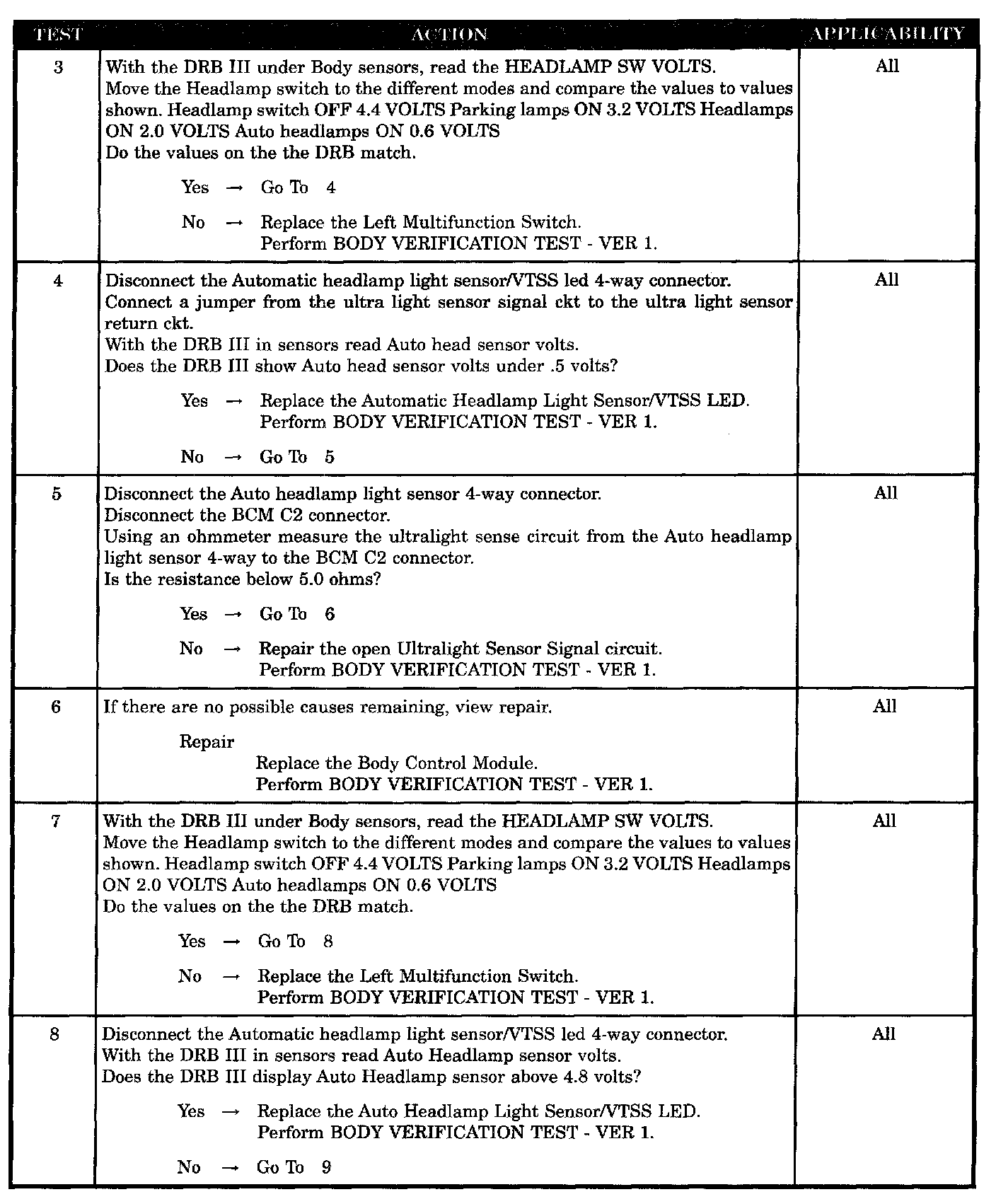

Test 3 - 8:

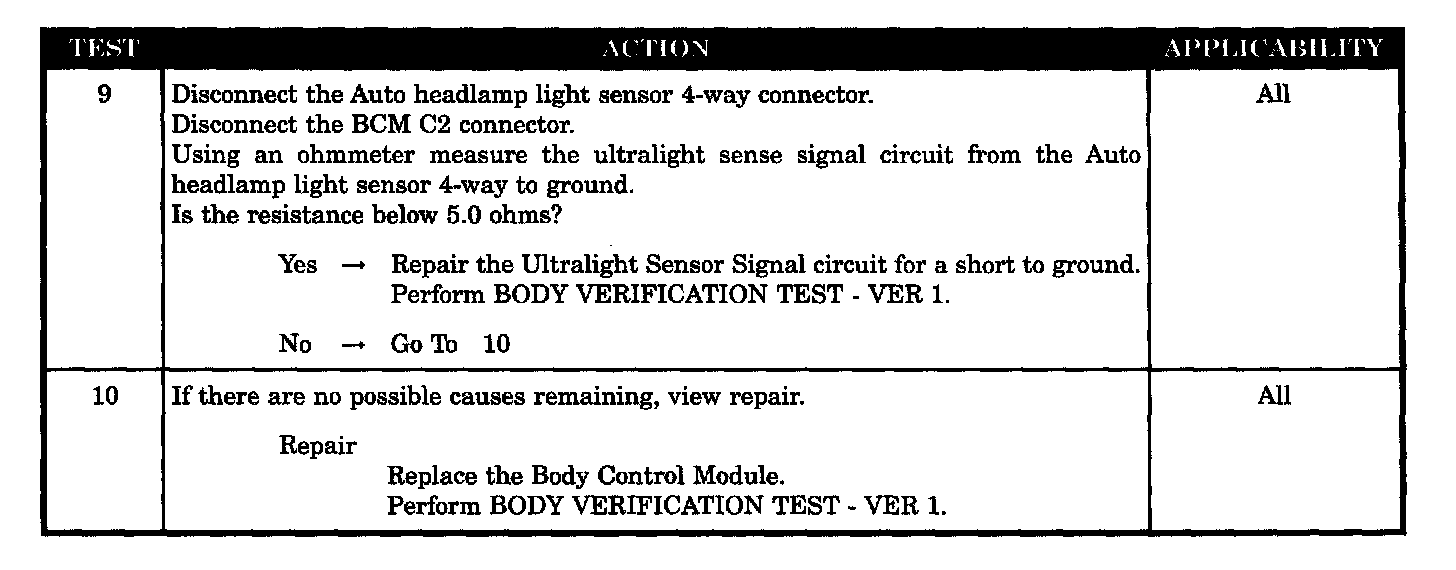

Test 9 - 10:






SYMPTOM
AUTO HEADLAMPS WILL NOT TURN OFF

POSSIBLE CAUSES
- Headlamp switch function
- Automatic headlamp light sensor open
- Ultralight sensor signal open
- BCM ultralight sense circuit open
- Auto headlamp sensor circuit shorted
- Ultralight sensor signal shorted to ground
- BCM ultralight sense circuit shorted
