VTSS Does Not Trip From Right Rear Door

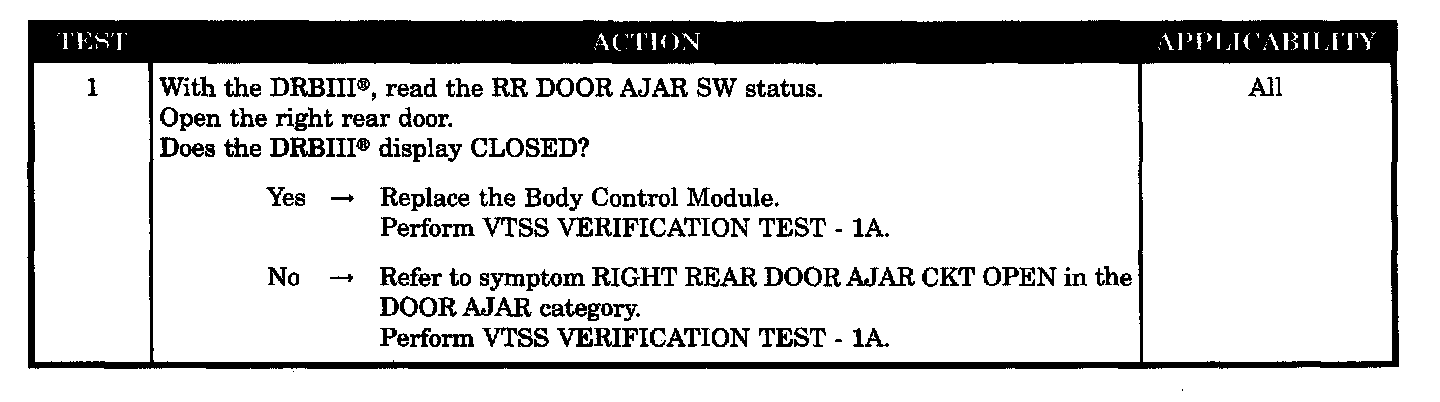

Test 1:






SYMPTOM
VTSS DOES NOT TRIP FROM RIGHT REAR DOOR

POSSIBLE CAUSES
- Check DRBIII(R) for right rear door ajar response
- BCM - No VTSS trip from RR door
