Passenger Window Inoperative From Both Switches

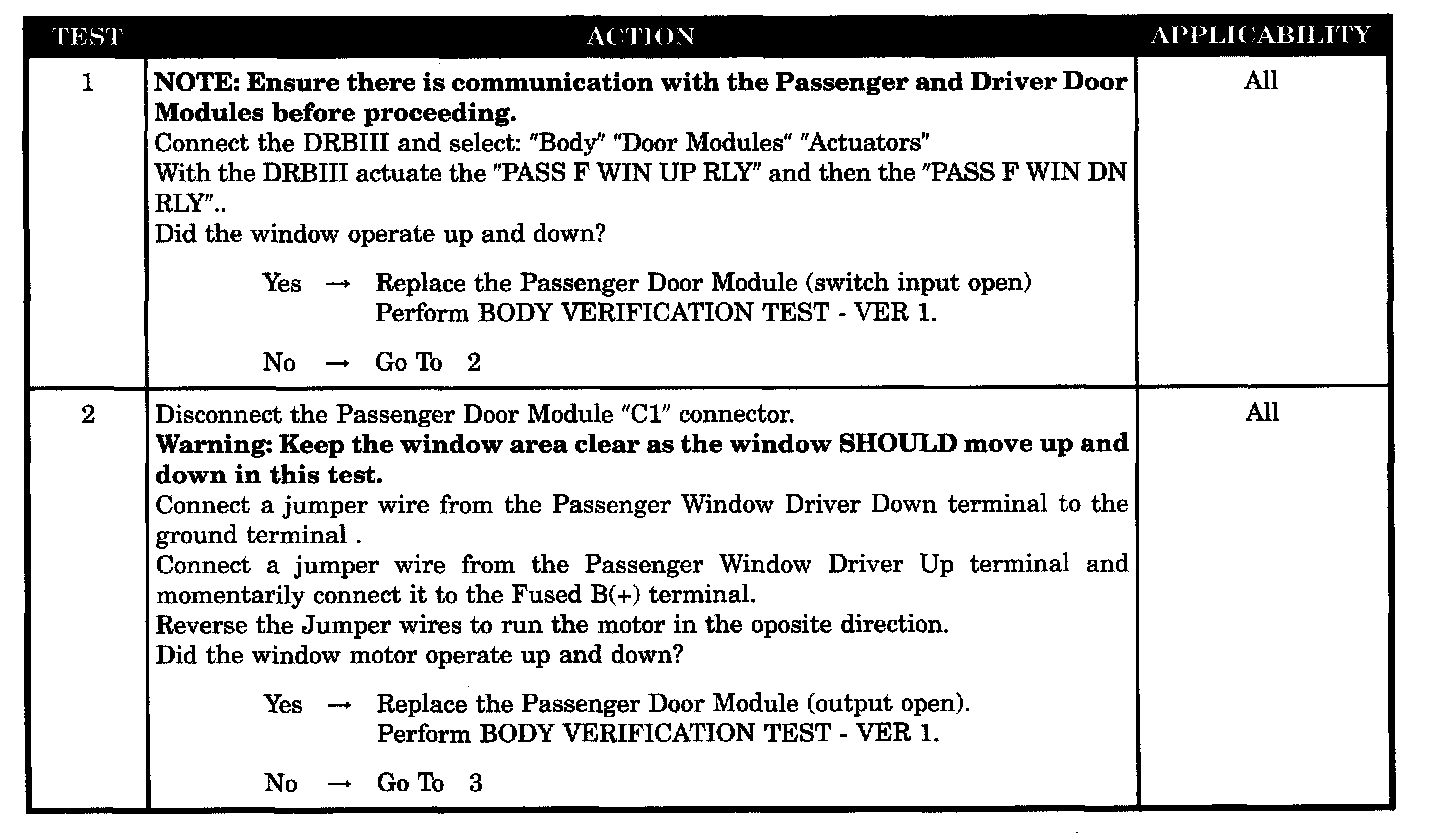

Test 1 - 2:

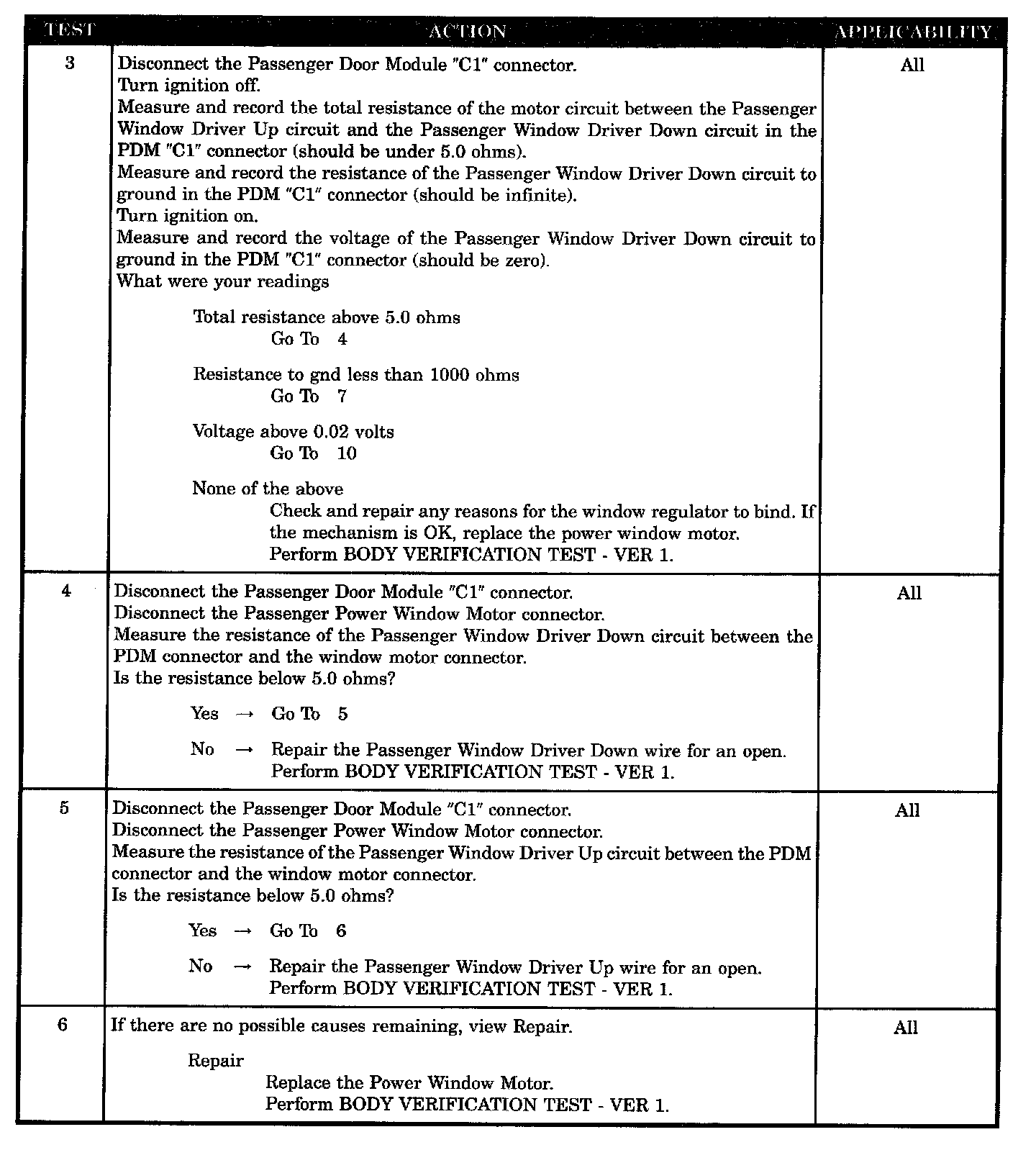

Test 3 - 6:

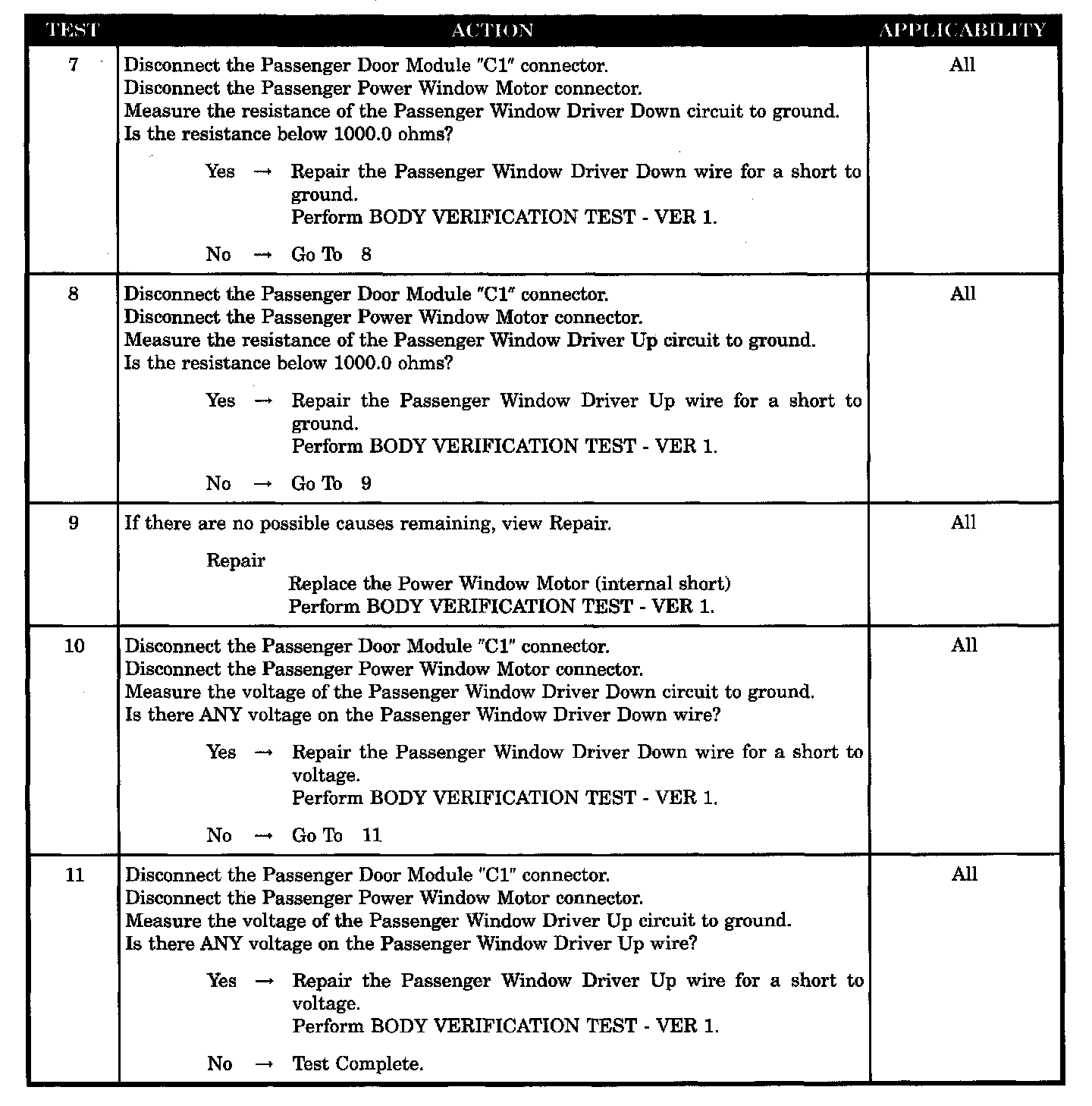

Test 7 - 11:

SYMPTOM
PASSENGER WINDOW INOPERATIVE FROM BOTH SWITCHES

POSSIBLE CAUSES
- Passenger door module - open switch
- Passenger door module - output open
- Passenger motor circuit check
- Passenger window driver down wire open
- Passenger window driver up wire open
- Passenger window driver down shorted to ground
- Passenger window driver up shorted to ground
- Passenger window driver down shorted to voltage
- Passenger window driver up shorted to voltage
- Window motor open
- Window motor short to ground
