Memory Heated Seat/Mirror Module: Removal
- Disconnect and isolate the battery negative cable.
- Remove the driver side front bucket seat from the power seat track unit. Refer to SEAT TRACK ADJUSTER
.

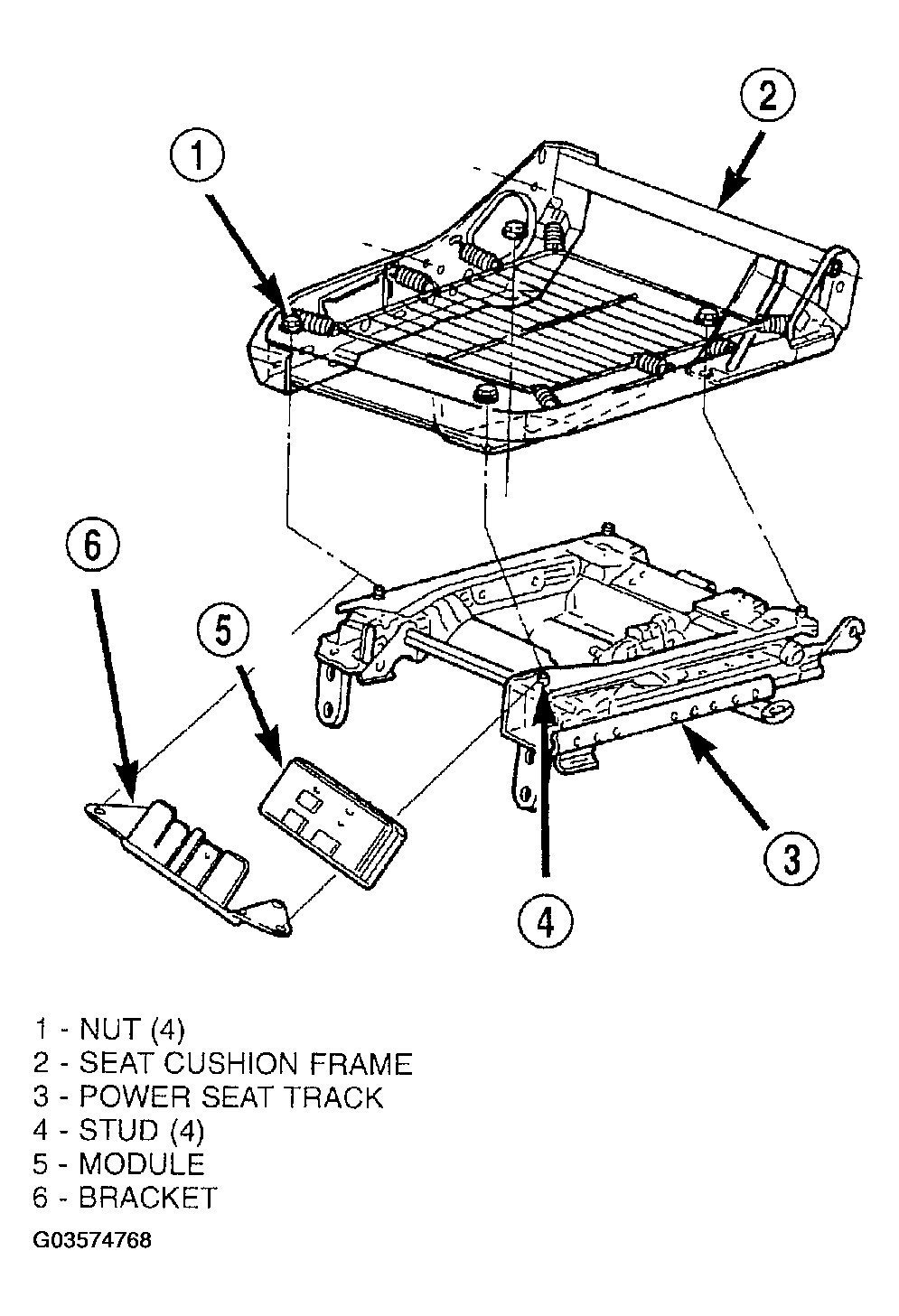

- Lift the heated seat module off of the power seat track and disconnect the power seat wire harness connectors (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the module from the bracket.
