Description - 4.7L

The Camshaft Position Sensor (CMP) on the 4.7L V-8 engine is bolted to the front/top of the right cylinder head (Fig 1 ).

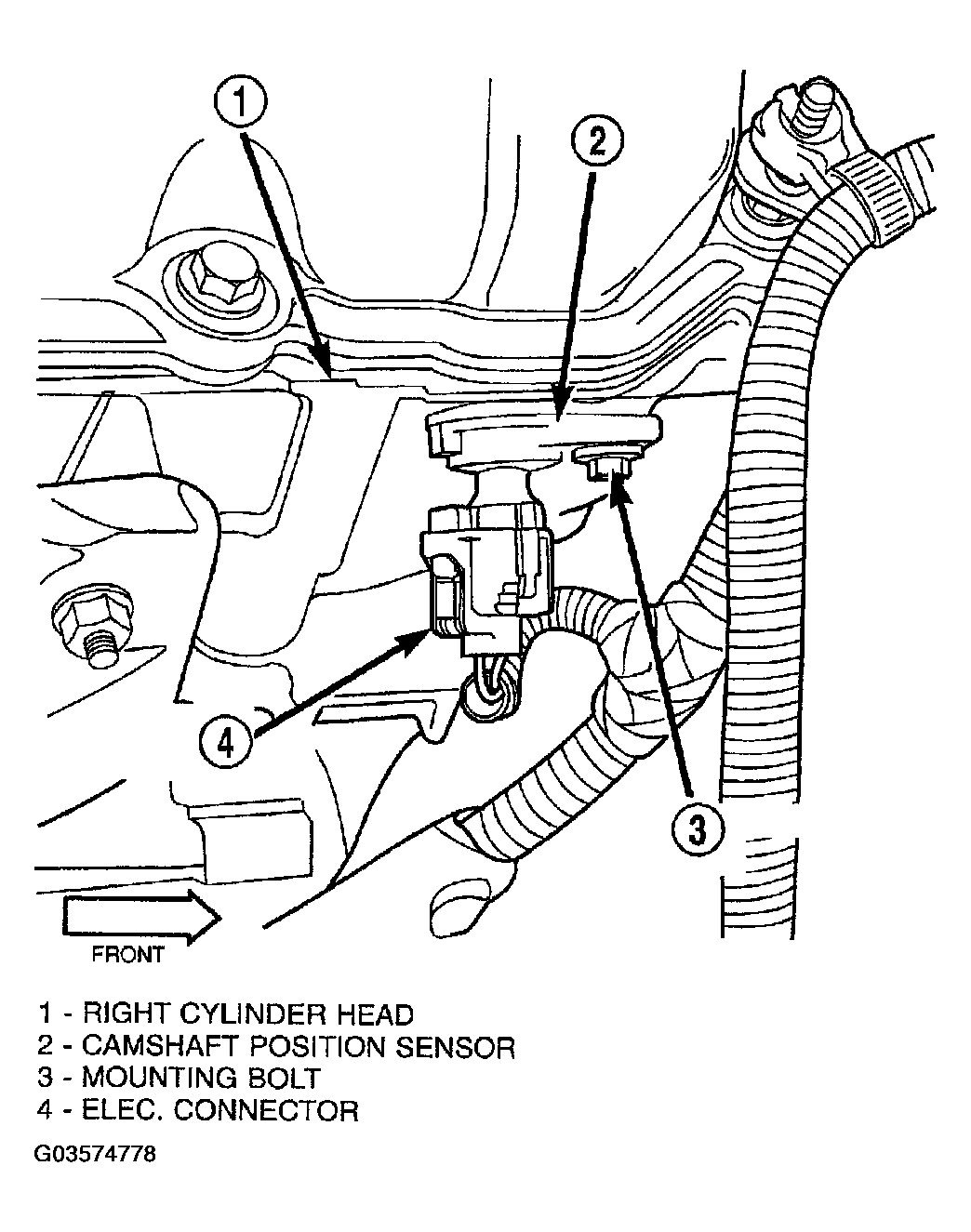

Fig 1: CMP Location - 4.7L Engine

Courtesy of DAIMLERCHRYSLER CORP.
