Verification Tests: Powertrain

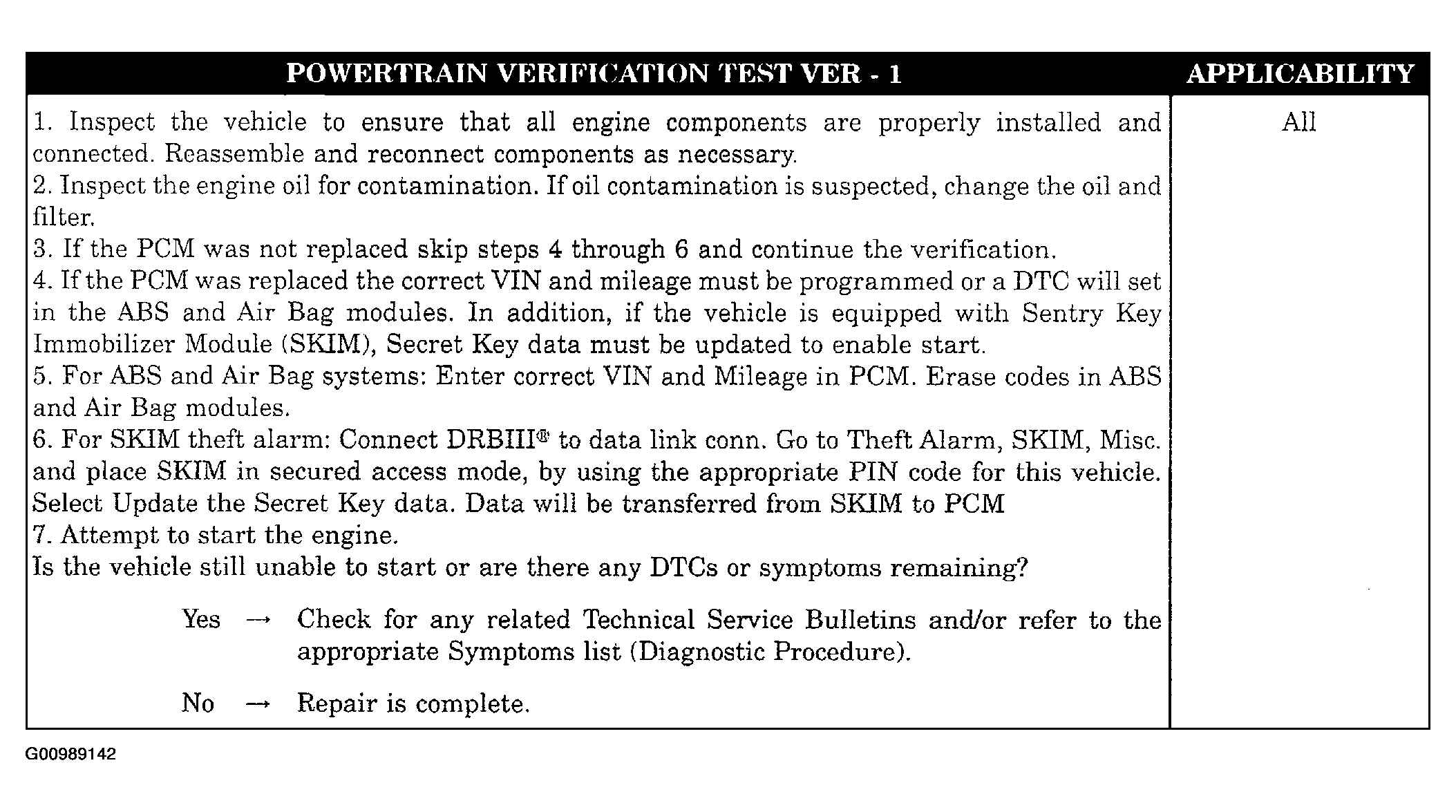

Fig 1: Identifying Powertrain Verification Test VER 1
Courtesy of DAIMLERCHRYSLER CORP.

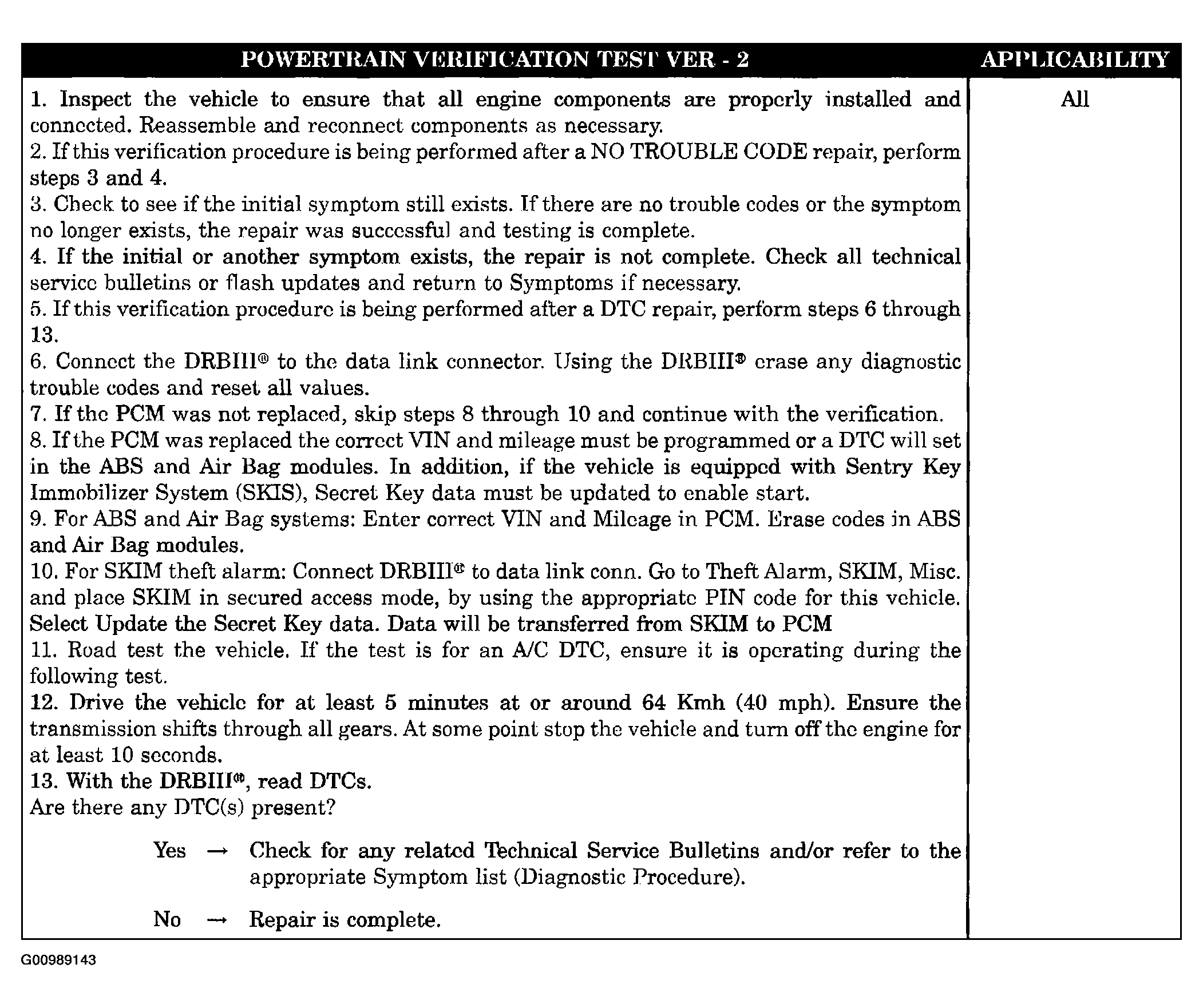

Fig 2: Identifying Powertrain Verification Test VER 2
Courtesy of DAIMLERCHRYSLER CORP.

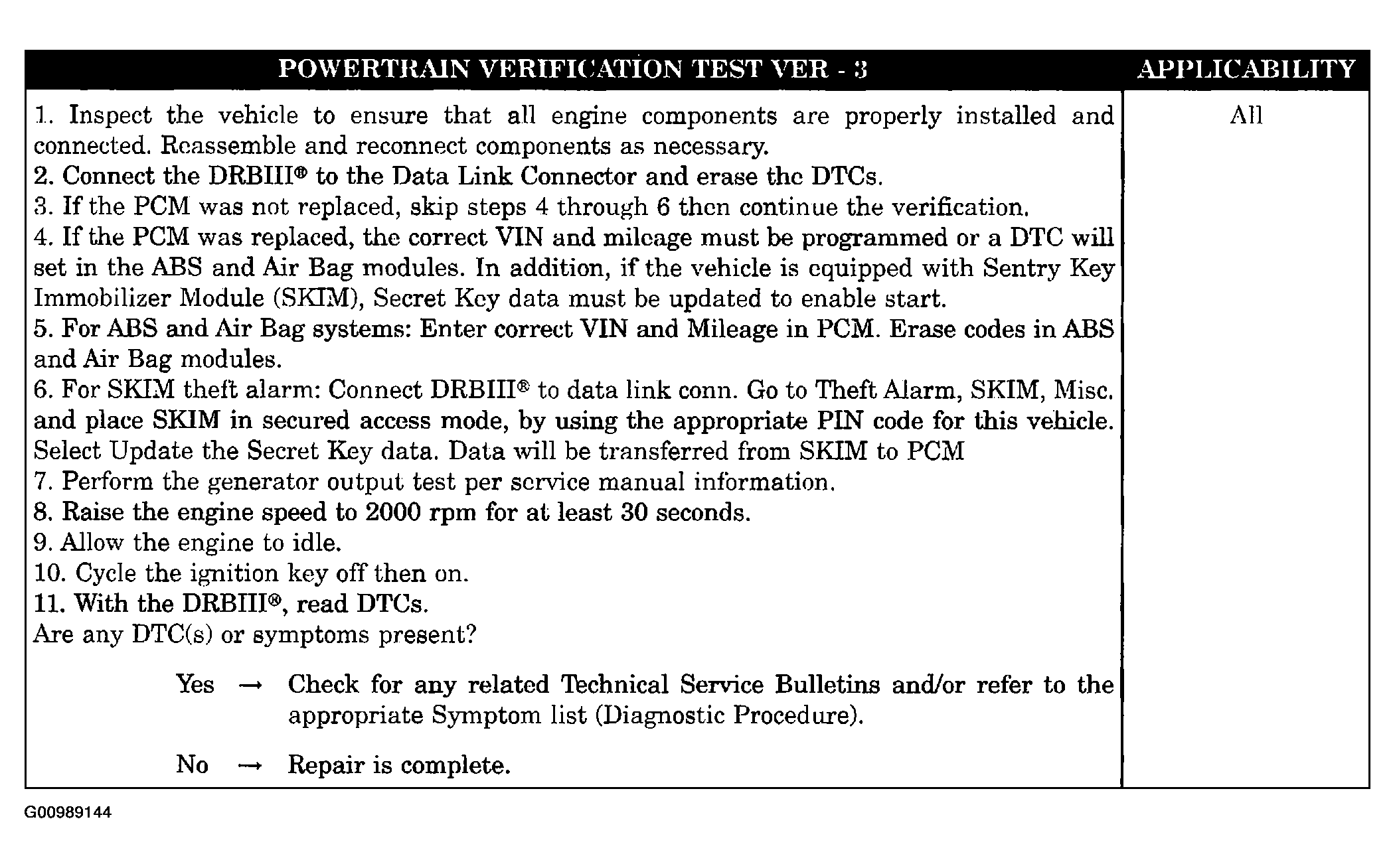

Fig 3: Identifying Powertrain Verification Test VER 3
Courtesy of DAIMLERCHRYSLER CORP.

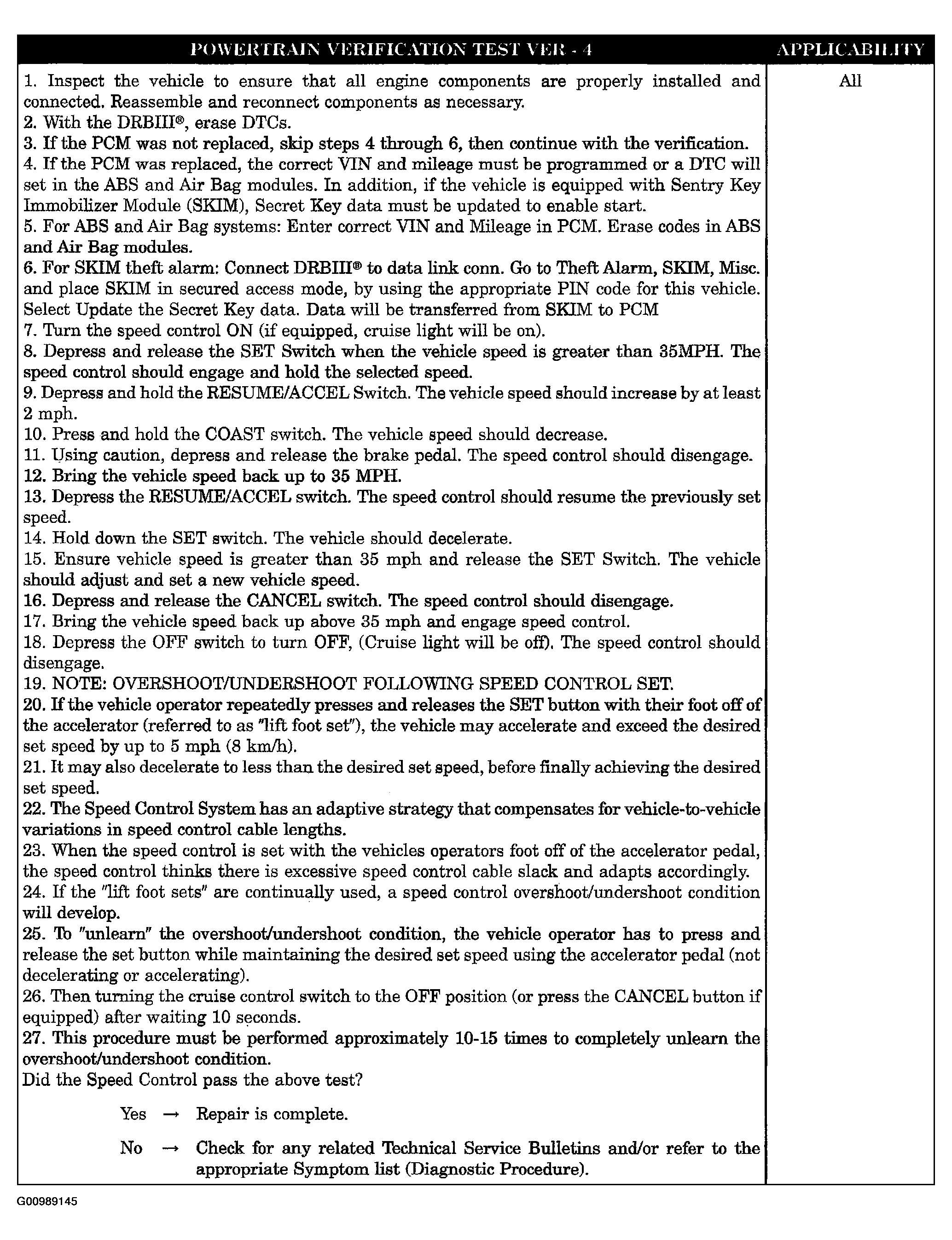

Fig 4: Identifying Powertrain Verification Test VER 4
Courtesy of DAIMLERCHRYSLER CORP.

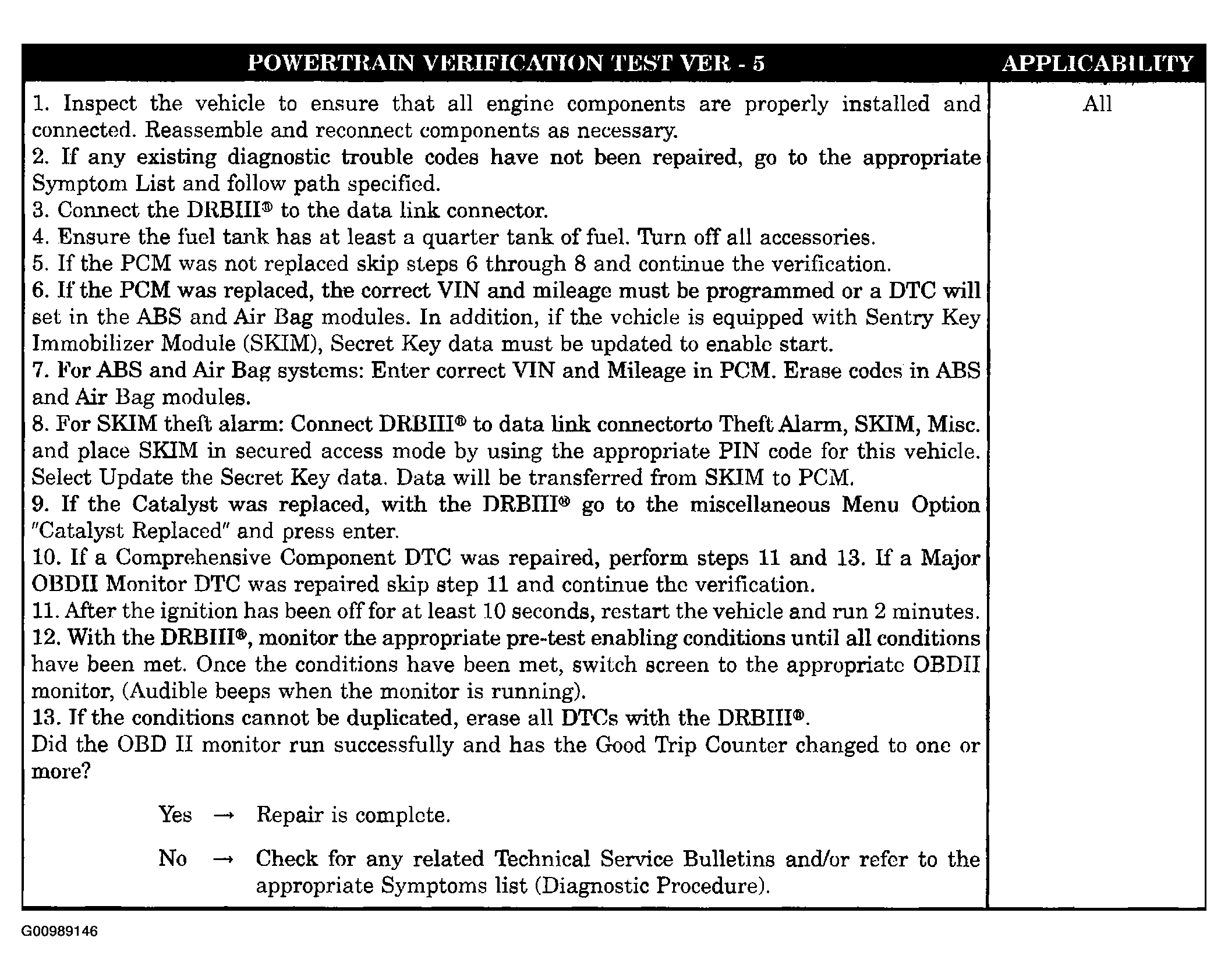

Fig 5: Identifying Powertrain Verification Test VER 5
Courtesy of DAIMLERCHRYSLER CORP.

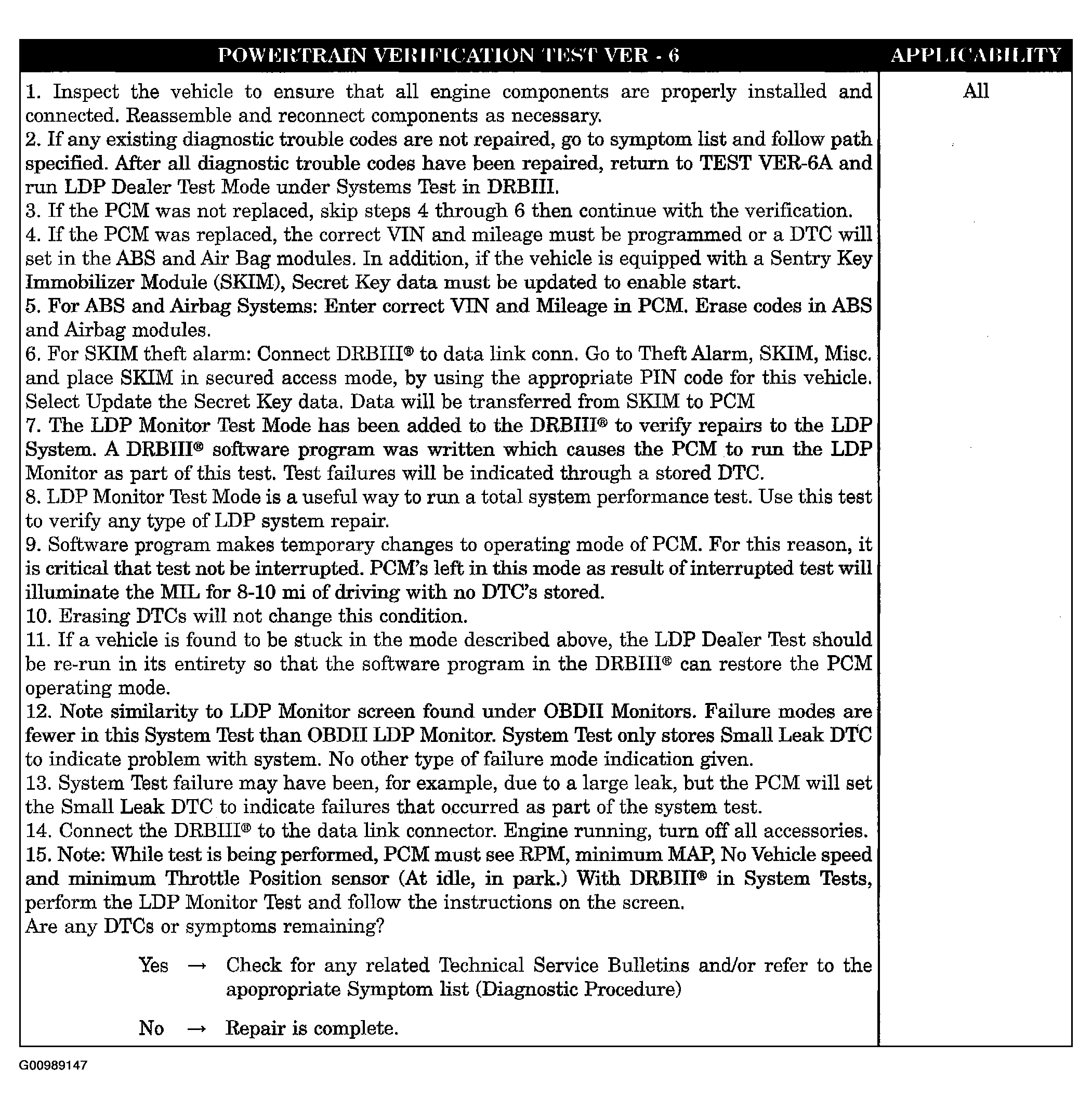

Fig 6: Identifying Powertrain Verification Test VER 6
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
