Verification Tests: Transmission

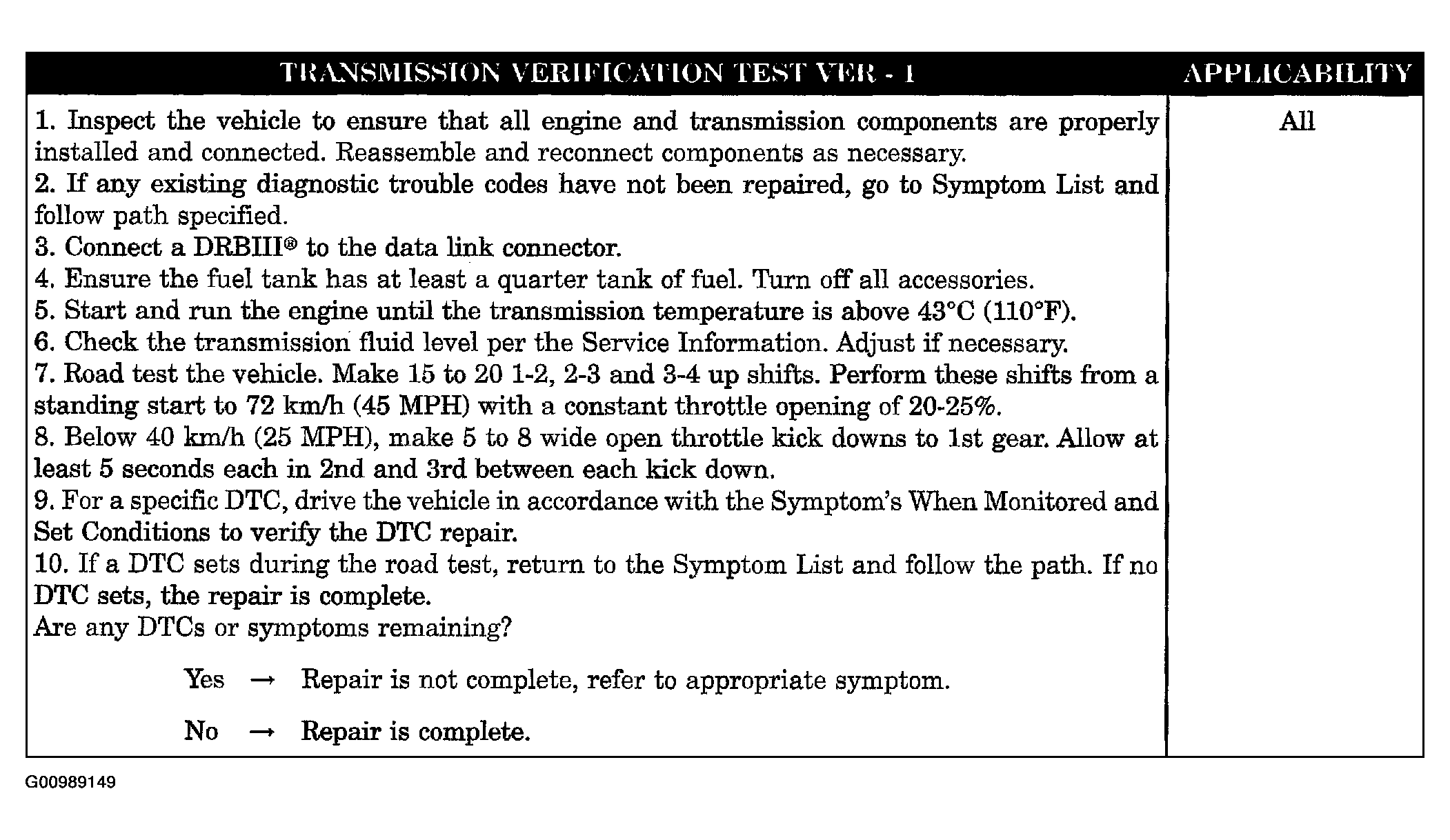

Fig 1: Identifying Transmission Verification Test VER 1
G00989149Courtesy of DAIMLERCHRYSLER CORP.
