Right Front Door Ajar Circuit Shorted to Ground

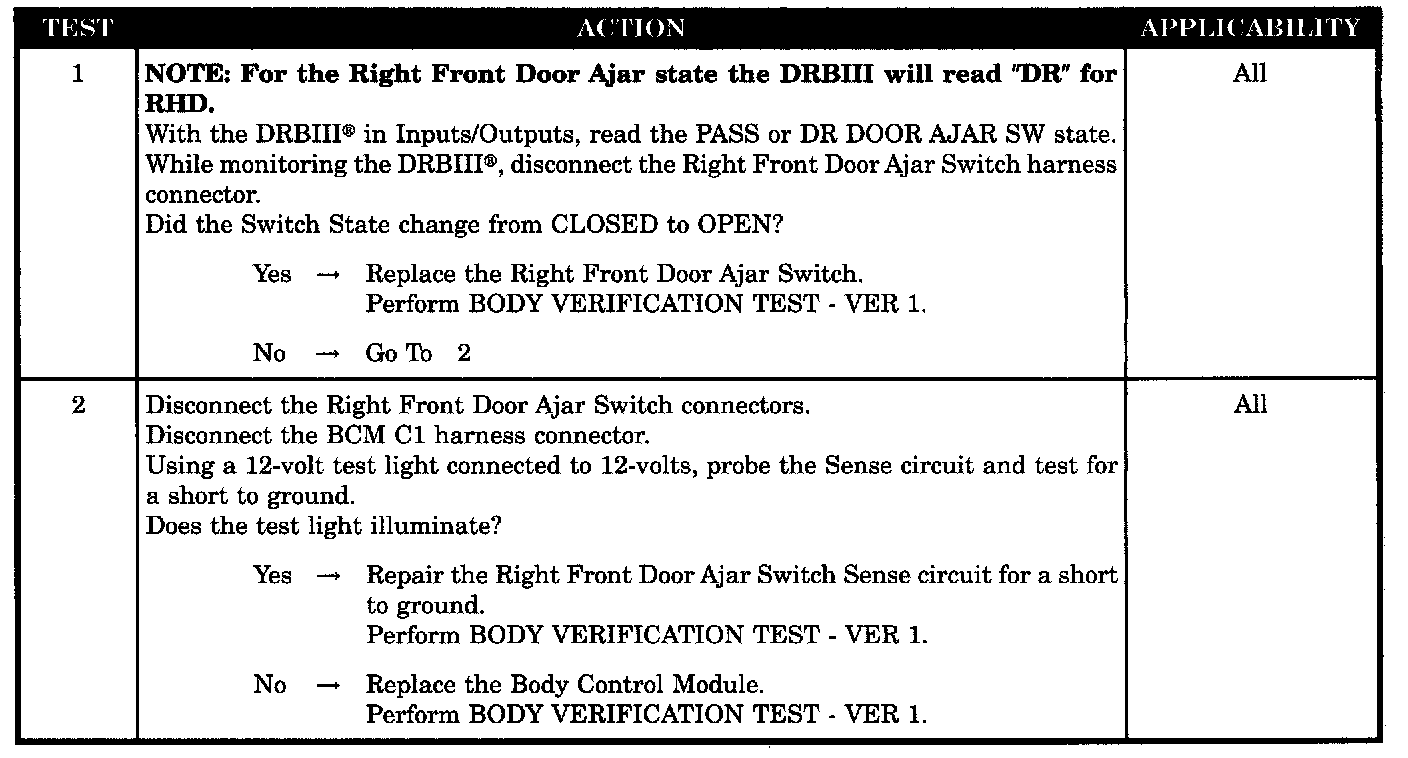

Test 1 - 2:






SYMPTOM
RIGHT FRONT DOOR AJAR CIRCUIT SHORTED TO GROUND

POSSIBLE CAUSES
- Right front door ajar switch shorted to ground
- Right front door ajar switch sense circuit shorted to ground
- Body control module - internal malfunction
