Tailgate Ajar Circuit Shorted to Ground

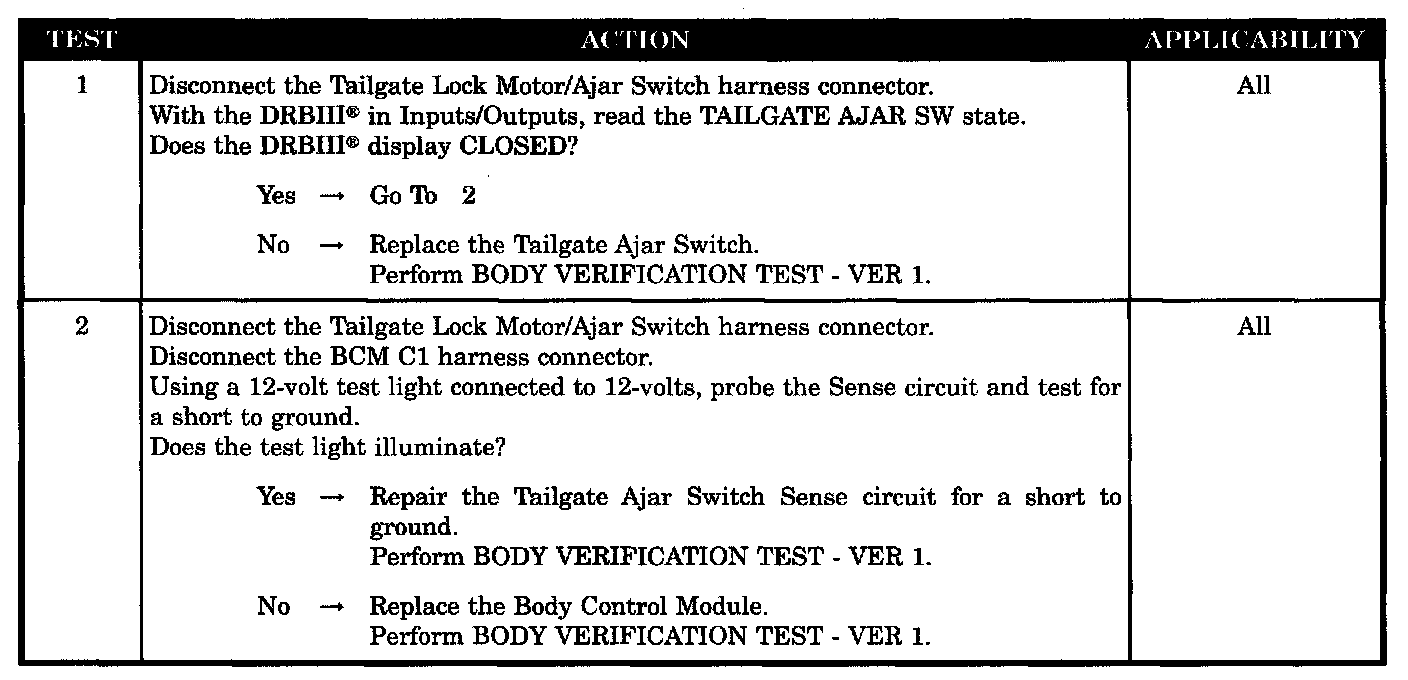

Test 1 - 2:






SYMPTOM
TAILGATE AJAR CIRCUIT SHORTED TO GROUND

POSSIBLE CAUSES
- Tailgate ajar switch shorted to ground
- Tailgate ajar switch sense circuit shorted to ground
- Body control module - internal malfunction
