All Doors Fail to Lock

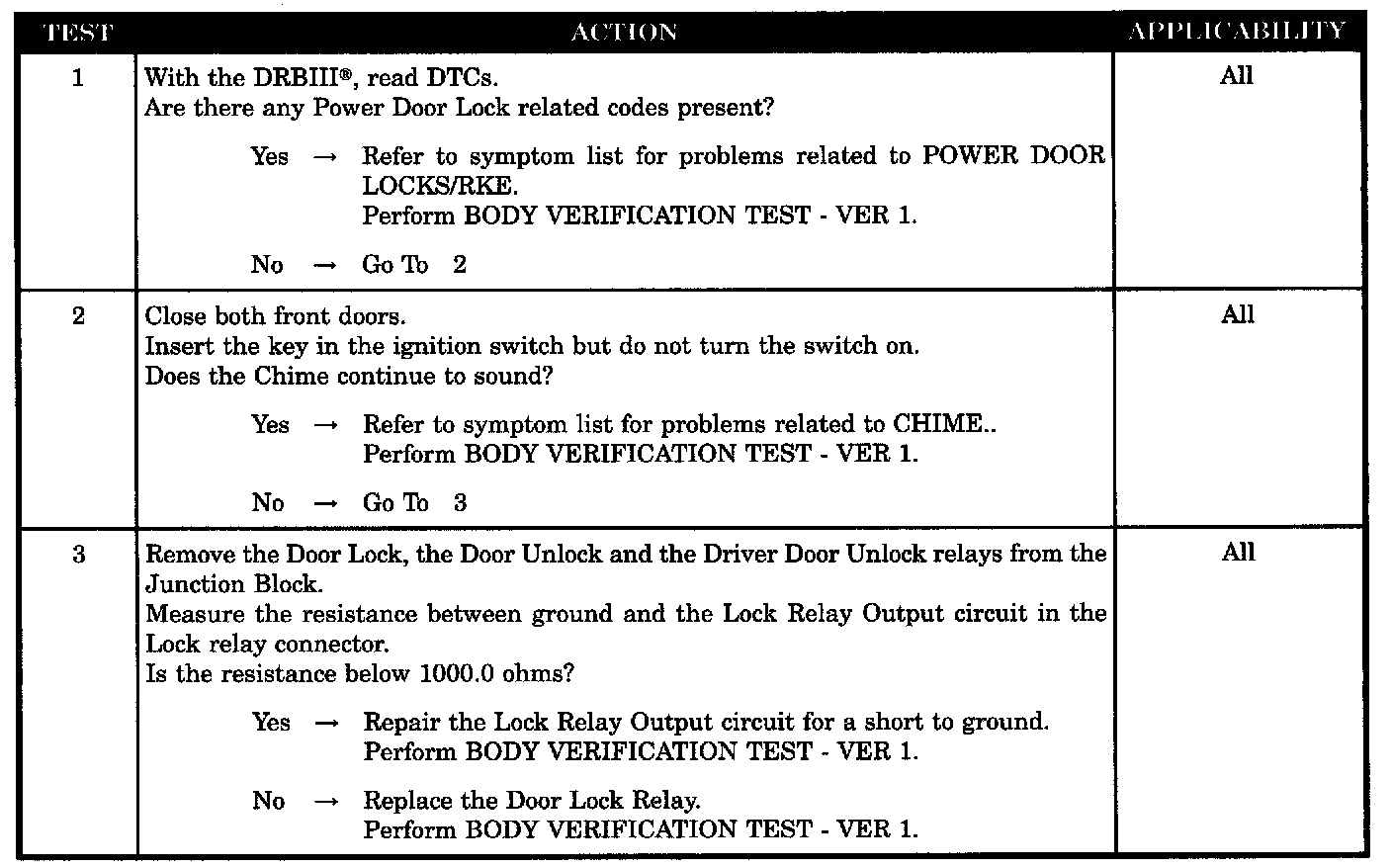

Test 1 - 3:






SYMPTOM
ALL DOORS FAIL TO LOCK

POSSIBLE. CAUSES
- DTC's present
- Key-in ignition switch shorted
- Door lock relay output circuit short to ground
- Door lock relay
