All Passenger Doors Fail to Lock and Unlock

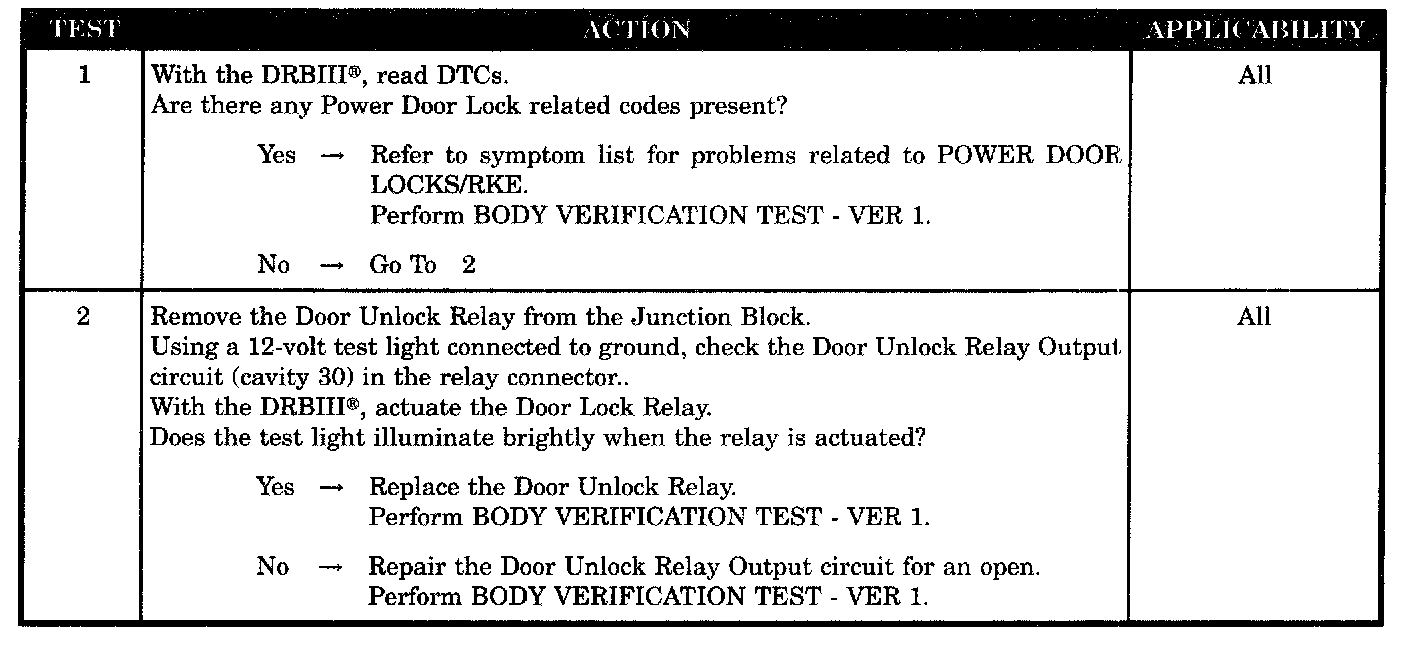

Test 1 - 2:






SYMPTOM
ALL PASSENGER DOORS FAIL TO LOCK AND UNLOCK

POSSIBLE CAUSES
- DTC's present
- Door unlock relay
- Output circuit open
- Door unlock relay
