Flip-Up Glass Release Inoperative

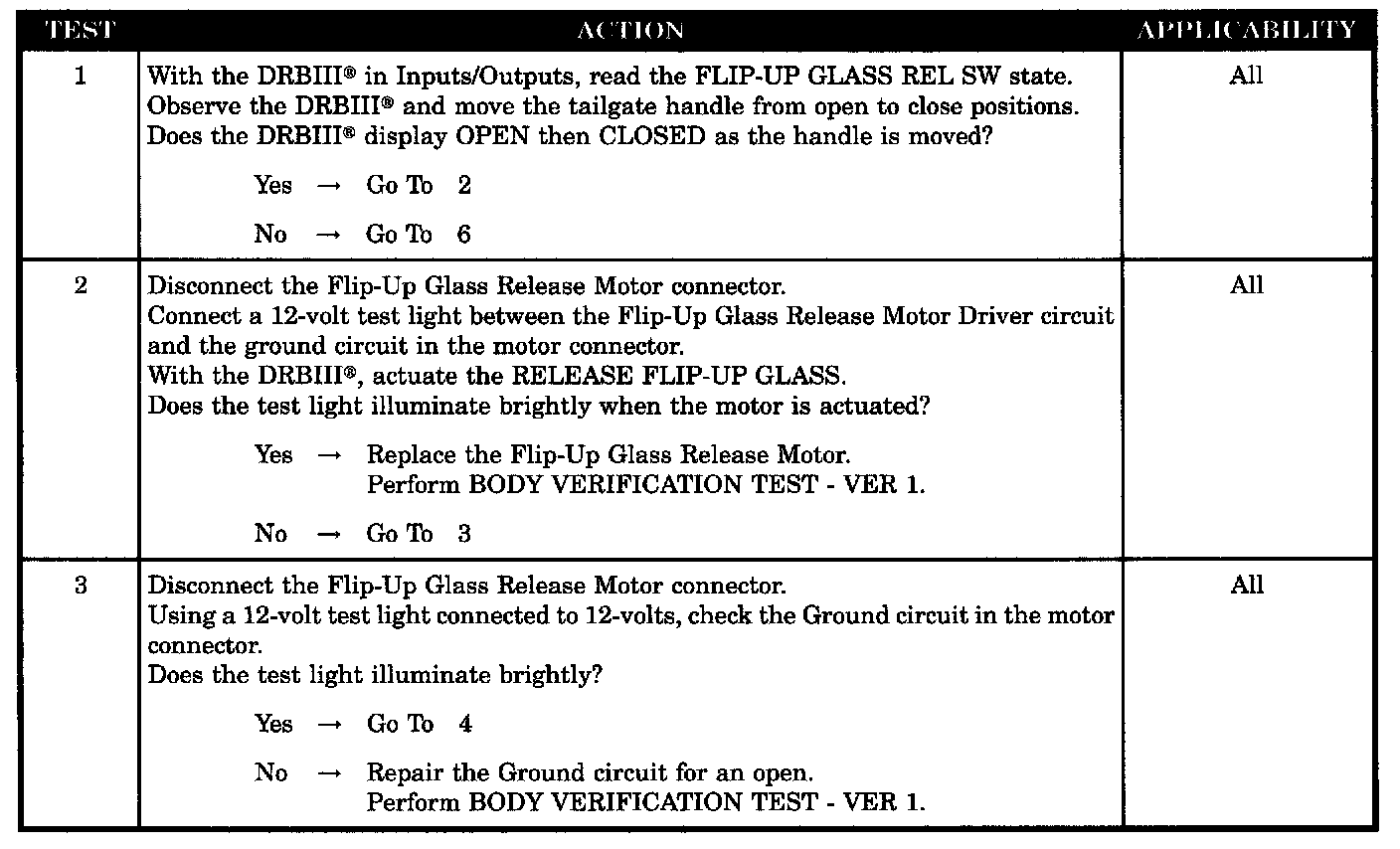

Test 1 - 3:

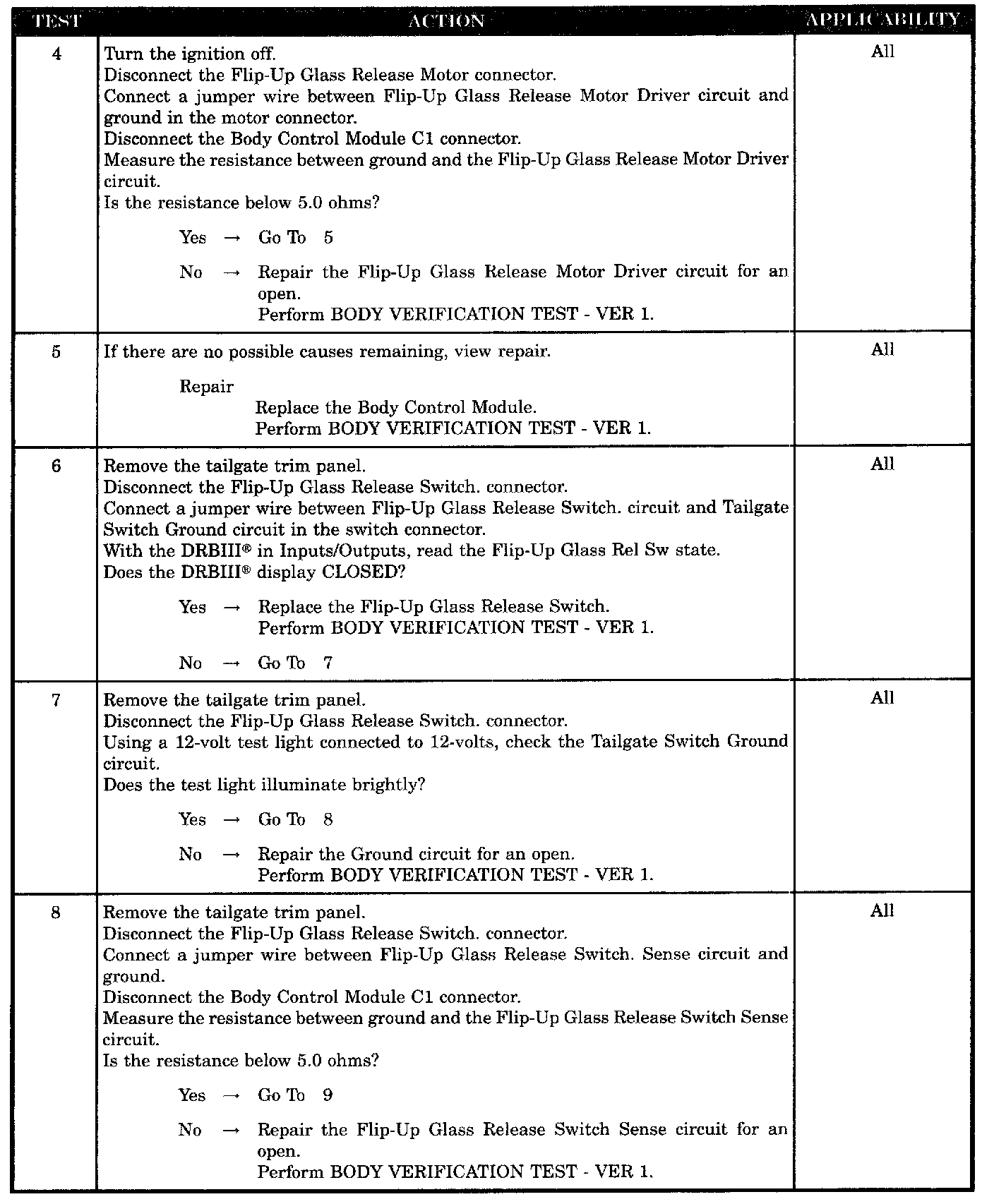

Test 4 - 8:

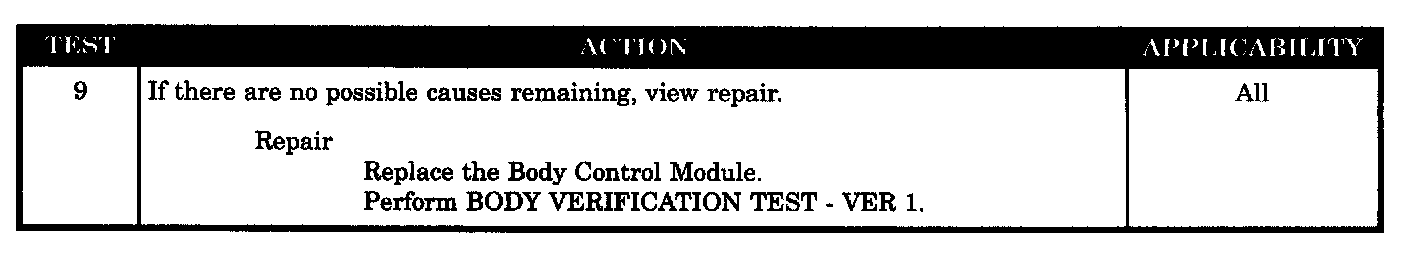

Test 9:

SYMPTOM
FLIP-UP GLASS RELEASE INOPERATIVE

POSSIBLE CAUSES
- Flip-up glass release motor
- Flip-up glass release switch
- Ground circuit open
- Tailgate switch ground
- Flip-up glass release motor driver wire open
- Flip-up glass release switch sense open
- Body control module - flip-up glass release motor driver open
- Body control module - flip-up glass release switch sense open
